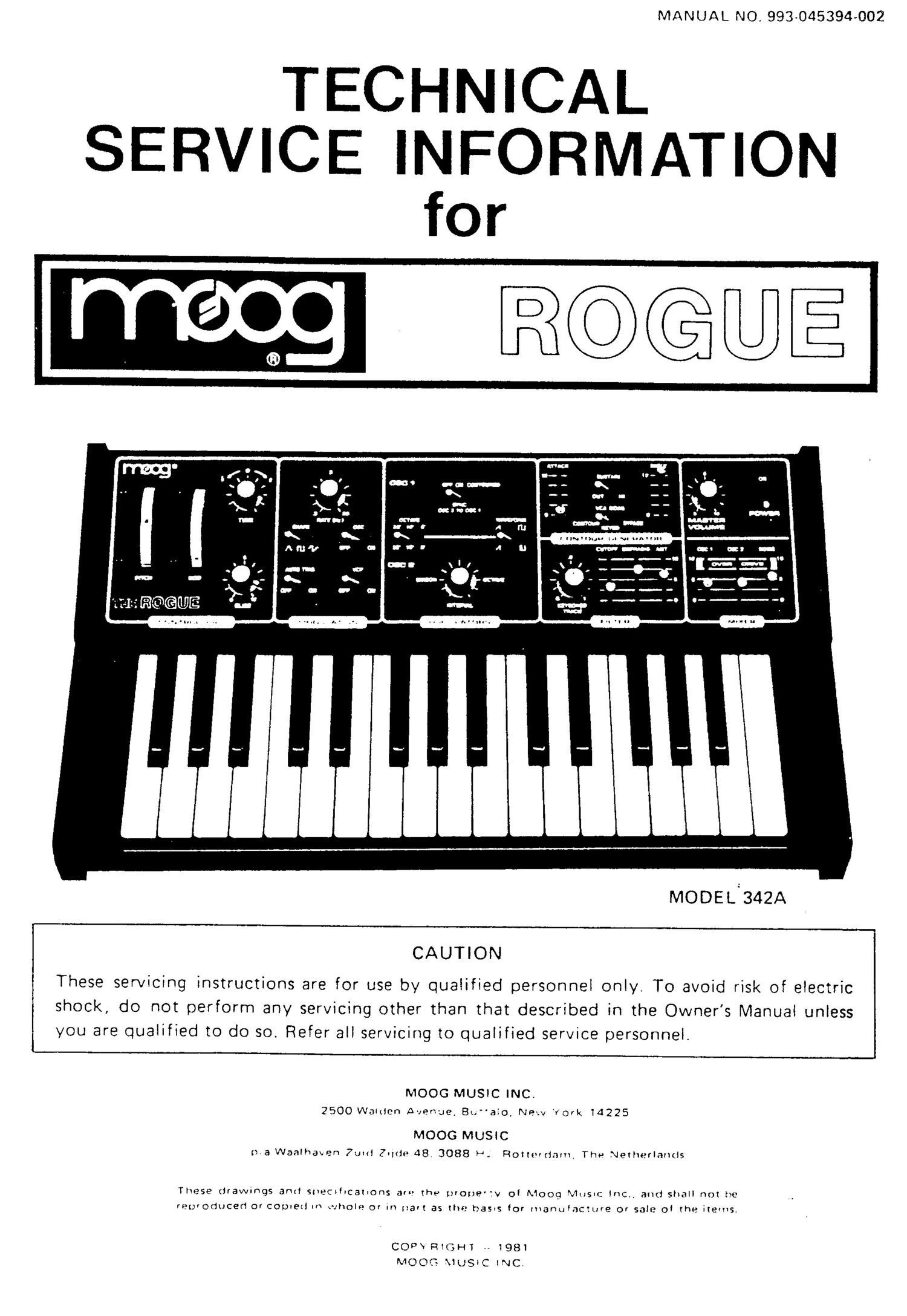

Page 1

MAN UA L NO. 993-0453944302

TECHNICAL
SERVICE INFORMATION

"~",\J.- t.| «u unvnn

MODE L342A

CAUTION

I These servicing instructions are for use by qualified personnel only. To avoid risk of electric
I shock, do not perform any servicing other than that described in the Owner's Manual unless
I you are qualified to do so. Refer all servicing to qualified service personnel.

.- _- .-

-- _- I _-

MOOG MUSIC INC.
2500 Walden Avenue. Bu-aio, New York 141225

MOOG MUSIC
n-a Waalhaver 7u1tiZiide 48. 3088 H; Rotterdam, The. Netherlands

These drawings and svecmcations are the proue'tv of Moog Mus: lnc., and shall not he
FQD'OdUCBd or copied In whole or in part as the IDaSS for manufacture or sale of the items.

COFYFITGH'T --1981
M006 MUSlC mic.

Page 2

PRINTED ClRCU/TBOARD ASSEMBL Y SELECTED REPLACEMENT PARTS LIST (Continued)

REF DESIG DESCRIPTION PART NO.

C7, C14, C24,

C39, C40 Capacitor, Alum. Elect., 10u,fd, 25V ............................ 945-044465-003
C13, C24 ' Capacitor, Low Leakage, Alum. Elect., 6.8ufd, 16V .................. 945-045049-001
C28 Capacitor, Alum. Elect., 220ufd, 6.3V ............................ 945-040209-003
C37, C38 Capacitor, Alum. Elect., 1000ufd, 35V .......................... 945-0410209011
R13 Resistor, Rotary, Audio, 1 Meg ................................ 925.045012-004

R16, R24, R72,
R97, R139 Resistor, Carbon Trim, Vertical Mount, 10K ........................ 925-0115364001
R43 Resistor, Rotary, Rev. Audio, 1 Meg ............................ 925-045012-005
R48, R54 Resistor, Cermet Trim, Vertical Mount, 5009 ...................... 925042526006
R155 Resistor, Cermet Trim, Vertical Mount, 100K ...................... 925-042526-005
R51, R58 Resistor, Cermet Trim, Vertical Mount, 10K ........................ 925-042526-003
R53, R56 Resistor, 1 Watt +/- 1%, Temp. Comp., 1000 ...................... 924-040183-002
R66, R68, R120 Resistor, Slide, Linear, 10K .................................. 925-045013-001
R70, R86 Resistor, Rotary, Linear, 10K ................................ 925-045012-001
R103, R104 Resistor, Slide, Audio, 1 Meg .................................. 925045013002
R116, R118 Resistor, Slide, Linear, 10K .................................. 925-045013-001
R129 Resistor, Slide, Audio, 50K .................................. 925045013004
R148 Resistor, Rotary, Audio, 10K .................................. 925-045012-003
Socket, Component Lead .................................... 906-045374-001
Socket, 7 Pin, SIL ........................................ 906-040307-007
Heat Sink .............................................. 967-040935-001
J1, J2 Jack, Phone, 2 Circuit, Switchcraft 111 .......................... 910-041306004
J3 Jack, Phone, lns. 2 Circuit, Switchcraft N-112 ...................... 910-041306-007
J4 Jack, Phone, Ins. 2 Circuit, Switchcraf't N11 ........................ 910-041306-006
J5 Jack, Miniature .......................................... 910-045371-001

SW1, SW2, SW5,
SW7, SW8, SW10 Switch, Lever, 2P2T ........................................ 960.045214-001

SW3, SW4, SW6,
SW9 Switch, Lever, 2P3T ........................................ 960-045216-001
U1 1C, Dual Operational Amplifier, Special, LF353 ...................... 991-042908-002

U2, U4, U5,

U12, U17 lC, Dual Operational Amplifier, 4558 ............................ 991-041146-001
U3 10, Noise Generator, 5837 .................................... 991-042016-001
U6, U15 IC, Dual Operational Amplifier, LF353 .......................... 991-042908001
U7, U14 lC, Trans Array, 3046 ...................................... 991-041104-001
U8, U10 lC, Operational Amplifier, LF351 .............................. 991-042739001
U9, U11 lC, Dual Voltage Comparator, LM393 ............................ 991-042388001
U13 1C, CMOS, Dual Complementary Pair plus Inverter, 4007 ............... 991-041086-001
U16 lC, Operational Amplifier, 3080A .............................. 9910041089-001
U18 10, +12 Volt Regulator, 78M12 ................................ 991-041112-002
U19 lC, ~12 Volt Regulator, 79M12 ................................ 991044316001
01, 014, 016 Transistor, NPN, 2N3904 .................................... 991-041051-002
02, 05, 06, 015 Transistor, PNP, 2N3906 .................................... 991-041052002

O3, O4 Transistor, N-Channel FET, U3078 .............................. 991-042659-001
