Moog murf owner manual
This is the 28 pages manual for moog murf owner manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from moog murf owner manual (Ocr-read)

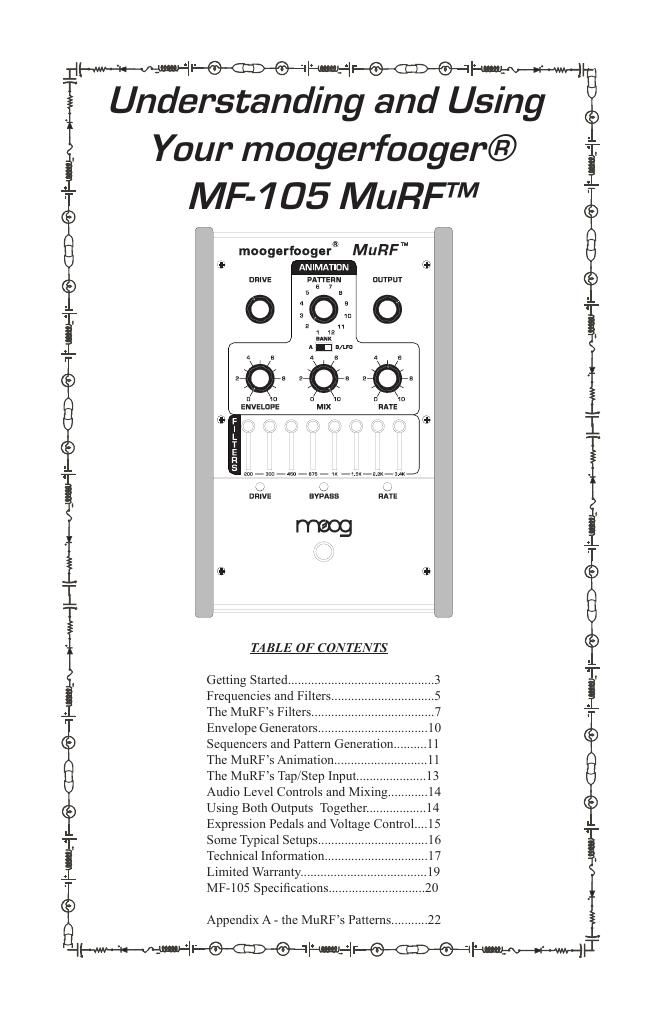

Page 1
Welcome to the world of moogerfooger® Analog Effects Modules! Your model MF-105 MuRF is a rugged, professional- quality instrument, designed to be equally at home on stage or in the studio. Its great sound and jaw-dropping effects come from the state-of-the-art analog circuitry, designed and built under Bob Moogs personal direction. Your MuRF is a direct descendent of the original Moog™ modular synthesizers and professional rack effects. It contains two basic functions: an 8-band array of resonant bandpass filters, and a pre-programmed Animation module that generates sequences of envelopes that modulate the levels of the 8 filters. Several of the performance parameters are voltage-controllable, which means that you can use expression pedals, MIDI-to-CV converter, or any other source of control voltages, such as other moogerfoogers, to play your MuRF. While you can use it on the floor as a conventional effects box, your MuRF is much more versatile and its sound quality is higher than the single fixed-function stomp boxes that youre probably accustomed to. The MuRF is an astoundingly versatile effects device, you will find it provides an incredible variety of effects. You will find that your MuRF is a deep musical resource and will become your creative companion as you explore its possibilities. The following pages will first tell you how to hook up your MuRF and set the panel controls for the basic setup. Next, well explain how the functions of your MuRF work. After that well go through the panel features and give you suggestions on how to use your MuRF in specific applications. At the end of this booklet youll find technical specifications, service and warranty information, information about Moog Music and diagrams of the MuRFs Animation patterns.
Page 2
GETTING STARTED Here are some simple instructions on how to quickly plug in and try out your MF-105. 1. Unpack your MF-105. Place it on a table while you become familiar with its features. 2. Check that the power adaptor has a nominal rating of +9 volts, providing at least 300 mA (milliamperes) of current and is also rated at your countrys standard power voltage (120 volts A.C. for the United States and Canada; 100 volts A.C. for Japan; and 220 volts A.C. for most other countries). Plug the power adaptors cord into the MF-105s +9V jack. Then plug the power adaptor itself into a power voltage receptacle. Note the MuRF uses a different power supply than other moogerfoogers, which is only rated at 200mA. Using a 200mA moogerfooger power supply may result in hum, distortion, and other less than desirable audio artifacts. Make sure to use the proper power supply. 3. Note that the BYPASS light is on. It will light up either red or green. Red indicates that the MF-105s effect is off-line (bypassed), while green indicates that the effect is on. Pressing the stomp switch will toggle the BYPASS light between red and green. For now, leave the BYPASS light on red. Refer to Figure 1 for steps 4. and 5. Figure 1 - Basic Connections to MuRF
