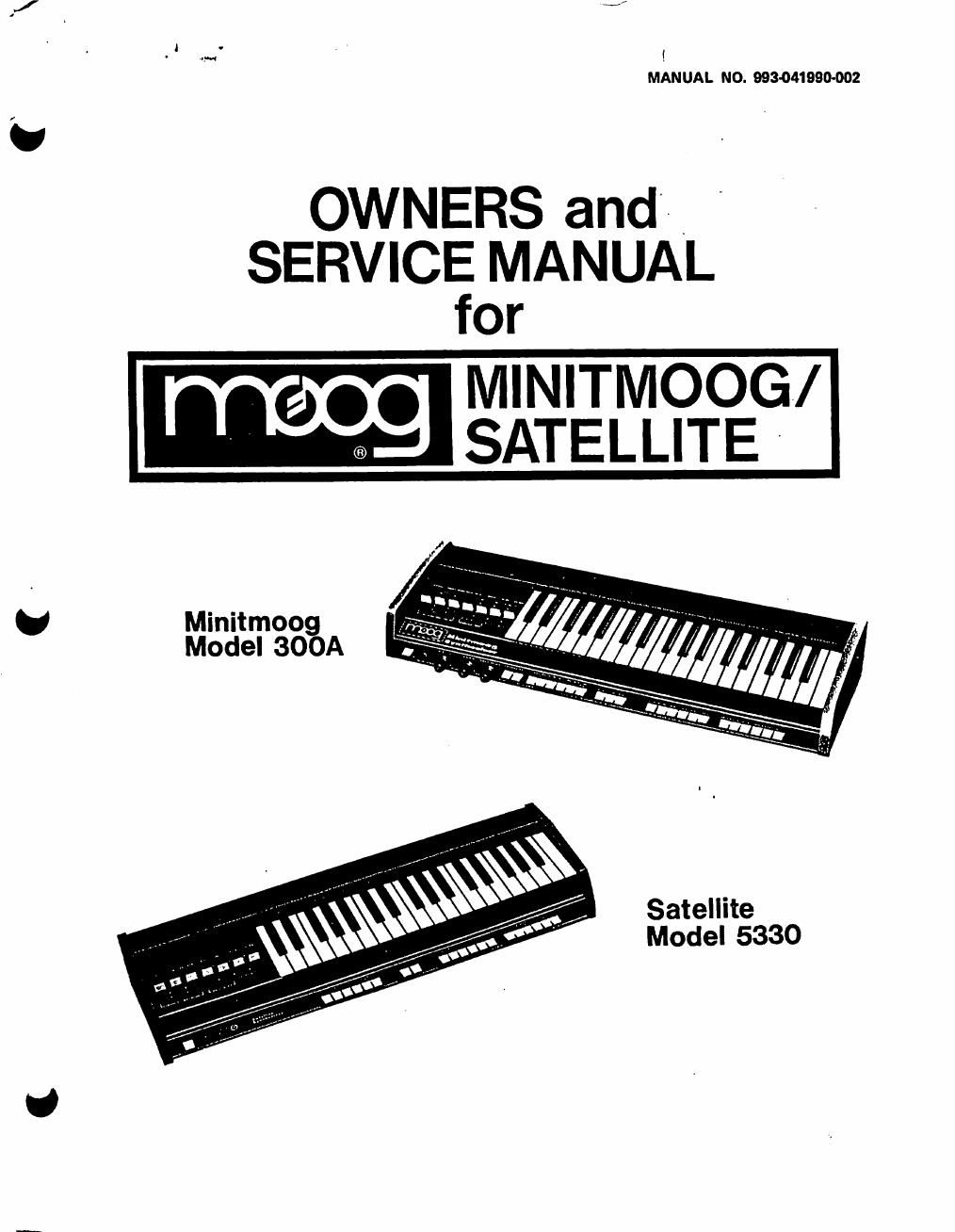

Moog minitmoog 300a satellite 5330 service manual
This is the 82 pages manual for moog minitmoog 300a satellite 5330 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from moog minitmoog 300a satellite 5330 service manual (Ocr-read)
Page 1
Introduction The owners portion of this manual, pages 1 through 11, provides introductory material to familiarize the owner with the features, specifications and initial set-up of the Minitmoog Synthesizer, Model 3Q0A, and the Satellite Synthesizer, Model 5330. The technical portion of this manual, pages 12 through 57, provides servicing,, replacement parts list and illustrations to enable a qualified technician to service and maintain the Minitmoog and Satellite Synthesizers. Index MINITMOOG SYNTHESIZER CONTENTS Controls Quick-Set Voice Tabs 2 Modulation, Oscillation and Touch Controls 3 Slide Control Panel 4 Accessories and Connections 10 Care of Your Synthesizer 11 Technical Sections 12 SATELLITE SYNTHESIZER PAGE CONTENTS PAGE Controls 5 Quick-Set Voice Tabs 6 Modulation 8 Slide Control Panel 9 Accessories and Connections 10 Care of Your Synthesizer 11 Technical Sections 12 THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF MOOG MUSIC INC. AND SHALL NOT BE REPRODUCED OR COPIED IN WHOLE OR IN PART AS THE BASIS FOR MANUFACTURE OR SALE OF THE ITEMS.
Page 2
Minitmoog Controls SLIDE CONTROLS MODULATION GLIDE VOLUME PANEL CONTROLS CONTROL CONTROL SOLO KEYBOARD SYNC, GLIDE SUSTAIN TABS POWER OFF-ON SWITCH INDICATOR LIGHT QUICK-SET VOICING TABS FILTER CONTROLS TOUCH SENSE MODULATION TABS Before proceeding with Operation and Adjustment of your unit, please refer to page 10 for Connection Instructions. LEVEL ADJUST M u . e „ This rotary control (located on the back of the unit) sets the overall output level, or volume, of the unit. Smaller changes in volume may be made with the VOLUME control on the Slide Control Panel. This rotary control (located on the back of the unit) provides a range of tuning which extends more than one-half octave. This flexibility can be used to tune your MOOG MINITMOOG to other instruments, transpose to different keys, or even provide a glissando effect. POWER AND INDICATOR LIGHT . u . An ON-OFF power switch is conveniently located on the front panel, with a red light which indicates when the power is ON. OCTAVES t . . t With neither tab depressed, your MOOG MINITMOOG will play in its highest pitch level. Depress tab 1 , and what ever you play on the keyboard will be one octave lower. Raise tab "1" and depress tab "2", and the keyboard pitch level is lowered another octave. Depress both tabs and the pitch level is lowered still a third octave. Because of the electronic tailoring of the sounds to the requirements of each pitch level, you will find that the effectiveness of every sound seems to change magically as you change from octave to octave. Try all sound effects in all four pitch levels. SUSTAIN . . . This "Quick-Set" tab allows the sound of a note to "linger" after the key is released. It provides interesting variations to the special voice settings described in this Manual.
