Moog micromoog multimoog schematics

This is the 8 pages manual for moog micromoog multimoog schematics.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 8

Extracted text from moog micromoog multimoog schematics (Ocr-read)

Page 1

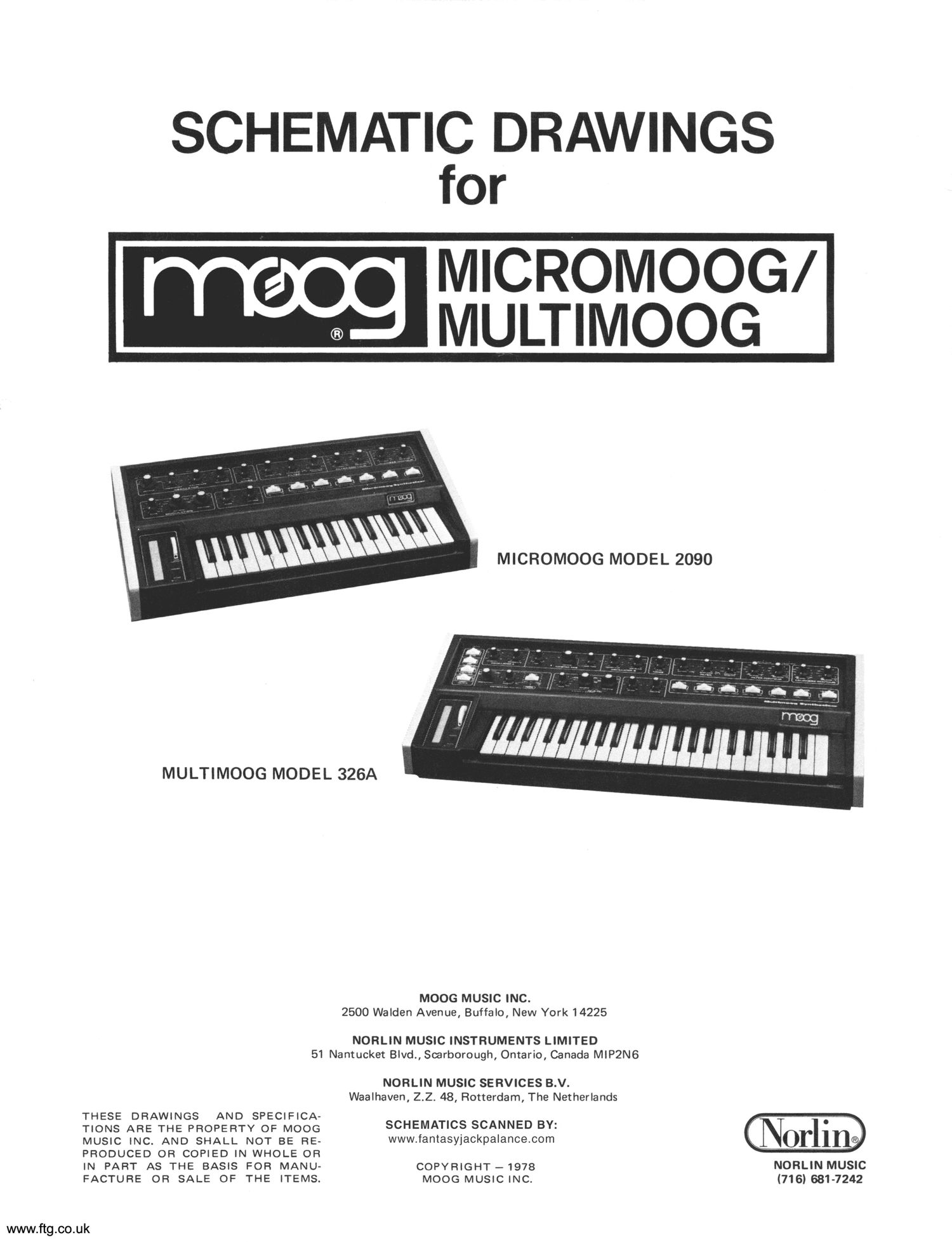

SCHEMATI? DRAWINGS
OI

MICROMOOG/
MULTIMOOG

MICROMOOG MODEL 2090

MULTIMOOG MODEL 326A

MOOG MUSIC INC.
2500 Walden Avenue, Buffalo, New York 14225

NORLIN MUSIC INSTRUMENTS LIMITED
51 Nantucket Blvd., Scarborough, Ontario, Canada MIP2N6

NORLIN MUSIC SERVICES B.V.
Waalhaven, 2.2. 48, Rotterdam, The Netherlands

THESE DRAWINGS AND SPECIFICA-
TIONs ARE THE PROPERTY OF MOOG SCHEMATICS SCANNED BY:

MUSIC INC. AND SHALL NOT BE RE- WWW-fantaSYIaCkPalance-C0m
PRODUCED OR COPIED IN WHOLE OR

IN PART AS THE BASIS FOR MANU-
