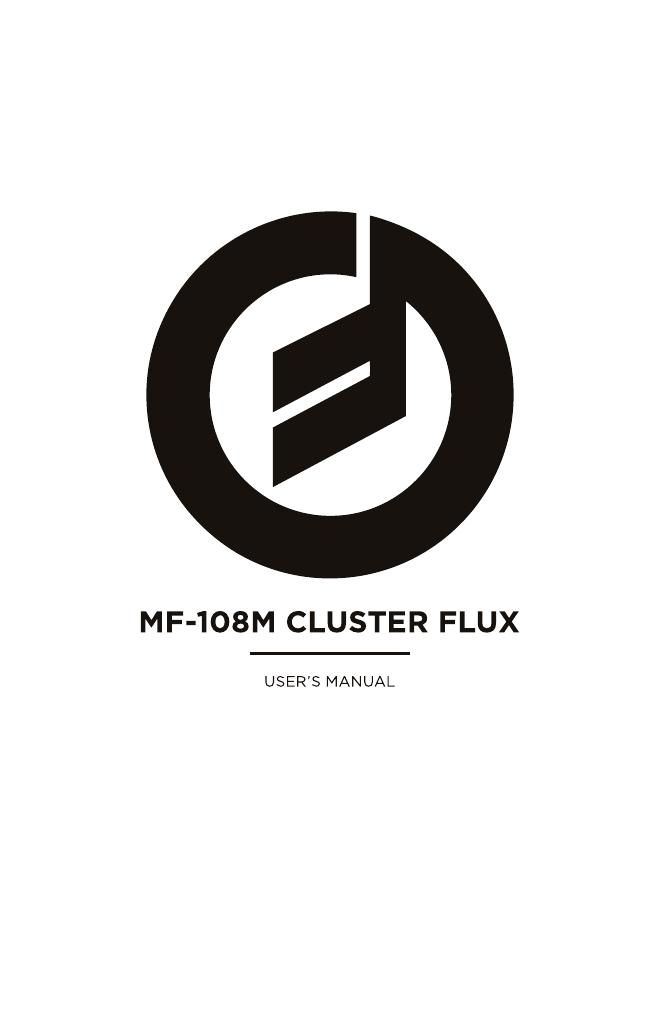

Page 1

Page 2

WELCOME TO THE WORLD OF MOOGERFOOGER® ANALOG EFFECTS MODULES! Your MF-108M Cluster Flux is a rugged, professional-quality instrument, designed to be at home on stage or in the studio. Its great sound and jaw- dropping effects come from state-of-the-art analog circuitry, designed and handcrafted by our team at MOOG Music in Asheville, North Carolina. The MF-108M is rooted in the analog wizardry of Bob Moogs mooger - fooger designs. It is a direct descendent of the original Moog® modular synthesizers and professional rack effects. Your Cluster Flux offers two basic functions: A dual-range Bucket Brigade Device (BBD) Delay Line designed for very short delay times and a multi- waveform Low Frequency Oscillator (LFO) capable of modulating the Delay Line for a variety of effects including Chorus, Flanging and Vibrato. Several of the performance parameters are voltage-controllable. This means you can use expression pedals, a MIDI-to-CV converter or any other source of control voltage, such as other moogerfoogers to play your MF-108M. In addition, the front panel rotary controls and switches can be controlled through the use of MIDI and the LFO can be synced to a MIDI Clock. While you can use it on the floor like a conventional effects box, your Cluster Flux is much more versatile. Its sound quality is higher than most fixed-function stomp boxes you may be accustomed to. You will find that your Cluster Flux is a deep electronic musical resource that offers a very large range of analog sound processing possibilities.
