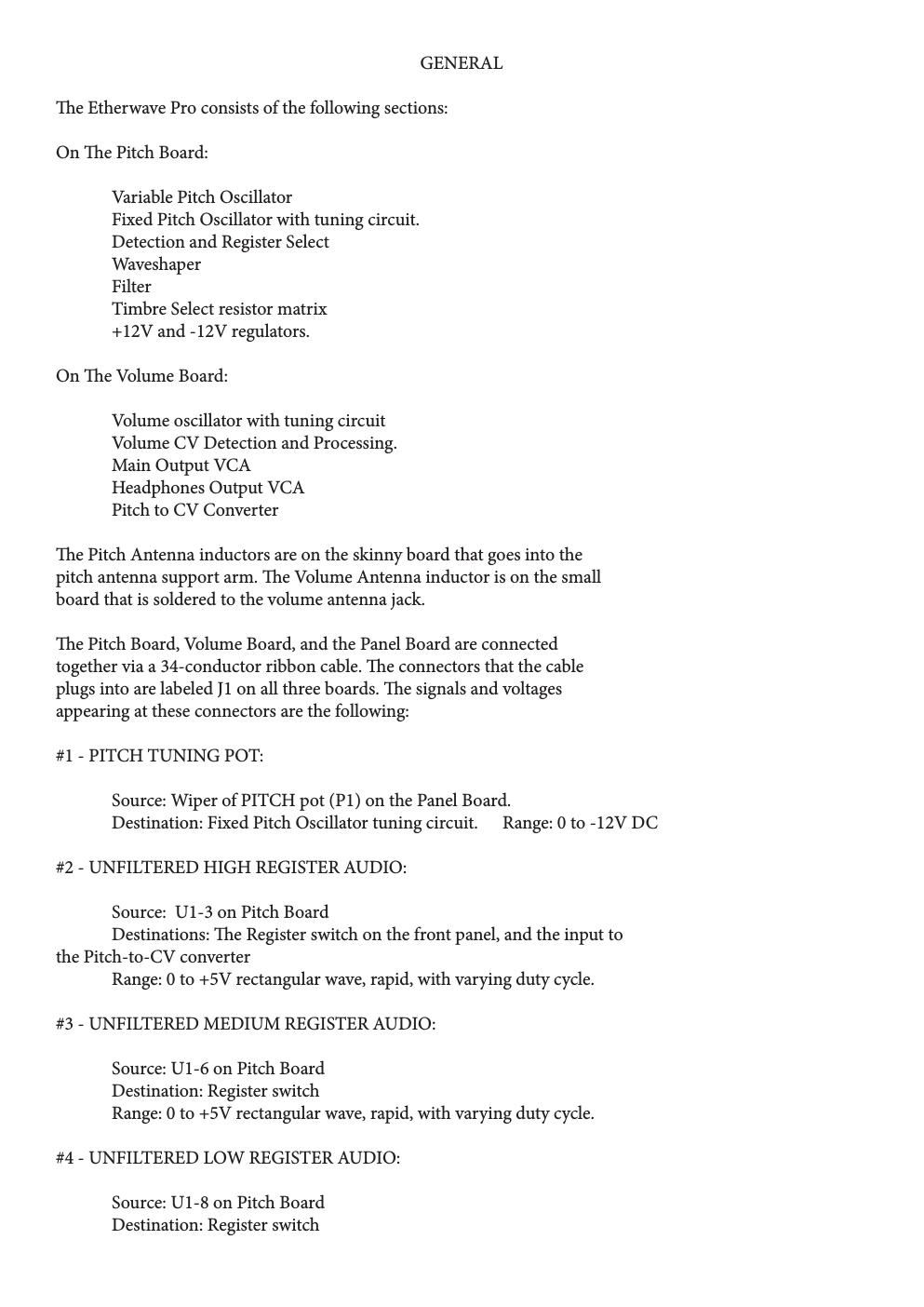

Range: 0 to +5V rectangular wave, rapid, with varying duty cycle. #5 - REGISTER OUT: Source: Wiper of Register Rotary Switch (SW1) on Panel Board Destination: Signal Input of Waveshaping circuit Range: Same as #2 - #4. #6 - WAVEFORM POT: Source: Wiper of WAVEFORM pot (P5) on Panel Board. Destination: Biasing input of Waveshaping circuit. Range: 0 to as high as +4.5V, depending on magnitude of Pitch CV. #7 - BRIGHTNESS POT: Source: Wiper of BRIGHTNESS pot (P4) on Panel Board. Destination: Gain Control input of waveshaping circuit. Range: 0 to +5V #8 - FILTER POT: Source Wiper of FILTER pot (P3 on Panel Board. Destination: Control input of filter circuit. Range: 0. to +5V #9 - TUNER JACK: Source: Filtered High Register Audio (on Volume Board) Destination: Tuner jack. Range: 1V peak-to-peak #10, #18, #26, #28, #32, #34 - GROUND: System ground. #11, #12, #13 - TIMBRE SELECT BITS: Source: TIMBRE SELECT rotary switch (SW2) on panel board. Destination: Control inputs of U11, U12, and U13 on Pitch Board. Range: Either +5V (through 100K resistors) or ground. #14 PITCH ANTENNA RESPONSE: Source: Wiper of Pitch Antenna Response pot on front panel. Destination: Gain Control input of U4-A on Panel Board (provides variable coupling between oscillators) Range: 0 to -12V DC #15 TOP OF WAVE POT: Source: Emitter of Q14 on Pitch Board Destinations: Top of Waveform Pot; R50, 51, 52, 54, and 55 on Pitch
Page 2
Board Range about _2.8 V to +4.5V, depending on magnitude of Pitch CV #16 - VOLUME TUNING POT: Source: Wiper of VOLUME pot (P2) on Panel Board Destination: Volume Oscillator tuning circuit Range: 0 to -12V DC #17 - VOLUME ANTENNA RESPONSE: Source: Wiper of Volume Antenna Response pot on front panel. Destination: Volume CV Processor. Range: 0 to +5V #19 - HEDADPHONES OUT: Source: U6-12 (Headphones VCA) on Volume Board Destination: Inputs of U1 on Panel Board Range: 10V P-P Audio #20 - HEADPHONES CV: Source: Wiper of Headphone Volume pot on front panel Destination: R25 on Volume Board Range: 0 to -12V DC #21 - VOLUME CV: Source: U1-7 (Output of Volume CV Processor) Destinations: Gain Control input of Audio Out VCA; Gain Control Input of Headphone Out CV; VOLUME CV jack; control input of filter. Range: -0.3 to +5.5; 0V = silence; +5.0V = maximum volume #22 - PITCH CV: Source: Output of Pitch-to-CV converter Destinations: PITCH CV jack; control input of filter; R58 on Pitch Board. Range: -3V to +4V; one volt per octave; 0V = 256 Hz (middle C) #23 - AUDIO TO VCAs: Source U9-9 on Pitch Board (Output of Filter) Destination: Audio inputs of Main Audio VCA and Headphone VCA Range: 4V Peak to Peak audio. #24 - AUDIO OUT GND: Source: Junction of R63 and R66 on Volume Board Destination: Ring Terminal of Audio Out jack. Range: close to 0V
