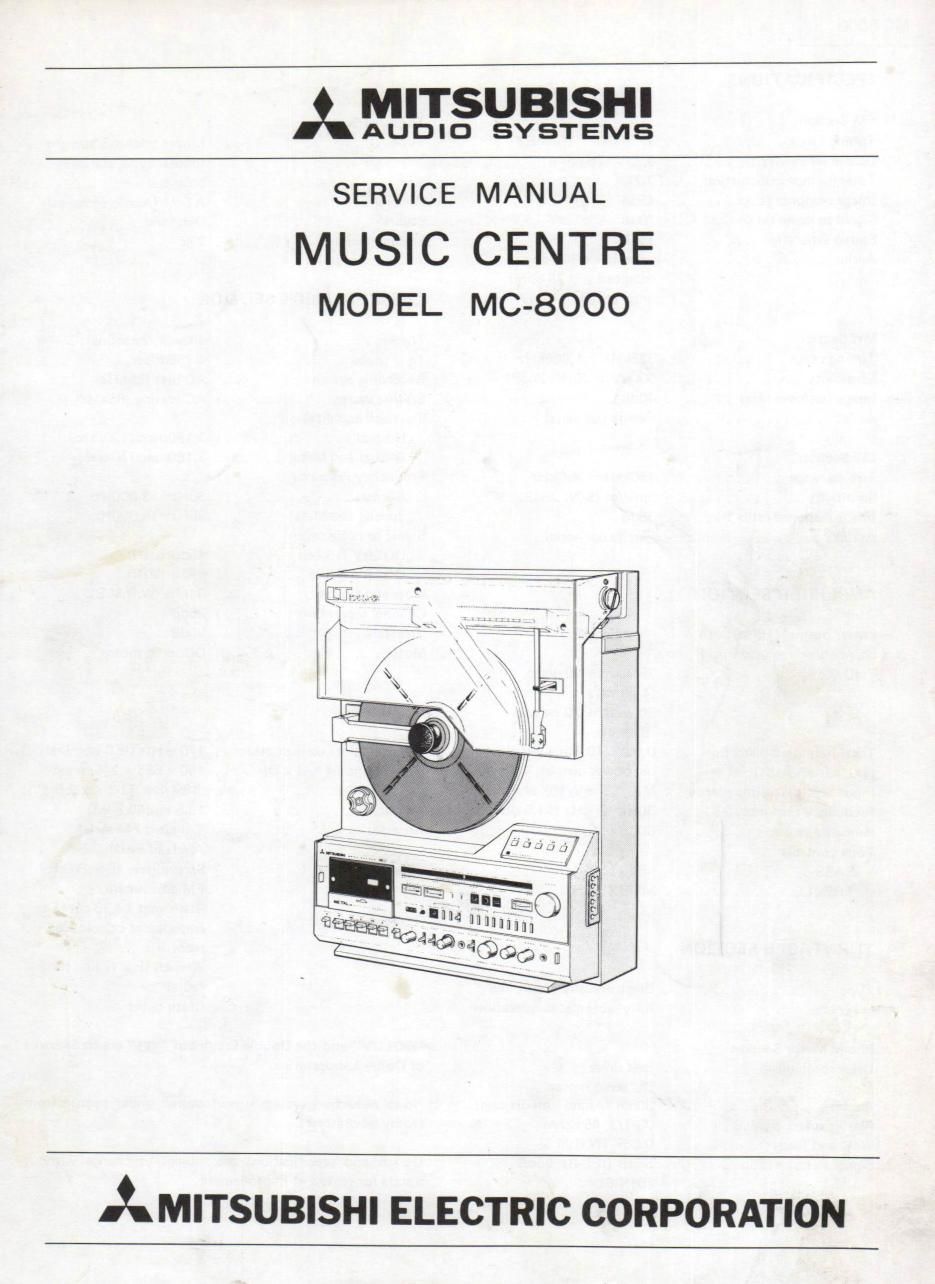

Page 1
A MITSUBISHI
AUDIO SYSTEMS
SERVICE MANUAL
MUSIC CENTRE
MODEL MC-8000
AMITSUBISHI ELECTRIC CORPORATION
Page 2
MC-8000 l
SPECIFICATIONS
FM Section
Tuning range ............ 87.5MH2 ~ 108MHz
Usable sensitivity ......... 0.9uV (75 ohms)
Total harmonic distortion . . . 0.2%
Image response ratio ....... 45dB
Signal to noise ratio ....... 70dB
Stereo separation ......... 35d8
Aerial ................. Impedance 300 ohms
balanced and 75 ohms
unbalanced
MW Section
Tuning range ............ 525kHz ~ 1,605kHz
Sensitivity .............. GDOuV/m IS/N: 26dB)
Image response ratio ....... 40dB
Aerial ................. Ferrite bar aerial
LW Section
Tuning range ............ 150kHz ~ 350kHz
Sensitivity .............. 2mV/m (S/N: 26dB)
Image response ratio ....... 35dB
Aerial ................. Ferrite bar aerial
AMPLIFIER SECTION
Power output (1kHz, both
channels driven into into 8 ohms,
THD 0.5%) ............. 25 watts + 25 watts
(4 ohms)
20 watts + 20 watts
(8 ohms)
Total harmonic distortion . 0.05% (10 watts per chan-
(IkHz from AUX) nel power output, 4 ohms)
Input sensitivityllmpedance . . MIC 1.5 mV/IOk ohms
Frequency response ....... 3OHz~20kHz ($1.5 dB)
Hum and Noise .......... SOdB (DIN)
Tone controls
BASS ............... 18dB (IODHz)
TREBLE ............. inB (iOkHz)
TURNTABLE SECTION
Type ................. Electronically controlled
fully automatic operation
Phone Motor Section
Drive mechanism ......... Belt drive
Motor ................. DC servo motor
Platter ................ 300m (Aluminum die-cast)
Platter speed ............ 33-1/3, 45 r.p.m
Wow and flutter .......... 0.06% (W.R.M.s)
Signal to noise ratio ....... 55:13 (IEC-B), 65dB
(DIN-Bl
Toneorm Section
Type ................. Linear tracking, straight
tubular type, statically
balanced
Cartridge ............... AT«71 (Audio technical)
Stylus ................. Diamond
Stylus pressure ........... 2 gr
CASSETTE DECK SECTION
Tracks ................ 4 track, 2 channel
Tape speed ............. 4.75cm/sec.
Recording system ......... AC bias (85kHz)
Erasing system ........... AC erasing (85kHz)
Playback equalization
Normal .............. 3,180usecJ120usec.
Special and Metal ....... 3,180usec./70usec.
Frequency response
Normal .............. 30Hz~13.000Hz
Special and Metal ....... 30Hz~16,000Hz
Signal to noise ratio
DOLBY NR out ........ 45dB (DIN)
DOLBY NR in ......... 52dB (DIN)
Wow and flutter .......... 0.07% (W.R.M.S)
Channel separation ........ 25dB
Crosstalk ............... 50dB
Motor ................. DC servo motor
GENERAL
Power (Mains) consumption . . 170 watts (IEC nominal)
Dimensions (W x H x D) . 460 x 585 x 245 mm
(18-1/8 x 23-3/4 x 9-5/8")
18.5 kg (40.8 lbs)
T shaped FM aerial
AM lead aerial
Screwdriver (For Preset
FM adjustment)
Black mat 1730 cm (For
transparent or coloured
records)
Wrench (For fitting turn-
table)
Cloth cover
Weight ................
Accessories .............
"DOLBY and the Double D symbol" [1]" are ti'ademlrks
of Dolby Laboratories,
Noise reduction system manufactured under license from
Dolby laboratories.
Design and specifications are subject to change without
notice for reason of improvement.
