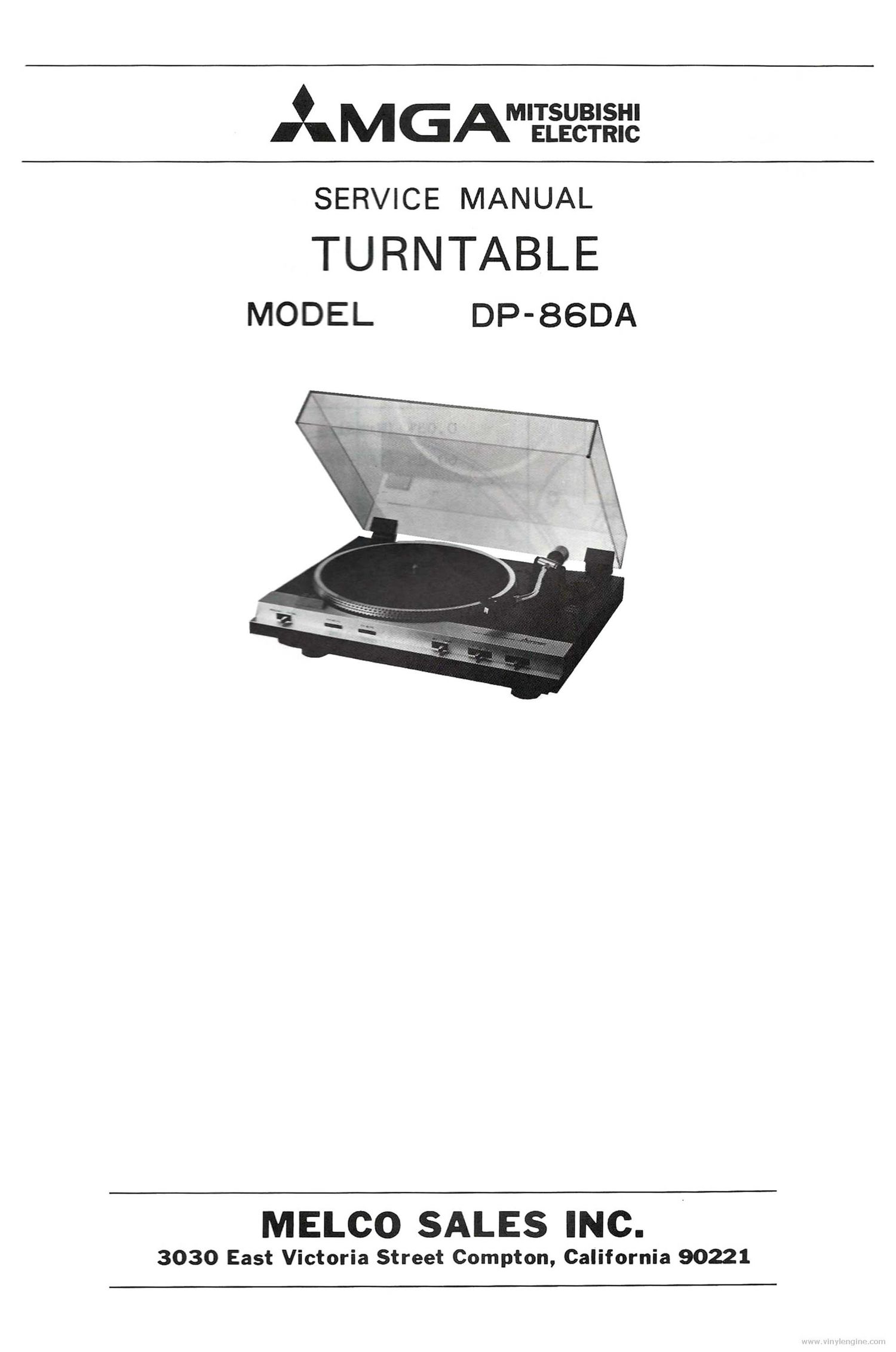

Page 1
: M G MITSUBISHI
ELECTRIC
SERVICE MANUAL
TURNTABLE
MODEL DP-86DA
MELCO SALES INC.
3030 East Victoria Street Compton, California 90221
Page 2
SPECIFICATIONS
l. PHONO MOTOR SECTION
Drive mechanism Direct drive
Motor 4-phase lZ-pole 24-slot brushless DC
servo motor
Platter Diameter 32.4 cm (12-3/4")
Weight 1.3 kg (2-43/50 lb)
Material Aluminum diecast
Platter speed 33-1/3, 45 rpm
Speed adjustment i3.0%
Wow and flutter 0.03% (Wrms)
Signal to noise ratio 60 dB (IEC-B)
2. TONEARM SECTION
Type S-type universal static balance
Overall length 31.5 cm (12-3/8")
Effective length 22.7 cm (8-15/16")
Overhang 14 mm (9/16")
Tracking error (30 cm LP) +2.9° m -l.5°
Offset angle 22C
Possible cartridge weight 4.5 g 1 10 g
Tracking force adjustment 0 N 3 g (0.1 g step)
3. CARTRIDGE SECTION
Type Moving magnet
Stylus 0.6 mil diamond
Recommended tracking force 2 grams
Output level (1 kHz, 5 cm/sec) 3 mV
Channel separation (1 kHz) 30 dB
4. GENERAL
Power consumption 5 W
Dimensions (W x H x D) 47.8):14.9)<38.3 cm
(18-13/16){5-7/8><15-l/l6")
Weight ' 10 kg (22 lb)
Design and specifications are subject to change without notice for improvement.
