Mitsubishi dd 7040 service manual
This is the 43 pages manual for mitsubishi dd 7040 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from mitsubishi dd 7040 service manual (Ocr-read)

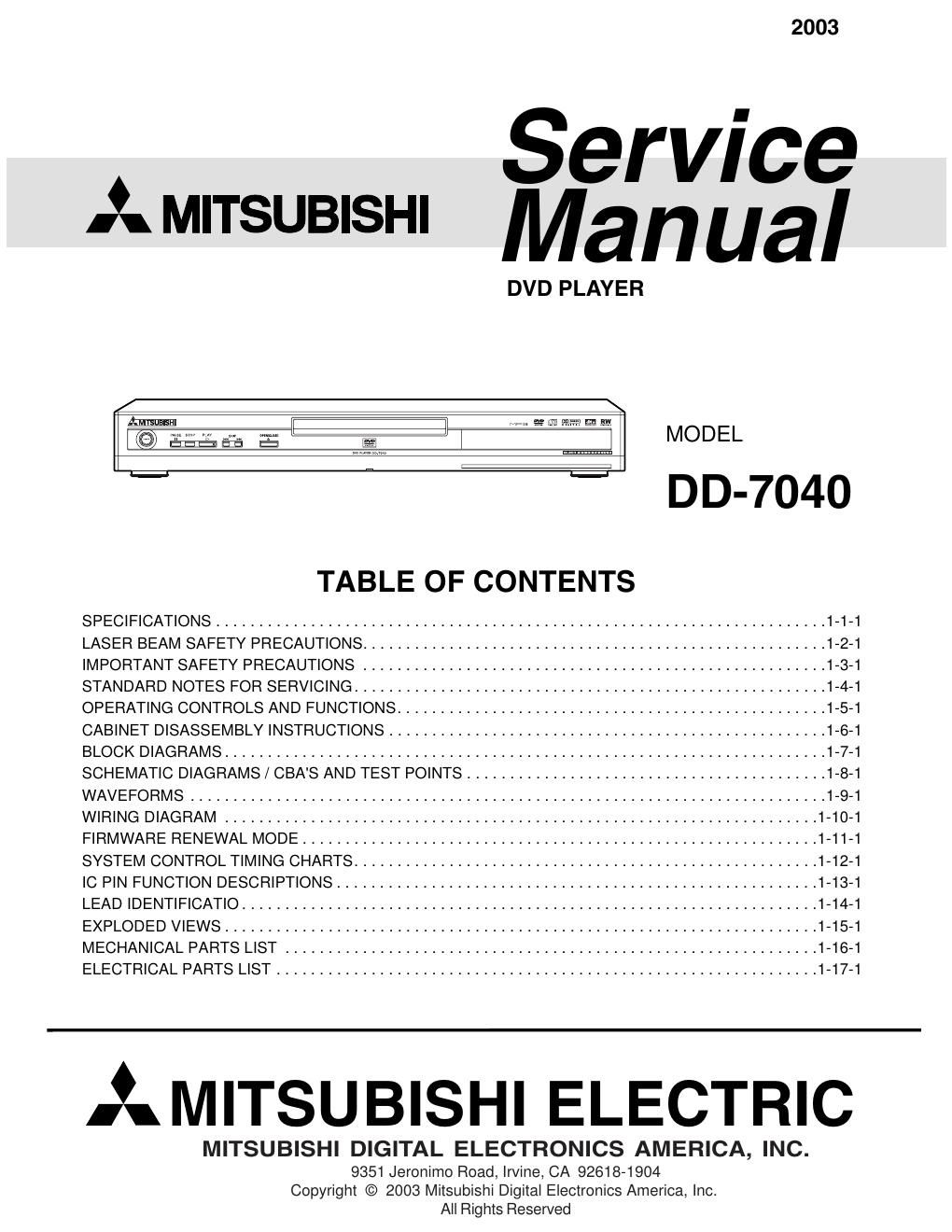

Page 1
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
Page 2
1-1-1 E5731SP SPECIFICATIONS NOTES: 1. All Items are measured without pre-emphasis unless otherwise specified. 2. Power supply : AC120 V 60 Hz 3. Load imp. : 100 K ohm 4. Room ambient : 5 °C ~ 40 °C ITEM CONDITIONS UNIT NOMINAL LIMIT 1. Video Output 75 ohm load Vpp 1.0 ± 0.1 2. Optical Digital Out dBm -18 3. Audio (PCM) 3-1. Output Level 1kHz 0dB Vrms 2.0 3-2. S/N dB 120 3-3. Freq. Response DVD fs=48kHz 20~22kHz dB ± 0.5 CD fs=44.1kHz 20~20 kHz dB ± 0.5 3-4. THD+N DVD 1 kHz 0dB % 0.0025 CD 1 kHz 0dB % 0.003
