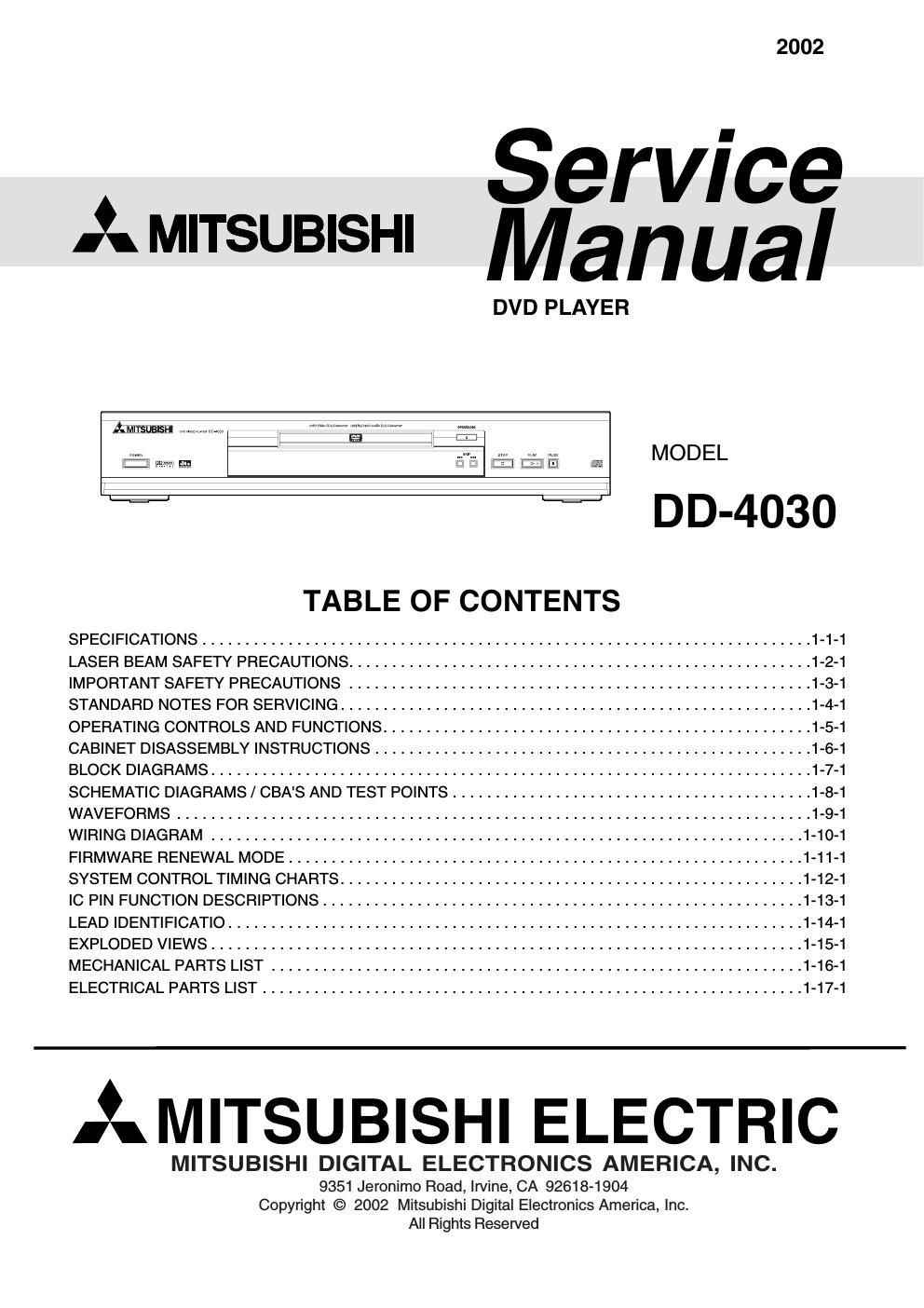

Page 1
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems Inc.
Page 2
1-1-1 DVDSP SPECIFICATIONS NOTES: 1. All Items are measured without pre-emphasis unless otherwise specified. 2. Power supply : AC120 V 60 Hz 3. Load imp. : 100 K ohm 4. Room ambient : +25 °C ITEM CONDITIONS UNIT NOMINAL LIMIT 1. Video Output 75 ohm load Vpp 1.0 2. Coaxial Digital Out mVpp 500 3. Audio (PCM) 3-1. Output Level 1kHz 0dB Vrms 2.0 3-2. S/N dB 110 3-3. Freq. Response DVD fs=48kHz 20~22kHz dB ± 2 CD fs=44.1kHz 20~20 kHz dB ± 2 3-4. THD+N 1 kHz 0dB % 0.005
