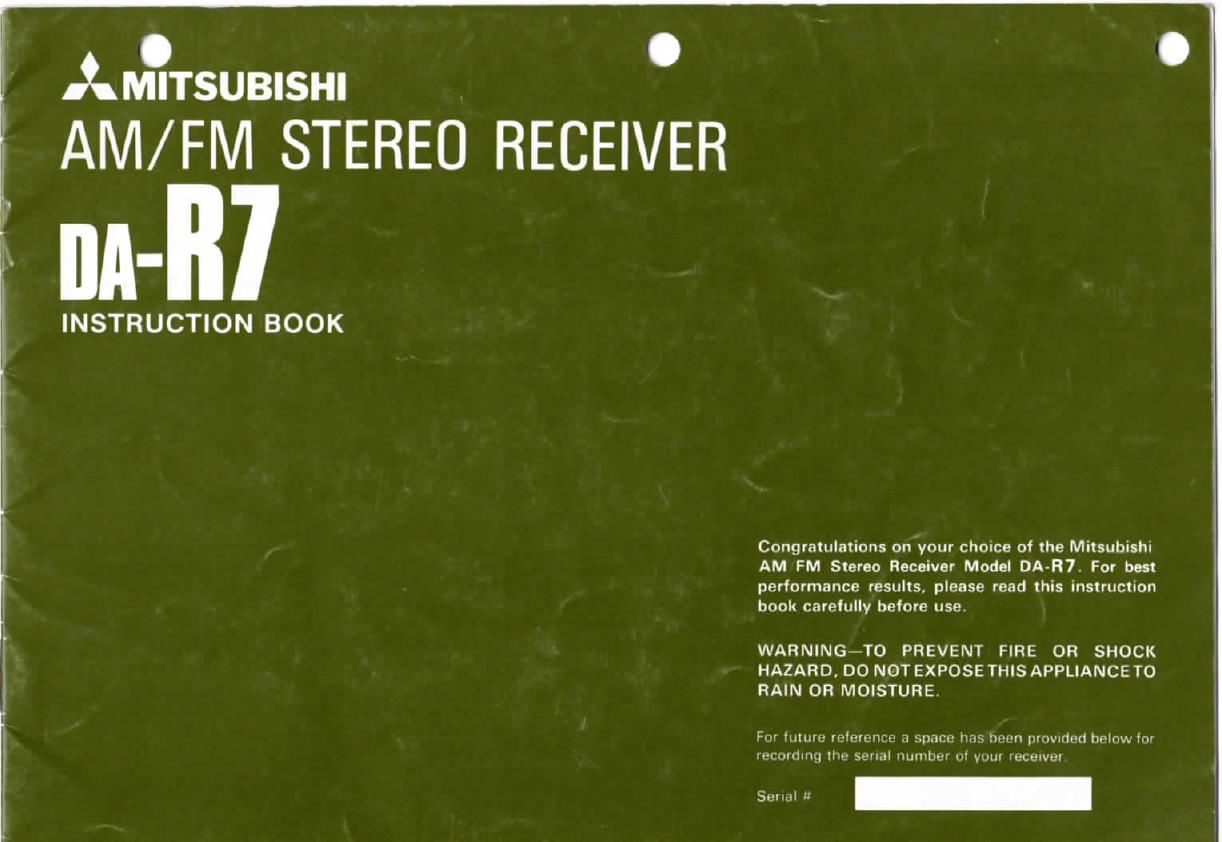

Mitsubishi da r7 om

Page 1

I

I
-

.
AMITSUBISHI

AM/FM STEREO RECEIVER

[IA-III

INSTRUCTION BOOK

Congratulations on your choice of the Mitsubishi
AM FM Smreo Receiver Modal DA-R7. For besr
performance results. please read lhis inslruction
book carefully before use.

WARNING TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS APPLIANCE T0
RAIN 0R MOISTURE.

Fm lulu,- n-Iwruncv .0 spam: Ims Imun muvulml lwlow lm
IvrillllIng llu- starml nmnhm nI yum u-cmvu!

Page 2

( 2

PRECAUTIONS

1. GENERAL

CONNECT ONLY TO YOUR A.C. POWER SUPPLY
The AC power supply reourred by this unit is
marked on the rear panel. Connection to any other
power source may damage this unit and cause
severe electrical shock,

DO NOT PLUG IN OR UNPLUG THE POWER CORD
WITH WET HANDS

There is great danger ol severe electrical shock il
the power cord is plugged in or unplugged wrth
wet hands Do not attempt to unplug the cord lrom
an A C, outlet by pulling the cord Always grasp the
plug itsell firmly to remove it lrom theA C outlet.

HANDLE THE POWER CORD WITH CARE

00 not bend sharply or Mist the power cord. nor
allow it to become trapped under heavylurniture
It the insulation becomes damaged, the conductor
breaks. or poor contacts occur. request service
lrorn your authorized sewice center Continued
use under these conditions may cause lire or elec»
trical shock

DO NOT ALLOW WATER OR ANY FOREIGN MAT-
TER TO GET INSIDE THIS UNIT

Should water or a metallic obiect aCCidentally tall
into this unit. immediately unplug the power cord
and consult your authorized serVIce center

DO NOT TOUCH THE INSIDE OF THIS UNIT
There are high voltages inSide this unit Never
remove the bottom cover or the wooden case All
Inspection and repairs. including luse replace»
ment. should be carried out only by your autho»
rized serVice center

UNPLUG THE POWER CORD AT THE FIRST SIGN
OF TROUBLE

At the lirst Sign of unusual n0ise. odor or mallunc-
tion. unplug the power cord and consult your
authorized serVice center Continued use under
these conditions may increase damage or cause
additional problems

2. LOCATION

AVOID PLACEMENT lN DIRECT SUNLIGHT. NEAR
AIR CONDITIONER. ETC.

This unit can be adversely allected by operation at
unusually high or low temperatures Place in awell
ventilated area lor proper heat dissipation Avoid
placement in direct sunlight. near air conditioners.
in poorly ventilated areas or in areas ol excess
humidity or dust Do not block the ventilation
holes

3. CONNECTIONS

BE SURE TO TURN THE POWER OFF WHILE MAK-
ING CONNECTIONS TO OTHER COMPONENTS
This is to prevent damage to the speakers lrom lhe
popping' horse that would occur when plugging
and unplugging connections to other components
With the power on

BE VERY CAREFUL TO MAKE THE CORRECT CON~
NECTIONS

ll you reverse the Fl (right) and L lleltl leads. you
Will reverse the stereo location of R and L Chan»
nels

BE VERY CAREFUL TO MAKE SECURE CONNEC-
TIONS

Improperly connected plugs may become loose or
disconnected, resulting in hum and other neise ll
not corrected. deterioration ol sound quality and
damage to the speakers may result

USE ONLY SHIELDED CORDS FOR THE LEADS
Use only shielded cords lor interconnecting com-
ponents Do not use cords longer than 2m (about
6) Excesswe cord lengths can degrade high he-
quency response and may pick up interlerence
that Will produce hum or noise

IF YOU CONNECT TWO PAIRS OF SPEAKERS.
BOTH PAIRS SHOULD BE OPERATED AT THE
SAME TIME ONLY IF THEIR COMBINED IMPE-
DANCE IS 4 OHMS OR MORE

II the combined impedance is less than 4 ohms.
the protection CITCUII may operate and mute the
power-output stage The combined impedance
can be calculated as shown below

AXB
A+B

COMBINED IMPEDANCE : (OHMS). where

A: Nominal impedance ol the A speakers.

B: Nominal impedance at the B speakers

So. lor 8-ohm speakers, the combined impedance
would be (8* 8)/l8+8l or 4 ohms. which is a
satislactory value It in doubt. please consult youi
audio dealer lor additional information
