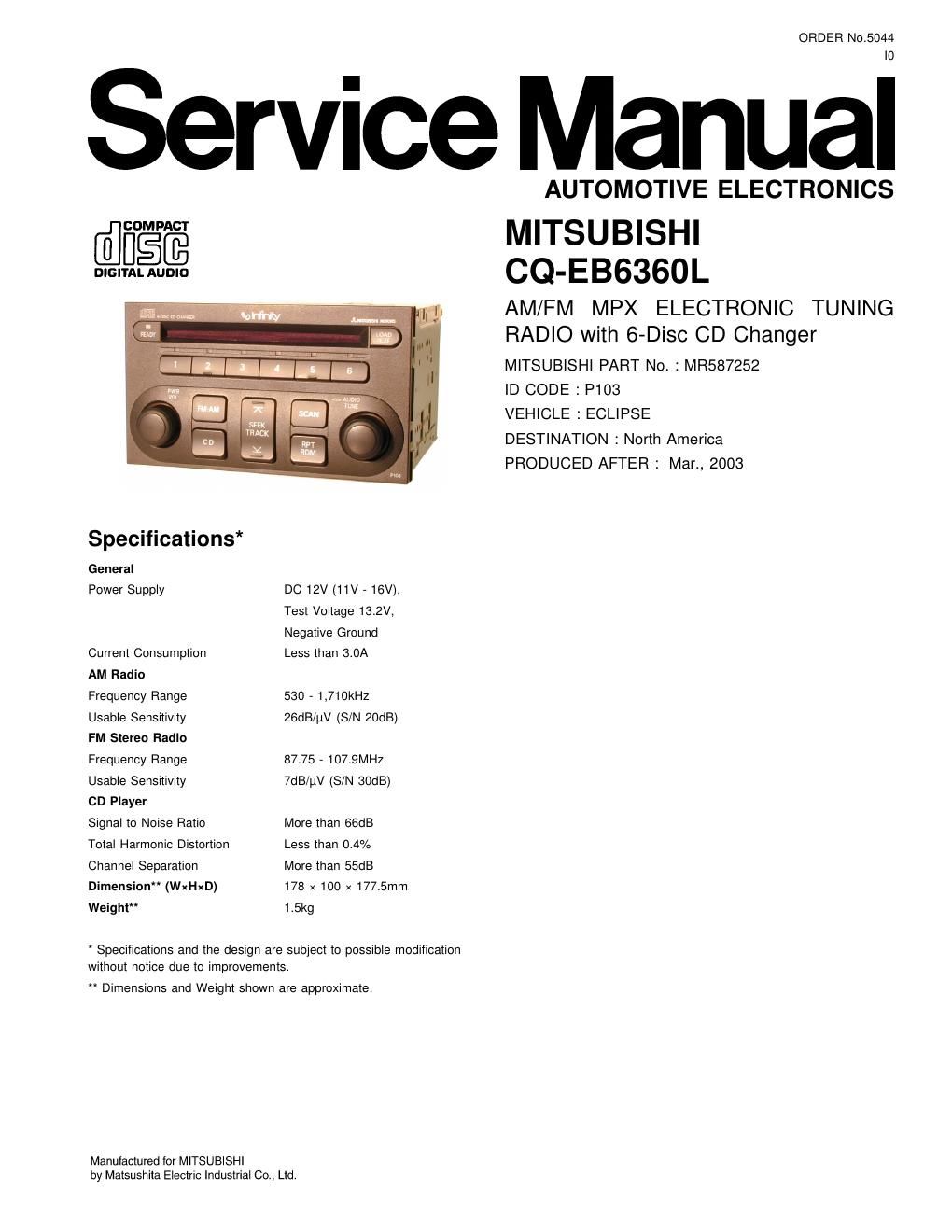

ORDER No.5044

Service Manual

COMPACT

DIGITAL AUDIO

Specifications*
General
Power Supply

Current Consumption
AM Radio

Frequency Range
Usable Sensitivity

FM Stereo Radio
Frequency Range
Usable Sensitivity

CD Player

Signal to Noise Ratio
Total Harmonic Distortion
Channel Separation
Dimension (WxHxD)
Weight"

DC 12V (11V -16V),
Test Voltage 13.2V,
Negative Ground
Less than 3.0A

530 - 1,710kHZ
26dB/uV (S/N 20dB)

87.75 - 107.9MH2
7dB/uV (S/N 30dB)

More than 66dB

Less than 0.4%

More than 55dB

178 x 100 x 177.5mm
1.5kg

Specifications and the design are subject to possible modification
without notice due to improvements.

' Dimensions and Weight shown are approximate.

Manulactured for MITSUBISHI

by Matsushita Electric Industrial 00., Ltd.

AUTOMOTIVE ELECTRONICS

MITSUBISHI
CQ-EBG360L

AM/FM MPX ELECTRONIC TUNING
RADIO with 6-Disc CD Changer

MITSUBISHI PART No. : MR587252
|D CODE : P103

VEHICLE : ECLIPSE
DESTINATION : North America
PRODUCED AFTER : Math, 2003

Page 2

CONTENTS

Page
1 FEATUERS ------------------------------------------------------------------------------ 2
2 LASER PRODUCTS ................................................................. 2

3 FRONT VIEW AND FUNCTIONS-
4 REAR VIEW AND CONNECTORS
5 WIRING CONNECTION ------------------------------------------------------------ 5
6 BLOCK DIAGRAM ------------
7 TERMINALS DESCRIPTION-
8 PACKAGE AND IC BLOCK DIAGRAM

1 FEATUERS

- PLL (Phase Locked Loop) synthesized tuning.
- 18-station preset (12-FM, 6»AM)

- FM One-tu ner diversity.

-6»Disc CD changer (in dash board)

- Electronic control of power and sound.

- Emergency ejecting function

- Anti»shock memory

- CD random. repeat function.

- MD-CH control.

- Apply for CD»R/RW,

Page
BREPLACEMENTPARTSLST ------------------------------------------------ 13
1o EXPLODED VIEW (Unit) -------------------------------------------------------- 19

11 CD CHANGER PARTS LIST --
12 EXPLODED VIEW (CD Deck)
13 WIRING DIAGRAM ----------------------------------------------------------------- 26
14 SCHEMATIC DIAGRAM (1)
15 SCHEMATIC DIAGRAM (2)

2 LASER PRODUCTS

Do not take apart this unit or attempt to make any
changes yourself.

This unit is very intricate that uses a laser pickup to
retrieve information from the suface of compact discs.
The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore, never try to
disassemble the player or alter any of its parts since
you may be exposed to laser rays and dangerous
voltages.

Laser products :

Wave length 780nm

Laser power No hazardous radiation is
emitted with safety protection.

Caution

This product utillzes a laser.

Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
