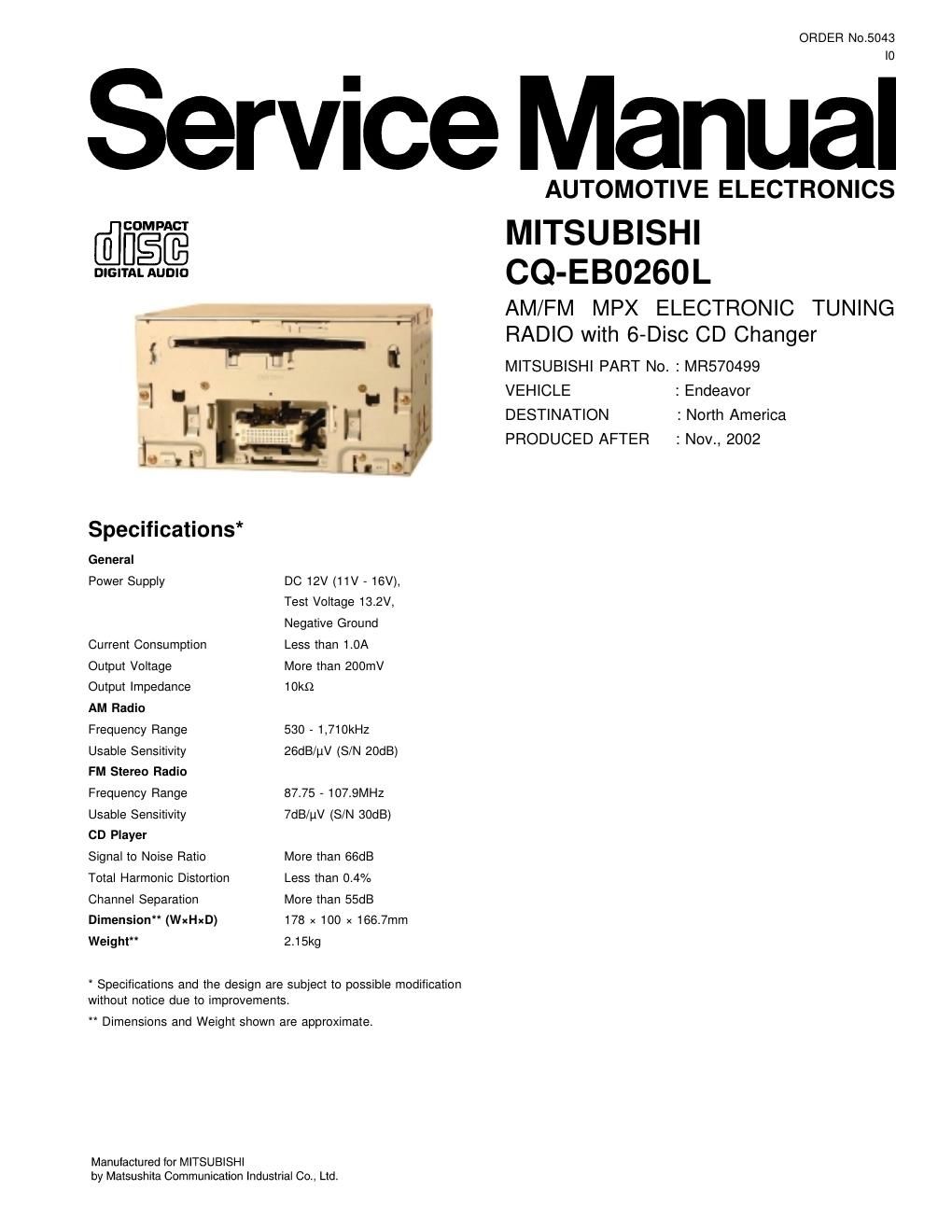

Page 1
ORDER No.5043
Service Manual
COMPACT
DIGITAL AUDIO
Specifications*
General
Power Supply
Current Consumption
Output Voltage
Output Impedance
AM Radio
Frequency Range
Usable Sensitivity
FM Stereo Radio
Frequency Range
Usable Sensitivity
CD Player
Signal to Noise Ratio
Total Harmonic Distortion
Channel Separation
Dimension (WxHxD)
Weight"
DC 12V (11V -16V),
Test Voltage 132V,
Negative Ground
Less than 1.0A
More than 200mV
10k!)
530 - 1,710kHz
26dB/uv (S/N 20dB)
37.75 - 107.9MH2
7dB/pV (S/N 30dB)
More than 66dB
Less than 0.4%
More than 55dB
178 x 100 x 166.7mm
2.15kg
" Specifications and the design are subject to possible modification
without notice due to improvements.
" Dimensions and Weight shown are approximate.
Manulactured for MITSUBISHI
by Matsushita Communication Industrial 00., Ltd.
AUTOMOTIVE ELECTRONICS
MITSUBISHI
CQ-EBOZGOL
AM/FM MPX ELECTRONIC TUNING
RADIO with 6-Disc CD Changer
MITSUBISHI PART No. : MR570499
VEHICLE : Endeavor
DESTINATION : North America
PRODUCED AFTER : Nov., 2002
Page 2
MITSUBISHI / CQ-EBOZEOL
CONTENTS
Page
1 FEATUERS ------------------------------------------------------------------------------ 2
2 LASER PRODUCTS ................................................................. 2
3 SYSTEM BLOCK DIAGRAM -
4 FRONT AND REAR VIEW -----
5 WIRING CONNECTIONS ---------------------------------------------------------- 5
6 BLOCK DIAGRAM ------------
7 TERMINALS DESCRIPTION-
8 PACKAGE AND [C BLOCK DIAGRAM
1 FEATUERS
0 9»Pro tuner pack.
0 18-station preset (12-FM, 6»AM)
- FM One-tu ner diversity.
- 6»Disc CD changer (in dash board)
0 Electronic control of power and sound.
- Emergency ejecting function
- Anti»shock memory
0 Disk direct selection.
0 CD random, repeat function.
0 MD control.
0 MD-CH control.
0 Infinity amp connection.
Page
BREPLACEMENTPARTSLST ------------------------------------------------ 13
1o EXPLODED VIEW (Unit) -------------------------------------------------------- 1s
11 CD CHANGER PARTS LIST -----
12 EXPLODED VIEW (CD Deck-1)
13 EXPLODED VIEW (CD Deck-2) ---------------------------------------------- 23
14 EXPLODED VIEW (CD Deck-3)
15 WIRING DIAGRAM
16 SCHEMATIC DIAGRAM
2 LASER PRODUCTS
Do not take apart this unit or attempt to make any
changes yourself.
This unit is very intricate that uses a laser pickup to
retrieve information from the suface of compact discs.
The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore, never try to
disassemble the player or alter any of its parts since
you may be exposed to laser rays and dangerous
voltages.
Laser products :
Wave length
Laser power
780nm
No hazardous radiation is
emitted with safety protection.
Caution
This product utilizes a laser.
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
