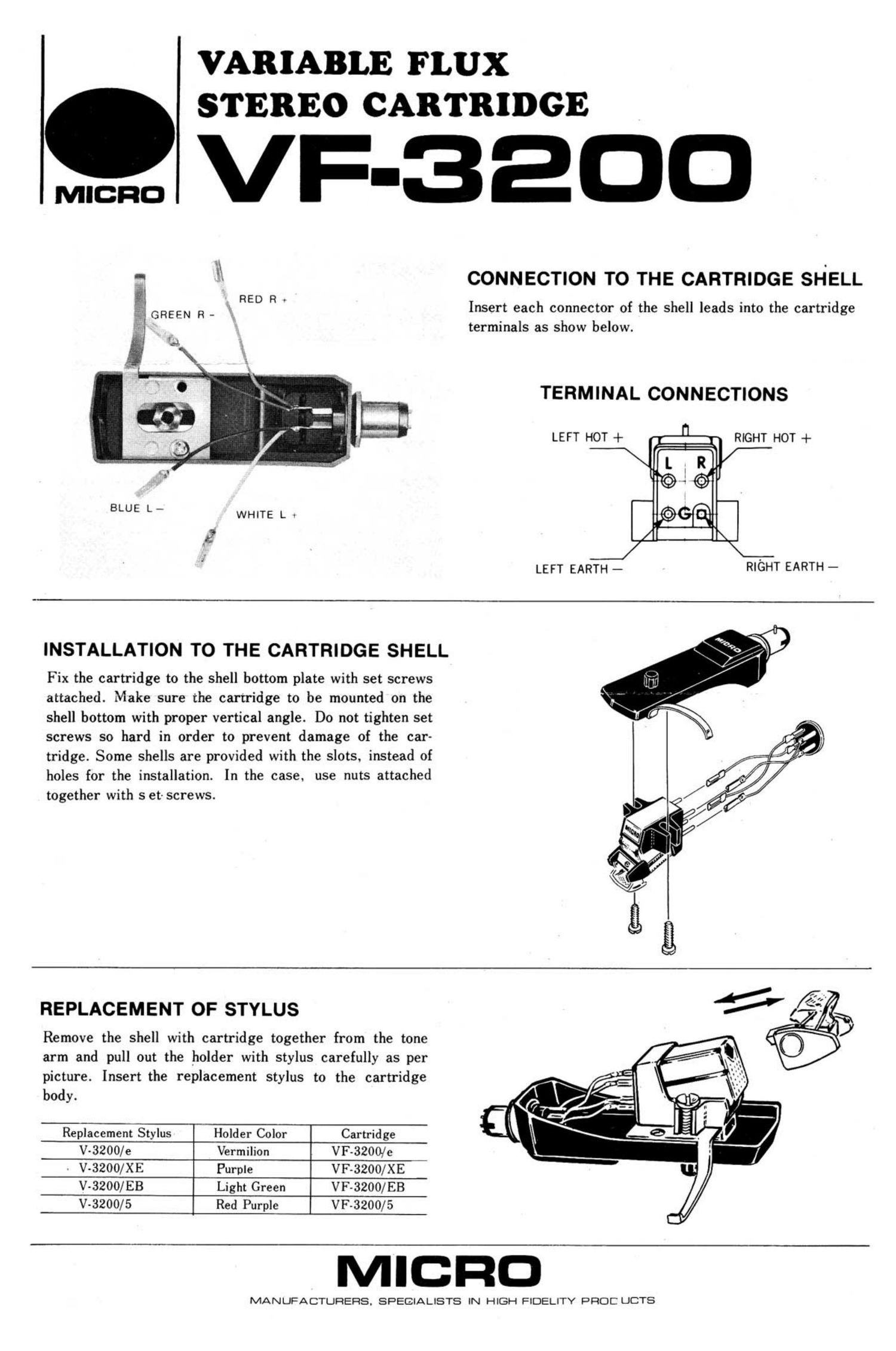

Page 1
VARIABLE FLUX
STEREO CARTRIDGE
mm F-3200
"I. CONNECTION TO THE CARTRIDGE SI-IELL
Q1 :REDR-
Insert each connector of the shell leads into the cartridge
terminals as show below.
TERMINAL CONNECTIONS
LEFT HOT + RIGHT HOT +
:a
WHITE L .
Z \
J _/ L
LEFT EARTH _ RIGHT EARTH -
INSTALLATION TO THE CARTRIDGE SHELL
Fix the cartridge to the shell bottom plate with set screws
attached. Make sure the cartridge to be mounted on the
shell bottom with proper vertical angle. Do not tighten set
screws so hard in order to prevent damage of the car-
tridge. Some shells are provided with the slots. instead of
holes for the installation. In the case. use nuts attached
together with s et- screws.
REPLACEMENT OF STYLUS
Remove the shell with cartridge together from the tone
arm and pull out the holder with stylus carefully as per
picture. Insert the replacement stylus to the cartridge
body.
Replacement Stylus Holder Color Cartridge
V-3200/e Vermilion VF3200/c
, V-3200/XE Purple VF-3200/XE
V-3200/EB Light Green VF-3200/EB
V-3200/5 Red Purple VF-3200/5
MICRO
MANUFACTURERS. SPECIALISTS IN HIGH FIDELITY PROC UCTS
Page 2
MANJFACTLJFIEFI. SPECIALISTS
IN HIGH FIDELITY PRODUCTS
FREQUENCY RESPONSE AND CHANNEL SEPARATION
Brut-Liv! La?
L367 i'i-ac
tinge" "1;qu
'tfl'rl'lltl 4 mm)
MILL;
'Lu
.&1_____
imun l. 5 (l)
I
In. Low _.P-u~50':-
L.tin,va-_1Ru.ua.zu_'
maximum:
WrSpmi:
.viill I K}-r
B'h. S K)¢'
Ivihl S Kjuv
MLL'MM' M 30000 (It WA. . :3 u.»
023 (In/IllnA I C Uh.
SPECIFICATIONS
VF-3200 I e VF-3200/XE VF-3200/EB VF-3200/5
Frequency Response 5-35.000Hz 10-30.000Hz 10-28.000Hz 10-28.000Hz
Channel Separation 30dB 30dB 30dB 30dB at (Hz
Compliance 30><10'6 25><10'6 20><106 20XI05cm/dyne
3mVr at 1KHz
Output Voltage 3mV 3mV 3mV 3. 54 cm/sec.
45 mod.
Output Balance within 0.5dB within 0.5dB within 0.5dB within 0.5dB
Tracking Force 1.5g 2.0g 2.5g 2.5g
Stylus 0.3K 0.8mil Low mass Elliptical 0.3 x 0.8m Standard Elliptical 0.3 A0.8mil Economical Elliptical 0.5 Conical
Suitable Load Resistance 47- 50Kfl 47-50K9 47-50Kfl 47- SOKQ
Net weight 4.5g 4.5g 4.5g 4.5g
Specifications will be changed subject to modification without notice.
TONE ARMS
Tracing ability depends on performance of the tone arm
used together. It is important in any case to use as higher
quality tone arms as our MA-lOlMK-II or MA-77MK-II.
For the best performance of VF-3200 cartridge, MA-
MA-77MK-II
MA-lOIMK-II
lUlMK-II or MA-77MK-II are recommended because they
are designed to mate with VF-3200 with excellent track-
ability as well as sensitivity. They are provided with anti-
skating devices. delay motion arm elevation for cuing and
direct reading stylus pressure gauge.
Printed in Japan
M I C R O SEIKI (30., LTD.
IS-IS FUJIMl-CHO lTABASHI-KU TOKYO JAPAN
