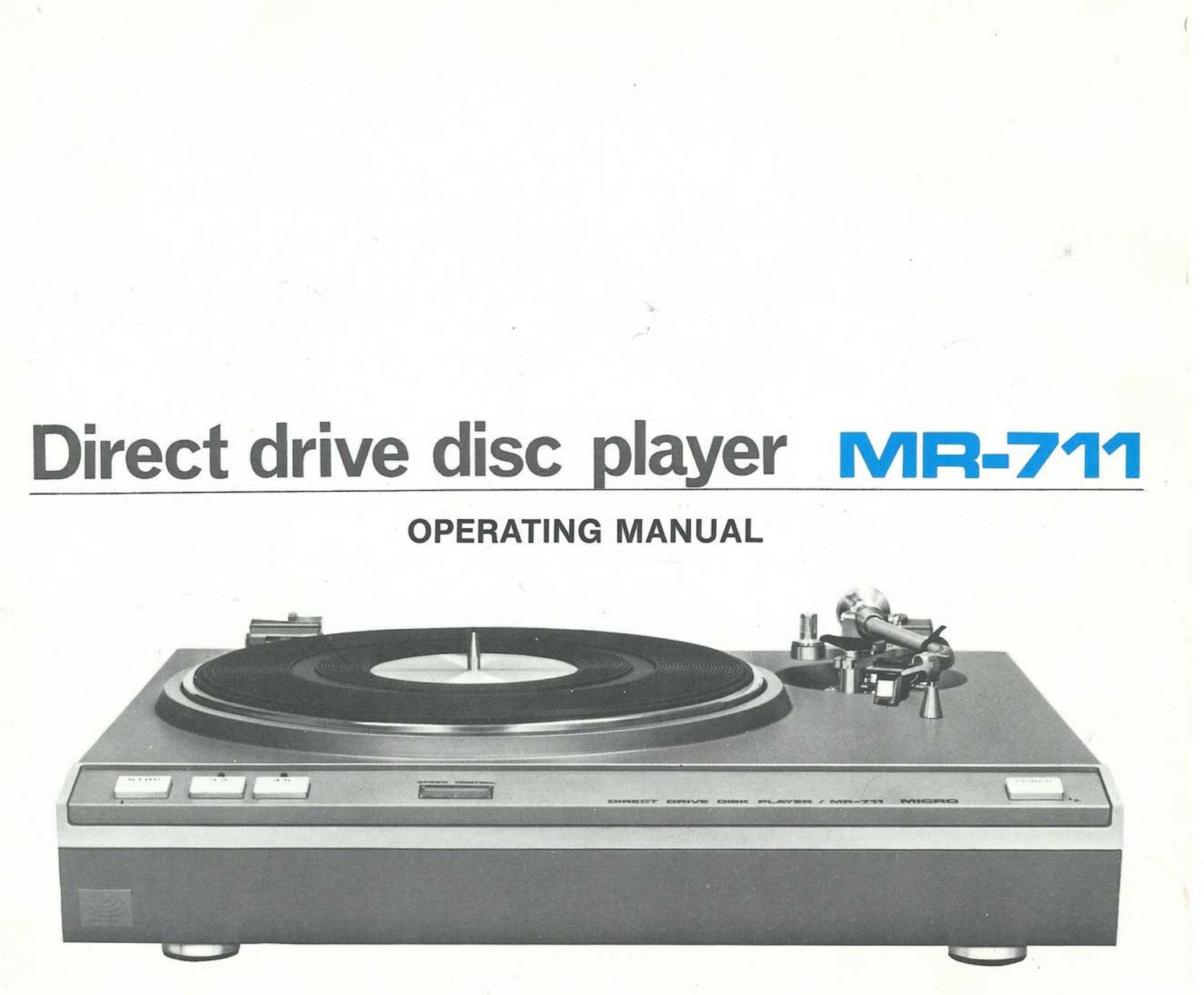

Direct drive disc player Mia-711

OPERATING MANUAL

Page 2

We would like to thank you for the confidence shown in Micro products by your purchase of the MR-711 Turntable. You are now
the owner of one of todays most outstanding items of high fidelity equipment which we trust will give you long dependable service
and help to make your hi-fi listening an enjoyable experience.

In addition to its excellent basic performancethe MR-711 has many outstanding features including an aluminium die-cast chassis,
feather-touch operating buttons, electronic speed control with meter display, a turnover type accessory pocket. independently
height adjustable shock absorbers, and of course a unique appearance consistent with the most modern design standards.

Before using your turntable may we suggest that you spend a few minutes studying the various points listed in order that you may
obtain the best use from this exclusive product.

ii);

AC POWER ONI OFF SWITCH

Press lightly to switch the unit on. The
speed control meter will be illuminated
to show that this has been done. but the
turntable will not operate yet Press again
to switch the power off.

SPEED SELECTOR FOR 33%r.p.m.

This should be pressed it 33 >5r.p.m.is the
required speed. The turntable will com-
mence rotation.

See note 5 for speed adjustment.

SPEED SELECTOR FOR 45 r.p.m.

This should be pressed it 45 r.p.m. is the
required speed. The turntable will com-
mence rotation.

See note 5 for speed adjustment.

SPEED CONTROL METER

This is illuminated when the power is
switched on. Accurate speed at 33% or
45 rpm. is obtained when the indicator
stays exactly in the centre of the scale.
When the turntable starts rotating. or
when the speed is changed between 33
and 45 r.p.m. the indicator will swing off
centre momentarily. This movement does
not relate to the turntables speed or the
starting-up time as the meter functions as
an indicator only when either of the speed

- control buttons are depressed.

{a

for

H

[2*

13

ACCESSORY POCKET OPENING KNOB
Slide this to the left to open the pocket.

TONE ARM

Refer to points 21. 22. 23. 25 and 26 for
alignment of lateral balance. stylus pres-
5ure and anti-skating device.

TURNTABLE
CENTRE PLATE

AC POWER CORD

OUTPUT TERMINALS

This is a DIN type connector. Make sure
that correct phasing is obtained when
connecting to the amplifier. The connec-
tor is of low capacity thus. helping to a-
void problems when connecting discrete
type 4-channel systems.

- CARTRIDGE

Refer to cartridge instructions supplied
with particular model fitted.

. HEADSHELL

Solid type rigid shell. A spare is supplied
in the accessory pocket.

LOCKING CONNECTOR

Plug headshell into tone arm and turn
connector to lock it in place.

CONNECTOR CRAMPING SCREW

This is used in conjunction with the gauge

._. 3.1-4:- .4v AlL- __.a .1". I.
