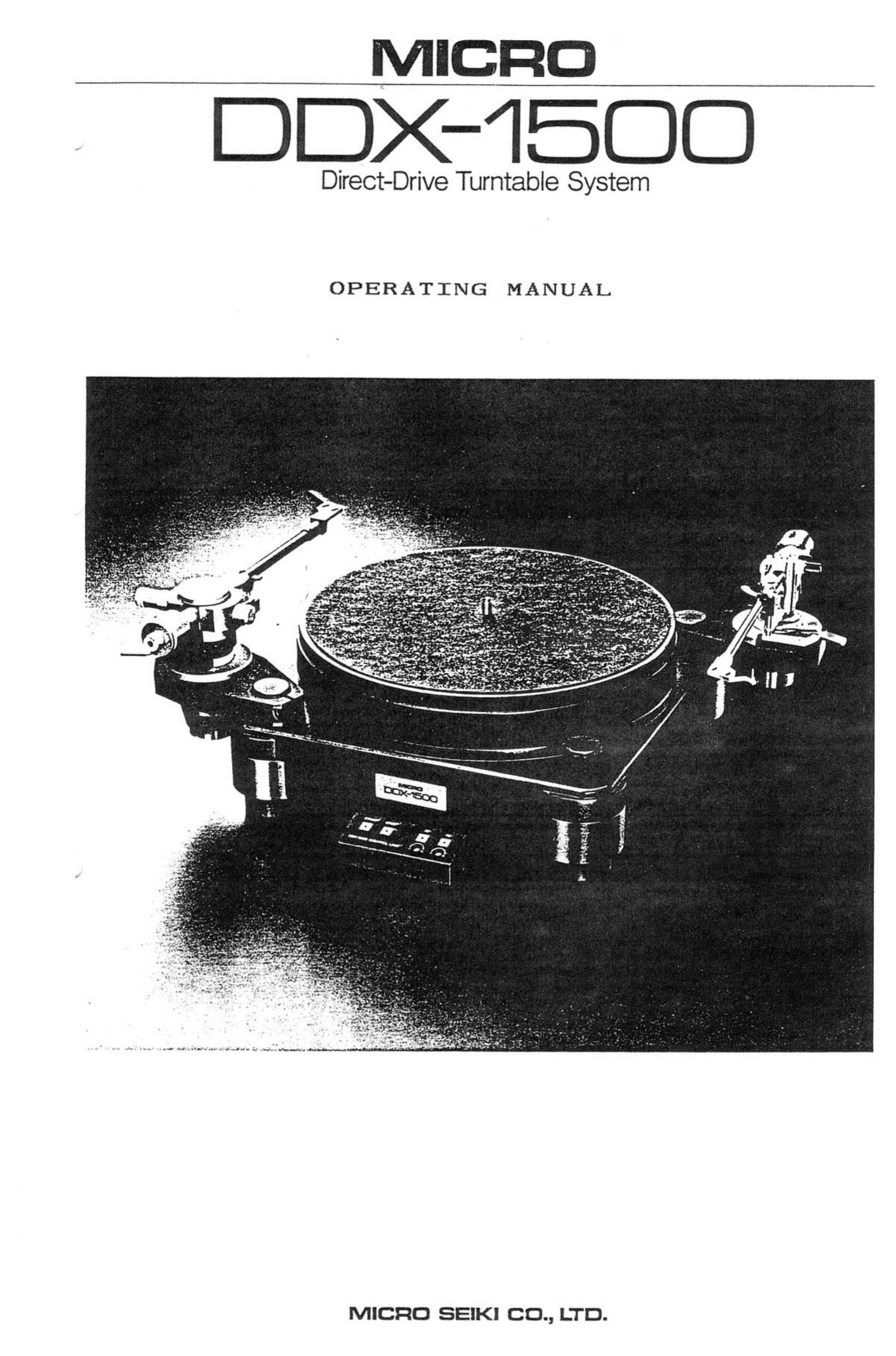

Micro seiki ddx 1500 owners manual
This is the 6 pages manual for micro seiki ddx 1500 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from micro seiki ddx 1500 owners manual (Ocr-read)
Page 2
Congratulations upon your purchase of the MICRO DDX-ISOO. It is the most
advanced, the most compact D.D. turntable system available in its class. For
understanding its incomparable features and for allowing the system to reach
its full performance potential, it will be worthwhile to read the following
instructions prior to setting up and use.
I EXPLODED VIEW
Fig.1
Turntable Sheet
Platter fi~-""r-~_.______~.~--§.
Direct Drive Motor
Optional AX Series
Arm Mounting Base
Pole Cap
Insulator Pole
Control Unit
Start Switch__
Stop Switch
t t' S eed Selector for 33 rpm
R0 8 1°" P Power Supply Unit
Rotation Speed Selector for 45 rpm
IIACCESSORIES SUPPLIED
1 Artificial leather turntable sheet AS-l
2 Platter
3 45 rpm adaptor
4 Screw driver
5 Hexagonal wrench
6 Power supply unit
7 Operation control unit
8 AC cord
