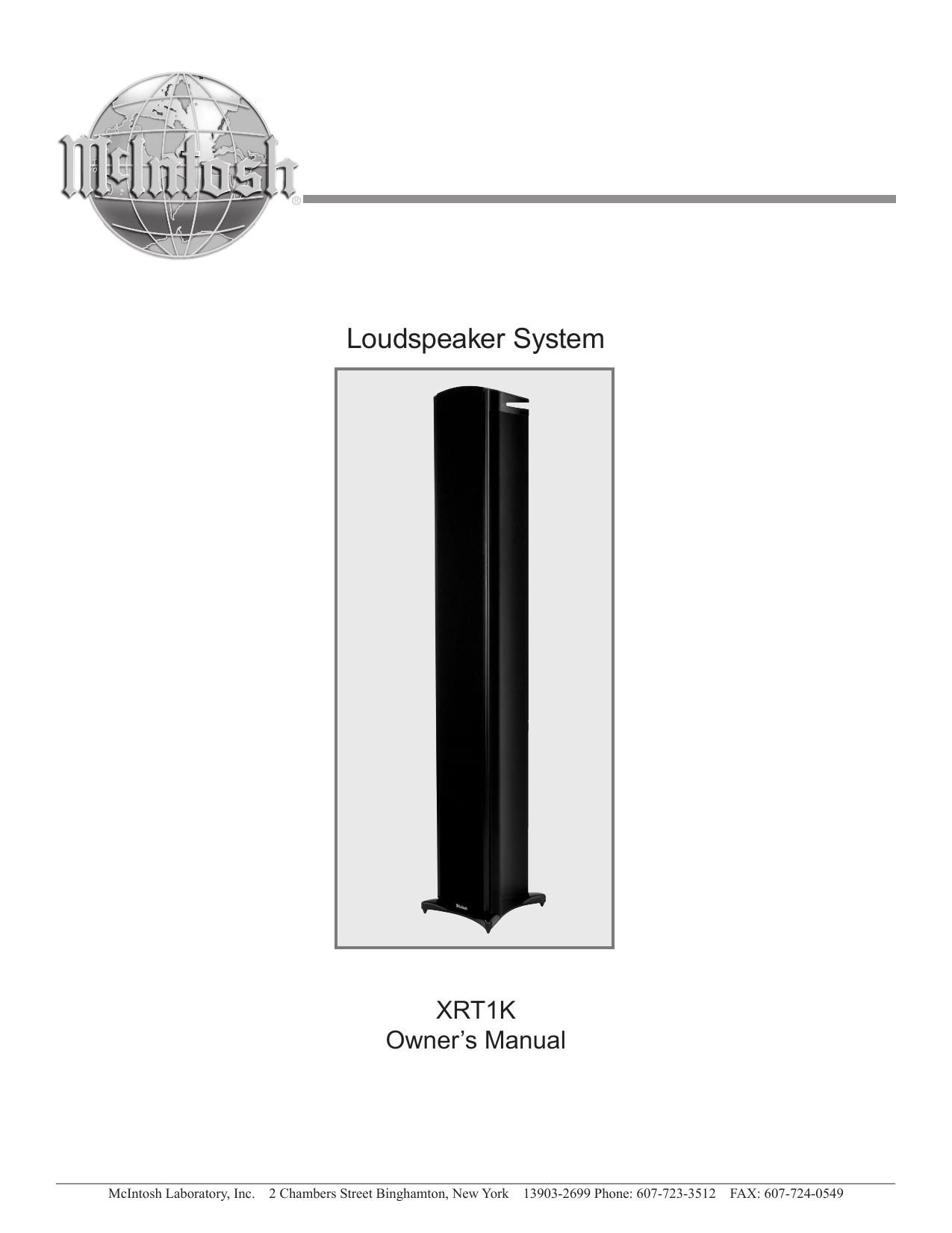

McIntosh XRT 1K Owners Manual
This is the 16 pages manual for McIntosh XRT 1K Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh XRT 1K Owners Manual (Ocr-read)
Page 1
2 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a non-abrasive dry soft cloth. 7. I nst all i n accord a nce wit h t he ma nufact u rers instructions. 8 . Th i s Loudspeaker i s capable of produci ng ext remely high sound pressure levels, even when connected to ampl i f iers of moderate power out put. User caut ion is adv ised. Ear protection is recommended when playing at high volumes as continued exposure to high sound pressure levels can cause permanent hear i ng i mpa i r ment or los s . The use of a Sound Level Pressure Meter will greatly aid in determining when high volume levels are occurring. 9. Do not i nst all nea r a ny heat sou rces such a s radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 10. Only use attachments/accessories specified by the manufacturer. 11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, o r s o l d w i t h t h e a p p a r a t u s . W hen a car t is used, use caution when mov i ng t he ca r t /appa r at u s combination to avoid injur y f rom tip-over. 12. Refer all servicing to qualified service personnel. Ser vicing is required when the apparat us has been damaged in any way, liquid has been spilled or objects have fallen i nto the appa rat us, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 13. Do not expose this equipment to d r ipping or s pla sh i ng a nd e n s u r e t h at no obje c t s f i l le d with liquids, such as vases, are placed on the equipment. 14 . WA R N I NG : W h e n t h i s L o u d s p e a k e r i s connected to an amplifier that is Powered On, the connection terminals may have hazardous l ive voltages present w ith a r isk of electr ic shock. 1 5 . CAU T I O N : W h e n t h i s L o u d s p e a k e r i s assembled it weighs 168 pounds (76.2 kgs). It requires th ree or more persons to safely move the Loudspeaker. WARNING - TO REDUCE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. To prevent the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. IMPORTANT SAFETY INSTRUCTIONS! PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT.
Page 2
3 Thank You Your decision to own this McIntosh XRT1K Loudspeaker System ranks you at the very top among discriminating music listeners. You now have The Best. The McIntosh dedication to Quality, is assurance that you will receive many years of listening enjoyment from this unit. Please take a short time to read the information in this manual. We want you to be as familiar as possible with all the features and functions of your new McIntosh. Please Take A Moment The serial number, purchase date and McIntosh Dealer name are important to you for possible insurance claim or future service. The spaces below have been provided for you to record that information: Serial Number: __________________________________ Purchase Date: __________________________________ Dealer Name: ___________________________________ Technical Assistance If at any time you have questions about your McIntosh product, contact your McIntosh Dealer who is familiar with your McIntosh equipment and any other brands that may be part of your system. If you or your Dealer wish additional help concerning a suspected problem, you can receive technical assistance for all McIntosh products at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-1545 Fax: 607-724-0549 Customer Service If it is determined that your McIntosh product is in need of repair, you can return it to your Dealer. You can also return it to the McIntosh Laboratory Service Department. For assistance on factory repair return procedure, contact the McIntosh Service Department at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3515 Fax: 607-723-1917 Copyright 2007 © by McIntosh Laboratory, Inc. Table of Contents Safety Instructions ............................................................ 2 T hank You and Please Take a Moment ............................. 3 T echnical Assistance and Customer Service .................... 3 T able of Contents and General Information ..................... 3 I ntroduction ....................................................................... 4 P erformance Features ....................................................... 5 D imensions .................................................................... 6-7 Installation ........................................................................ 8 H ow to Connect with one Amplifier ................................ 9 H ow to Connect using two Amplifiers .......................10-11 How to Connect using three Amplifiers .................... 12-13 Specifications .................................................................. 14 Packing Instruction ......................................................... 15 General Information Caution: The XRT1K weight is 168 pounds (76.2kg). It re- q uires three or more persons to safely handle the Loudspeaker System. 1. Loudspeaker Cables of adequate size are important to en- s ure that there will be no significant power loss or heating. Cable size is specified in Gauge numbers or AWG (Ameri- c an Wire Gauge). The smaller the Gauge number, the larger the wire size: If the Loudspeaker Cables are 50 feet (38.1m) or less, use at least 12 Gauge (AWG) wire size or larger. If the Loudspeaker Cables are 100 feet (76.2m) or less, use at least 10 Gauge (AWG) wire size or larger. 2. For additional connection information, refer to the owners manual(s) for any component(s) connected to the XRT1K Loudspeaker. 3. The XRT1Ks built-in speaker protection incorporates five automatic resetting solid-state devices in the crossover networks. One protects the tweeters, one for the midranges and three for the woofers. The protection allows a certain amount of overdrive but extended periods will trigger pro- te ction. If an obvious lack of high, mid or low frequencies is noticed, the Protection Device may have activated. These devices will automatically reset when the volume level is reduced significantly and kept low until the output of the affected Loudspeaker Element returns to normal. 4. When the XRT1K Loudspeaker System is driven by more than one amplifier, the output levels of the different ampli- f iers connected to the Loudspeaker System must be adjusted to achieve a proper balance between the low, midrange and high frequencies reproduced. This adjustment is best achieved through the use of audio test equipment operated by a qualified installer.
