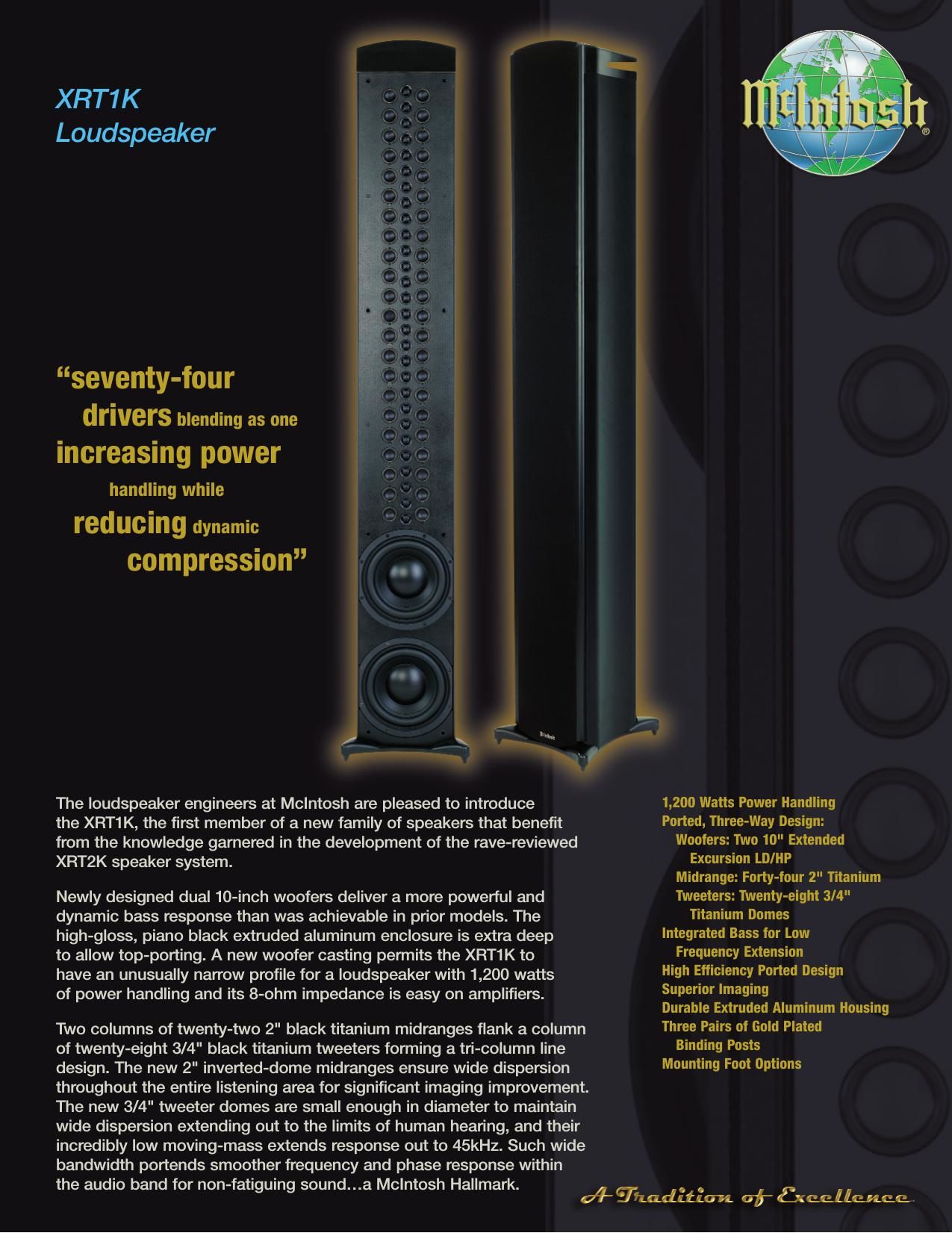

McIntosh XRT 1K Brochure

Page 1

For the Consumers Protection: In order to ensure the highest level of customer satisfaction, newMcIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be usedand do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. 8.07.XRT1K.20K 35010000 McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699 Tel (607) 723-3512 - US Toll-Free (800) 538-6576 - Fax: (607) 724-0549 - www.mcintoshlabs.com XRT1K Loudspeaker TITANIUM DOME TWEETERS These dome drivers have titanium diaphragms with frequency response to 45kHz. Their small size is ideal for producing a wide angle stereo sound image. INVERTED DOME MIDRANGES Each midrange driver is 2" in diameter with a titanium inverted dome. Titanium has great rigidity resulting in smoother uncolored reproduction throughout the critical mid frequencies. TWIN LD/HP WOOFERS Each XRT1K features two Low Distortion/High Performance 10" custom woofers, augmented with a low velocity top cabinet mounted port. This combination yields effortless bass down to 20Hz and loads the listening room from two points so as to seamlessly blend with the mid and high frequency array. THREE SETS OF INPUTS Three sets of massive gold plated input connectors make Bi and Tri-amping and Bi and Tri-wiring a snap. MID-TWEETER-MID DESIGN By placing a column of tweeters between two columns of midranges, wide horizontal dispersion with controlled vertical dispersion is realized. This design projects a wide image and deep soundstage evenly throughout the listening room. SYSTEM TYPEPorted, 3-Way NOMINAL IMPEDANCE8 ohms POWER HANDLING1,200 Watts WOOFERSTwo 10" Extended Excursion MIDRANGEForty-four 2" Black Titanium TWEETERSTwenty-eight 3/4" Black Titanium Domes ANECHOIC RESPONSE20Hz – 45kHz REFERENCE SPL2.8V / 1m: 88dB CROSSOVER FREQUENCIES250Hz & 2kHz DIMENSIONS (H X W X D)79" x 11" x 25.5" EXTERIOR SURFACESHigh gloss black aluminum GRILLE FINISHESBlack knit cloth with high gloss black trim WEIGHT (EA)170 lbs.
