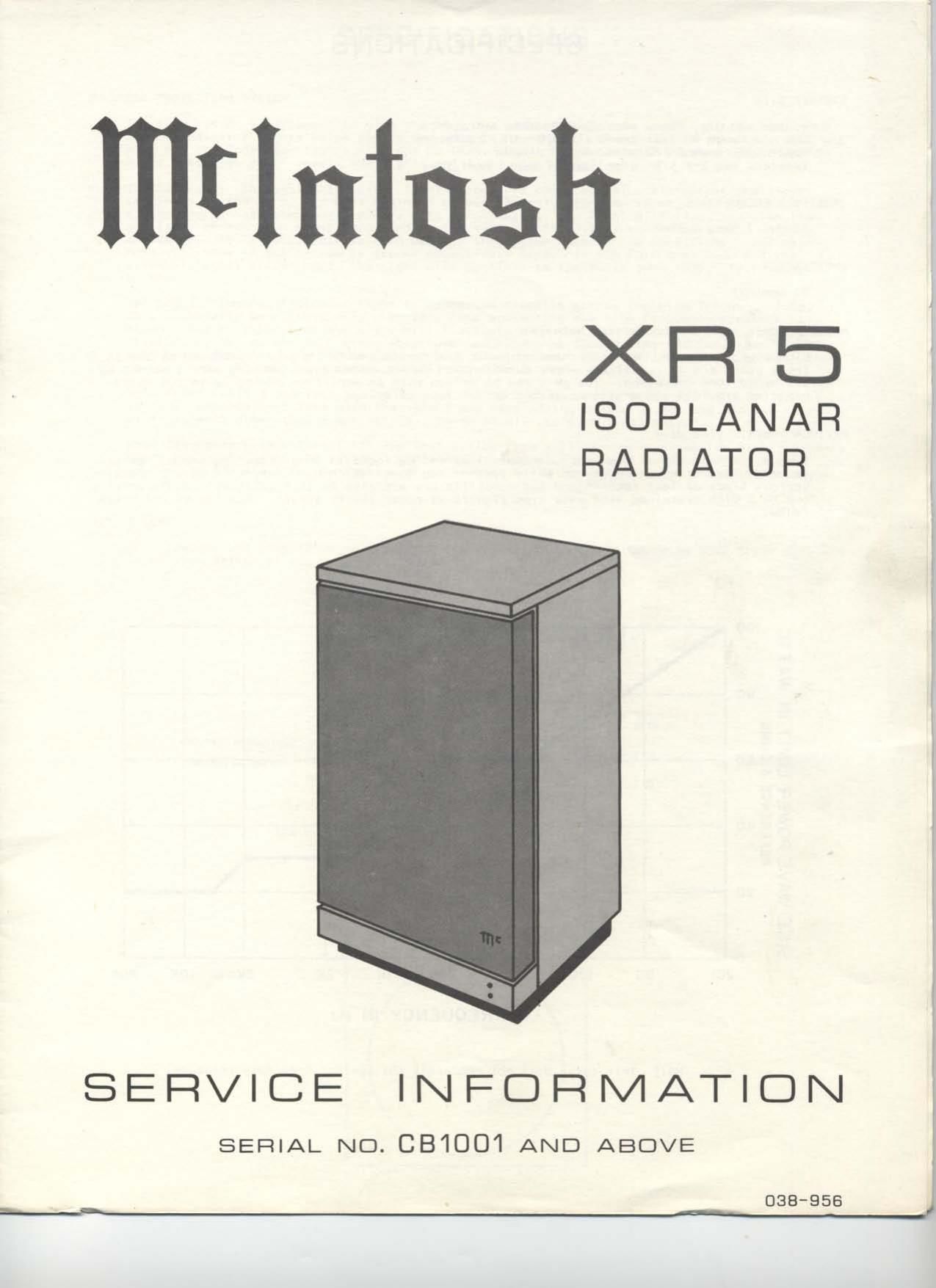

McIntosh XR 5 Service Manual

Page 2

SPECIFICATIONS

SPEAKER SIZE

Woofer l2 dia. frame size (9-I/2 dia. radiator)
Low mid-range 8 dia. frame size (6" dia. radiator)
Upper mid-range l-l/Z dia. dome radiator

Tweeters two 2/ 5/8" dIa. coaxial super radiators

CROSSOVER FREQUENCIES
ZSOHZ. I.bKHz 5 7KHz

IMPEDANCE

80 Nominal

MAXIMUM POWER: Normal Orchestral Material

High energy peaks normal to orchestral music are easily and faithfully reproduced by the XR 5.
These peaks are of relatively short duration and do not produce the heating effect caused by
sustained tone operation. The XR 5 can be driven with an amplifier having up to 200 watts
capacity provided the amplifier is not driven into clipping.

MAXIMUM POWER: Sine Wave

Some music has unusual frequency content. This can be found in some Rock recordings of sus-
tained guitar notes and electronically synthesized tones which have near sine wave properties.
Various kinds of Test records and audio oscillators are also in this category. Avoid driving

the XR 5 with sustained sine wave type signals at power levels greater than limits indicated
below.

:1) I00
'-
F'
g \
80

z
_ m \
l: 2
E 3 so
.J an
m Iu
; s
o 5 40
D_ u.

U
u; a
2
g 20
In
E
0 o

20 so ICC 200 500 m 2K 5K IOK 20K

FR EQUENCY IN Hz

NOTE: This curve does not represent the speaker frequency response.
