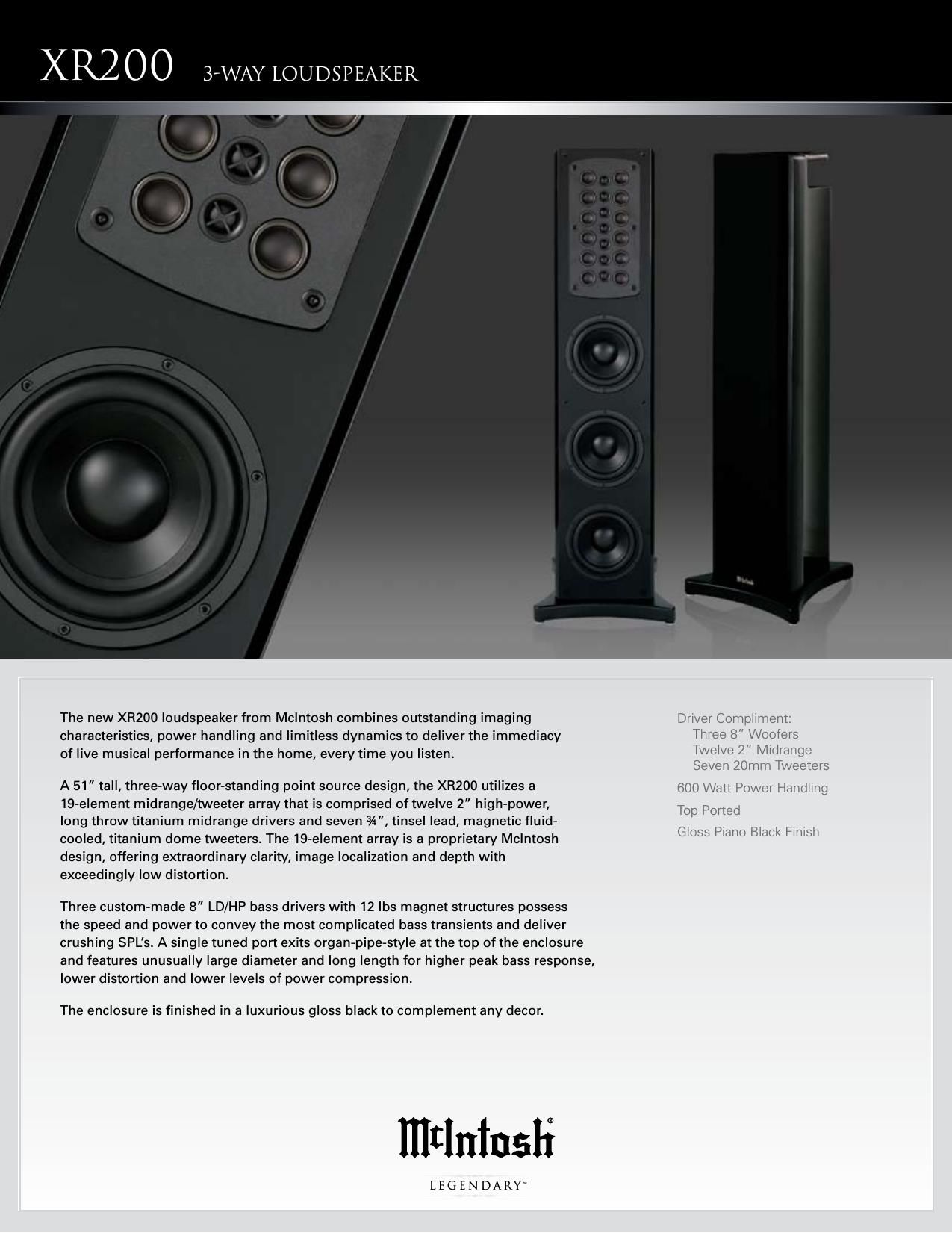

McIntosh XR 200 Brochure

Page 1

To experience the legendary performance of McIntosh, please call on us at\ 1-800-538-6576 www.mcintoshlabs.com 35011300 XR200 XR200 3-way loudspeaker PoweR handling 600 Watts CRossoveR FRequenCies 240 Hz and 1900 kHz sensitivity 86 dB (2.83V/1m) imPedanCe 8 ohms nominal FRequenCy Range 20 Hz – 45 kHzFinish enClosuRe High Gloss, Piano Black Finish gRille Black Knit Cloth enClosuRe Formaldehyde free MDF oveRall dimensions (h X w X d) 51-3/4 (131.5cm) x 11 (28cm) x 11-½ (29.2cm) Stand is 15-1/2 (39.4cm) W, 16 (40.6cm) D weight 113 lbs. (51.4kg) net 137 lbs. (62.3 kg) in shipping carton 19-element aRRay Twelve 2 midrange and seven 20mm tweeter drivers combine to yield a point source response similar to a coaxial midrange driver for superb imaging. This design yields an uncanny spaciousness and broad dispersion to the sound field. The multiple-driver approach features robust power handling and freedom from dynamic compression. PRogRessive induCtanCe CRossoveR netwoRk Using a technique developed for our line array loudspeakers, McIntosh engineers use special, progressive inductance crossover networks to link individual drivers in the 19-Element Array together in a way that eliminates the comb filtering effects that plague typical multi-element designs. tRiPle Binding Posts Separate binding posts are provided for Low, Mid and High connections. Each XR200 is designed as a highly flexible system and may be powered with one, two or three amplifier channels in support of bi-amp and tri-amp configurations. Patented ld/hP teChnology McIntosh Low Frequency Loudspeaker Elements feature the patented LD/ HP Driver Design. This design, when compared to that of conventional drivers, reduces distortion significantly. It also increases power handling and efficiency. FoR the ConsumeRs PRoteCtion In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the- counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
