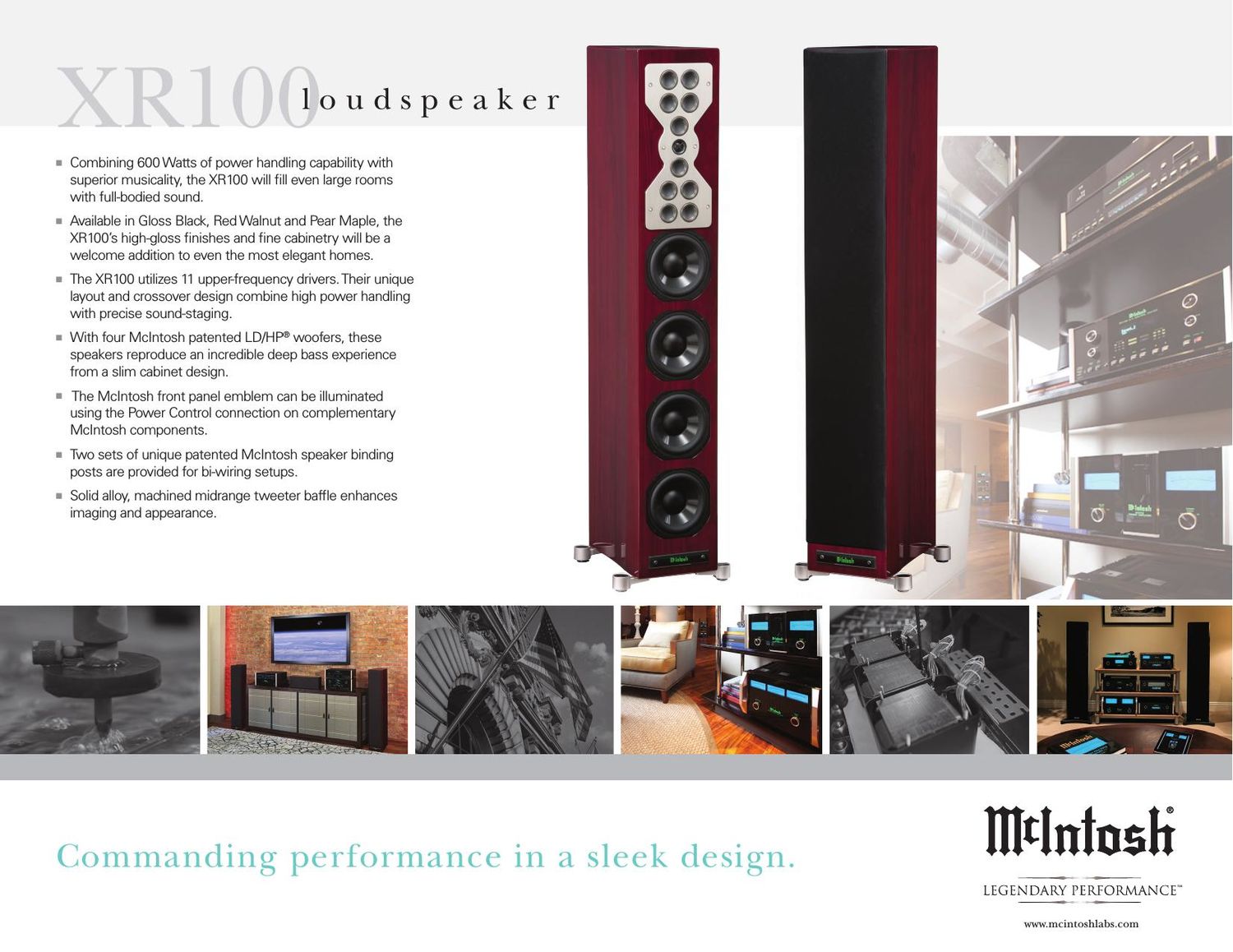

McIntosh XR 100 Brochure

Page 1

35015301 General Specifications System Type: 4-way, Rear Ported, Floor Standing Nominal Impedance: 8 Ohms Power Handling: 600 Watts Woofers: Four 6 LD/HP ®, Poly Cone, Cast Frame Midranges: Eight 2 Inverted Titanium Domes Midrange Tweeters: Two 2 Inverted Titanium Domes Super Tweeter: One ¾ Titanium Dome Anechoic Response: 30Hz to 45kHz Sensitivity: One Watt, One Meter, 87dB Crossover Frequencies: 300Hz, 2kHz, 8kHz Overall Dimensions (W x H x D): 8 (20.3cm) x 51 (129.5cm) x 18-1/2 (46.9cm) Weight: 68.5 lbs (31 kg) net83 lbs (37.6 kg) in shipping carton Finishes: Available in three exclusive McIntosh finishes: For the Consumers Protection:In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. Pear Maple Red Walnut Gloss Black Companion ProductsThe McIntosh MX121 A/V Control Center, MC8207 Amplifier, MVP891 Audio Video Player, LCR80 Speaker and XR50 Bookshelf Speaker are logical companions for the XR100 Speaker. Your authorized dealer can provide additional information. To learn more, please call us at 1.800.538.6576. XR100 loudspeaker www.mcintoshlabs.com
