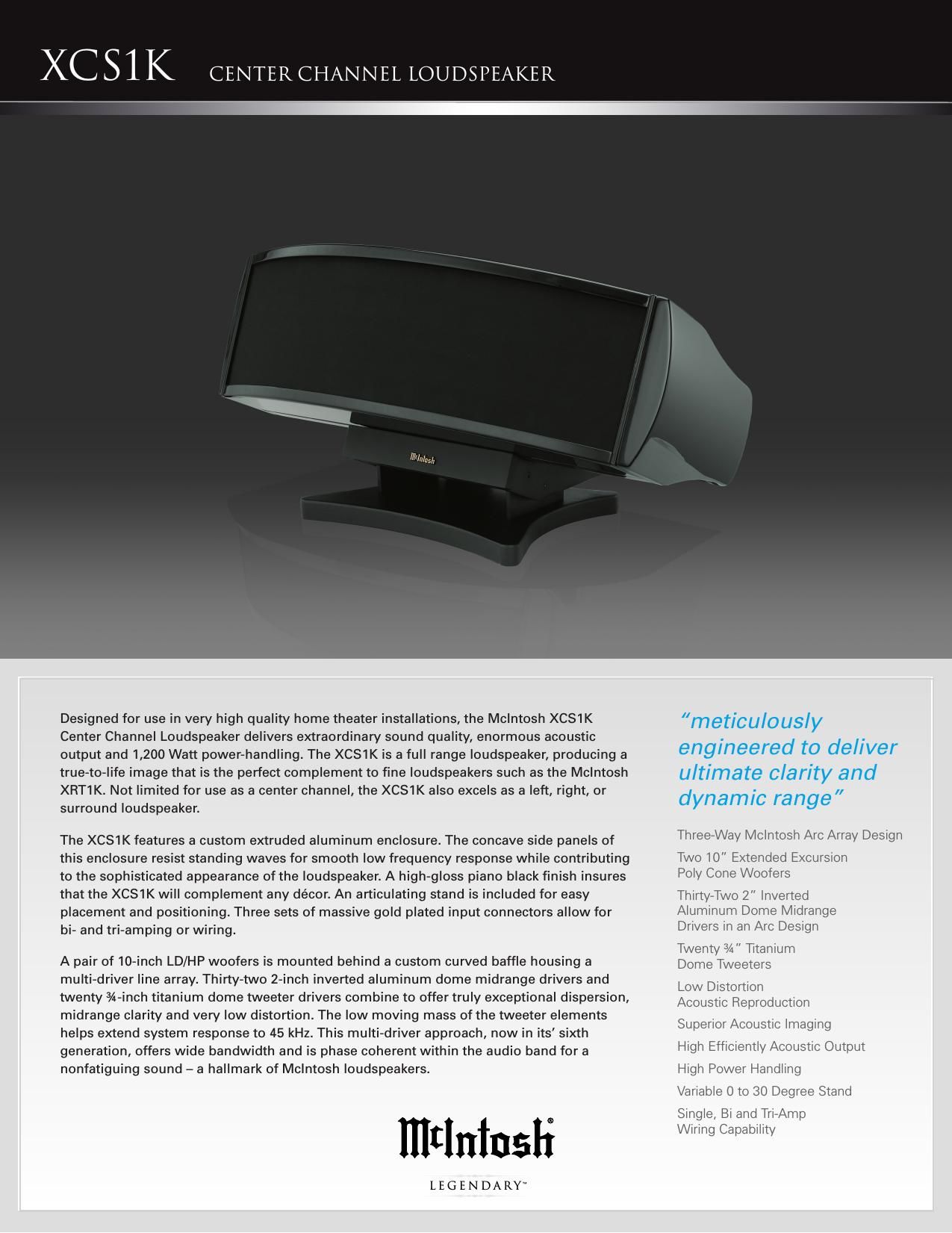

McIntosh XCS 1 K Brochure

Page 1

To experience the legendary performance of McIntosh, please call on us at\ 1-800-538-6576 www.mcintoshlabs.com 35011000 XCS 1K xcs1k center channel loudspeaker CroSSover FrequenCieS 250 Hz & 1.5 kHz eXterior SurF aCeS Piano, high gloss black on extruded aluminum/ High Gloss Black Polyester MDF Grille FiniSheS Black Knit Cloth DimenSionS (h X W X D) Loudspeaker with cradle in neutral position: 16-7/8 42.9cm) x 39-1/4 (99.7cm) x 22-1/8 (56.2cm) Height with cradle positioned at maximum elevation of 30O: 21 (53.3cm). WeiGht (ea.) Loudspeaker: 133 lbs. (60.3 kg) net Cradle: 15 lbs. (6.8 kg) net 178 (80.7 kg) in shipping carton SyStem type Sealed Arc Array, 3 Way nominal impeDanCe 8 poWer hanDlinG 1000 W WooFerS 2 – 10 Extended Excursion miDranGe 32 – 2 Inverted Titanium Dome tWeeterS 20 – ¾ Titanium Dome aneChoiC reSponSe 16Hz - 45 kHz reFerenCe Spl 2.8V / 1m: 86 dB arC DeSiGn To achieve similar power handling and dispersion characteristics of the XRT1K, an arc design for the M-T-M line array was incorporated. Particularly useful for dispersion of the top two octaves of the ¾ dome tweeters, this produces uniform coverage for all listeners. titanium Dome tWeeterS These dome drivers have titanium diaphragms with frequency response to 45kHz. Their small size is ideal for producing a wide angle stereo sound image. inverteD Dome miDranGeS Each midrange driver is 2 in diameter with a titanium inverted dome. Titanium has great rigidity resulting in smoother uncolored reproduction throughout the critical mid frequencies. Dual lD/hp ® WooFerS Each XCS1K features two Low Distortion/ High Performance 10 woofers with custom polypropylene cones. The use of polypropylene produces a durable cone which will not deform or introduce harmonic distortion under high power stress. three SetS oF inputS Three sets of massive gold plated input connectors make Bi and Tri-amping and Bi and Tri-wiring a snap. For the ConSumerS proteCtion In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the- counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
