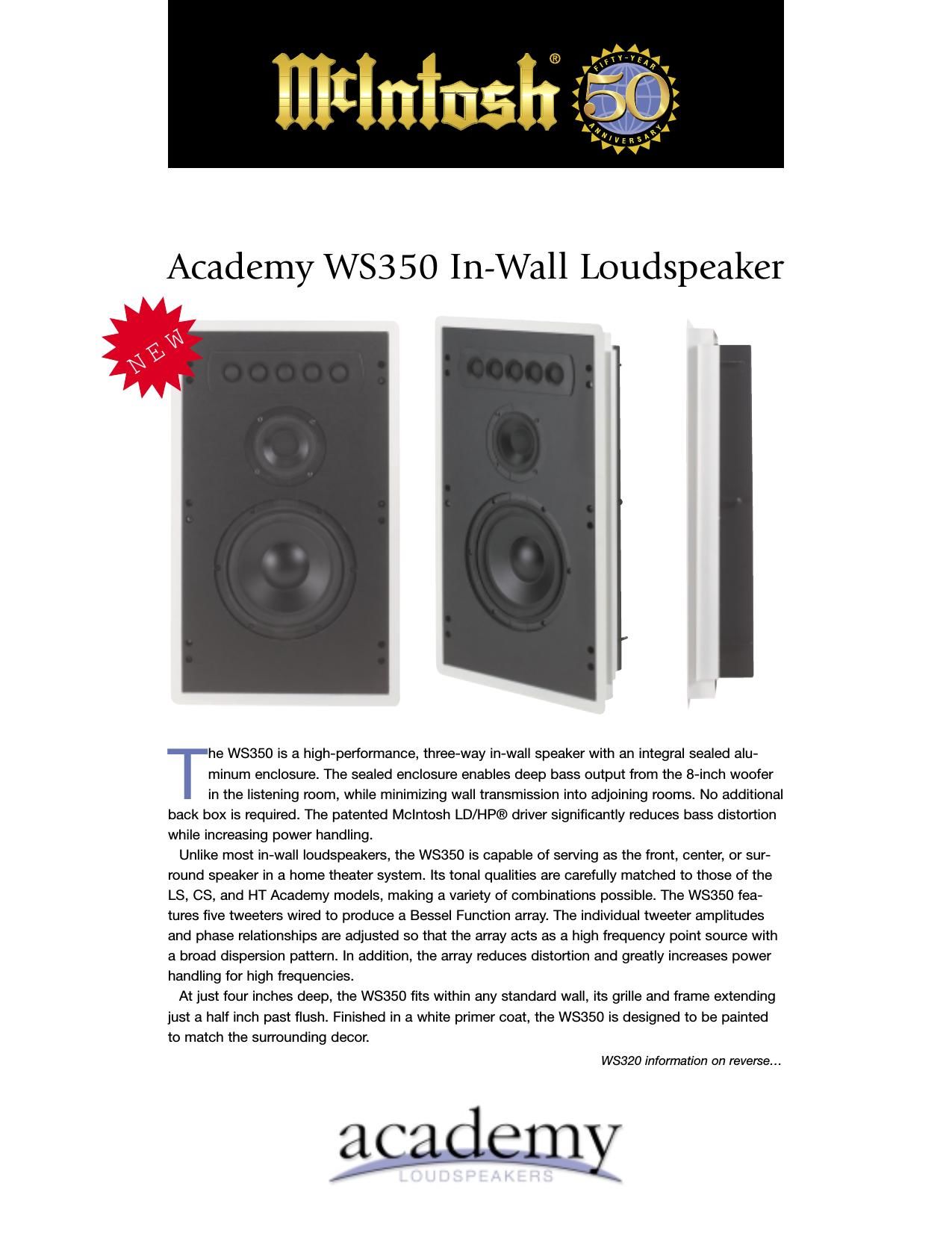

McIntosh WS 350 Brochure

Page 1

McIntosh Laboratory, Inc., 2 Chambers Street, Binghamton, New York 13903 tel (607) 723–3512 -U.S. toll-free (888) 979–3737 -fax (607) 772–3308 -www.mcintoshlabs.com Specifications Dimensions include metal grille cover. T he WS320 is a high-performance, two-way in-wall speaker with an integral sealed aluminum enclosure. The sealed enclosure enables deep bass output from the 8-inch woofer in the listening room, while mini- mizing wall transmission into adjoining rooms. No addi- tional back box is required. The patented McIntosh LD/HP® driver significantly reduces bass distortion while increasing power handling. At just four inches deep, the WS320 fits within any stan- dard wall, its grille and frame extending just a half inch past flush. Finished in a white primer coat, the WS320 is designed to be painted to match the surrounding decor. Perfect for applications where space and style are primary considerations, the WS320 will be popular in home the- aters as well as multiroom systems. In addition, its tonal qualities are carefully matched to those of the LS, CS, and HT Academy models, making a variety of combinations possible. Academy WS320 In-Wall Loudspeaker 0601.WS320/350.10k.MSP - In-wall, two-way, sealed enclosure - One 8" LD/HP ®woofer/midrange - One 1" dome tweeter - Polyswitch Protection - Paintable white primer coat finish - Shipped individually Anechoic Response 60Hz to 20kHz, ±2dB Sensitivity (2.8V/1m) 86dB Nominal Impedance 4 ohms Drivers (1) 8" LD/HP woofer/mid (1) 1" dome tweeterCrossover Frequency 1.5 kHz Power Handling 200 watts maximum Dimensions (h x w x d) inch: 23.5 x 14.0 x 3.65 cm: 59.7 x 35.6 x 9.3 (fully assembled) Weight 22 lbs. (10.0kg) net ea. 29 lbs. (13.2kg) boxed ea. WS320 2-WAY IN-WALL WS350 3-WAY IN-WALL - In-wall, three-way, sealed enclosure - One 8" LD/HP ®woofer - One 4" LD/HP®midrange - Five 1" dome tweeters in a Bessel Function array - Polyswitch Protection - Paintable white primer coat finish - Shipped individually Anechoic Response 60Hz to 20kHz, ±2dB Sensitivity (2.8V/1m) 86dB Nominal Impedance 4 ohms Drivers (1) 8" LD/HP woofer (1) 4" LD/HP midrange (5) 1" dome tweetersCrossover Frequencies 300 Hz, 1.5 kHz Power Handling 200 watts maximum Dimensions (h x w x d) inch: 23.5 x 14.0 x 3.65 cm: 59.7 x 35.6 x 9.3 (fully assembled) Weight 25 lbs. (11.4kg) net ea. 32 lbs. (14.5kg) boxed ea.
