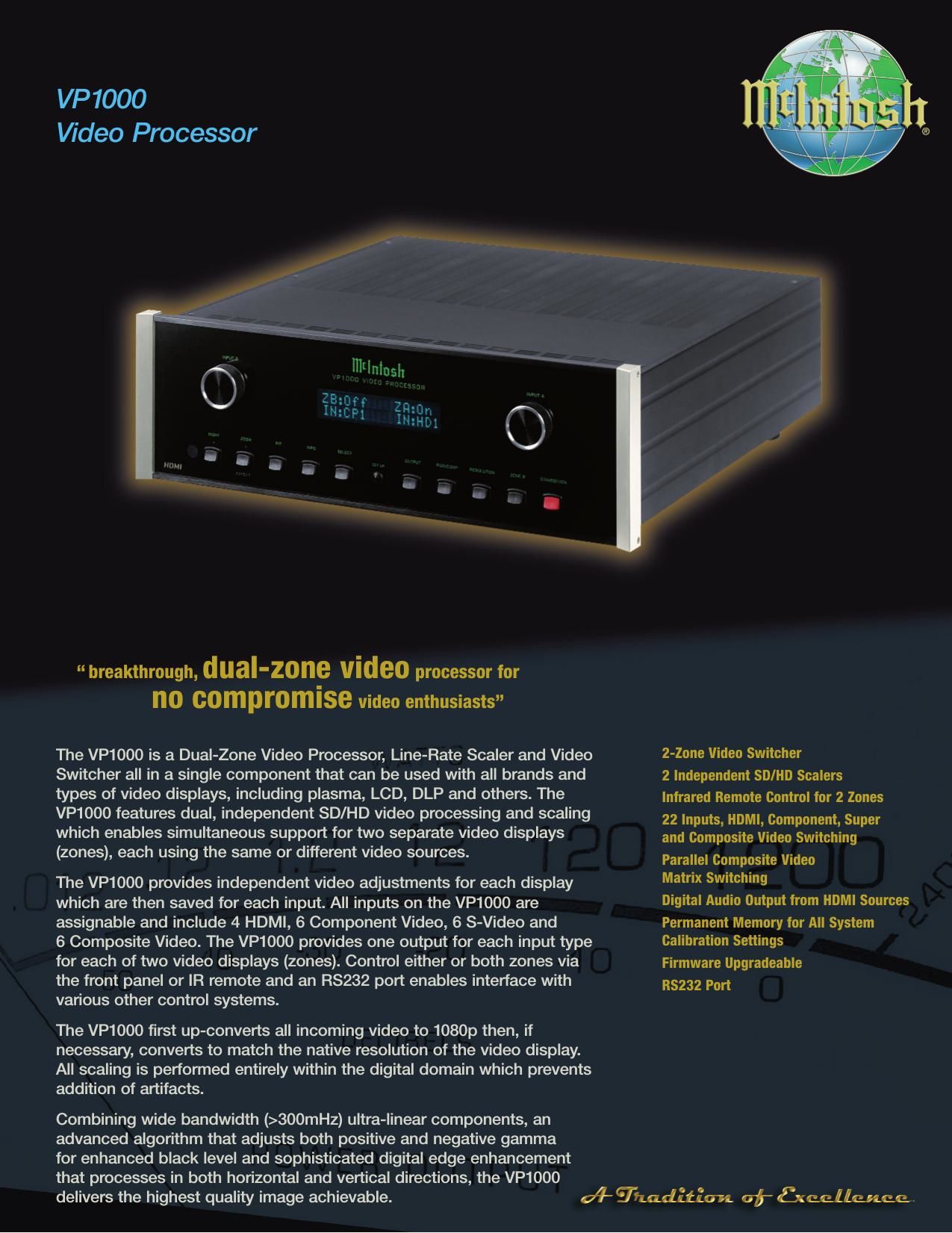

For the Consumers Protection: In order to ensure the highest level of customer satisfaction, newMcIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be usedand do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. 8.07.VP1000.20K 35009600 McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699 Tel (607) 723-3512 - US Toll-Free (800) 538-6576 - Fax: (607) 724-0549 - www.mcintoshlabs.com VP1000 Video Processor 2-ZONE VIDEO SWITCHER WITH INDEPENDENT SCALERS Any and all 22 inputs are available for the main zone (Zone A, ZA), and the secondary zone (Zone B, ZB). TWO SD/HD VIDEO SCALERS Independent scalers convert the images to any displays native resolutions, with assignable analog and digital (HDMI) Inputs. PARALLEL COMPOSITE VIDEO MATRIX SWITCHING Unprocessed composite video input/outputs can be assigned to switch in parallel with scaled video. This allows non- HDCP SD video from a DVD player or other source to be viewed on a local monitor. COMPANION PRODUCT The MDLP1 Projector is a logical companion for the VP1000. Your Authorized Dealer can provide additional information on other McIntosh product combinations. ANALOG VIDEO SPECIFICATIONS SIGNAL SYSTEM NTSC, PAL COMPONENT VIDEO INPUT/OUTPUT LEVEL Y – 1.0Vp-p (75 OHM) PB – 0.648Vp-p (75 OHM) PR – 0.7Vp-p (75 OHM) COMPONENT VIDEO INPUT/ OUTPUT RESOLUTION 720x480i thru 1920x1080i COMPONENT VIDEO INPUT COLOR PROCESSING MODE YPBPR COMPONENT VIDEO OUTPUT COLOR PROCESSING MODE YPBPR or RGBHV S-VIDEO INPUT/OUTPUT LEVELY – 1Vp-p (75 OHM); C – 0.286Vp-p (75 OHM) S-VIDEO INPUT/ OUTPUT RESOLUTION 720x480i COMPOSITE VIDEO INPUT/ OUTPUT LEVEL 1Vp-p (75 OHM) COMPOSITE VIDEO INPUT/ OUTPUT RESOLUTION 720x480i DIGITAL VIDEO SPECIFICATIONS SIGNAL SYSTEM AND VERSION HDMI 1.1 HDMI INPUT/OUTPUT COLOR PROCESSING MODEYCBCR or RGB HDMI INPUT RESOLUTION720x480i thru 1920x1080i* *The VP1000 will accept a 1920x1080p input signal for processing and may be selected for either Zone A or Zone B HDMI Monitor Output (but not both simultaneously). HDMI OUTPUT RESOLUTION720x480i thru 1920x1080p DIGITAL AUDIO SPECIFICATIONS DIGITAL OUTPUT Optical: -15dbm to -21dbm GENERAL SPECIFICATIONS POWER REQUIREMENTS 100, 110, 120, 220, 230 and 240 Volts, 50/60Hz at 50 watts. OVERALL DIMENSION (H x W x D)6" (15.2cm) x 17-1/2" (44.5cm) x 21" (45.7cm) including the front panel, knobs and cables WEIGHT21.1 pounds (9.59 kg) net, 37.5 pounds (17.05 kg) in shipping carton
