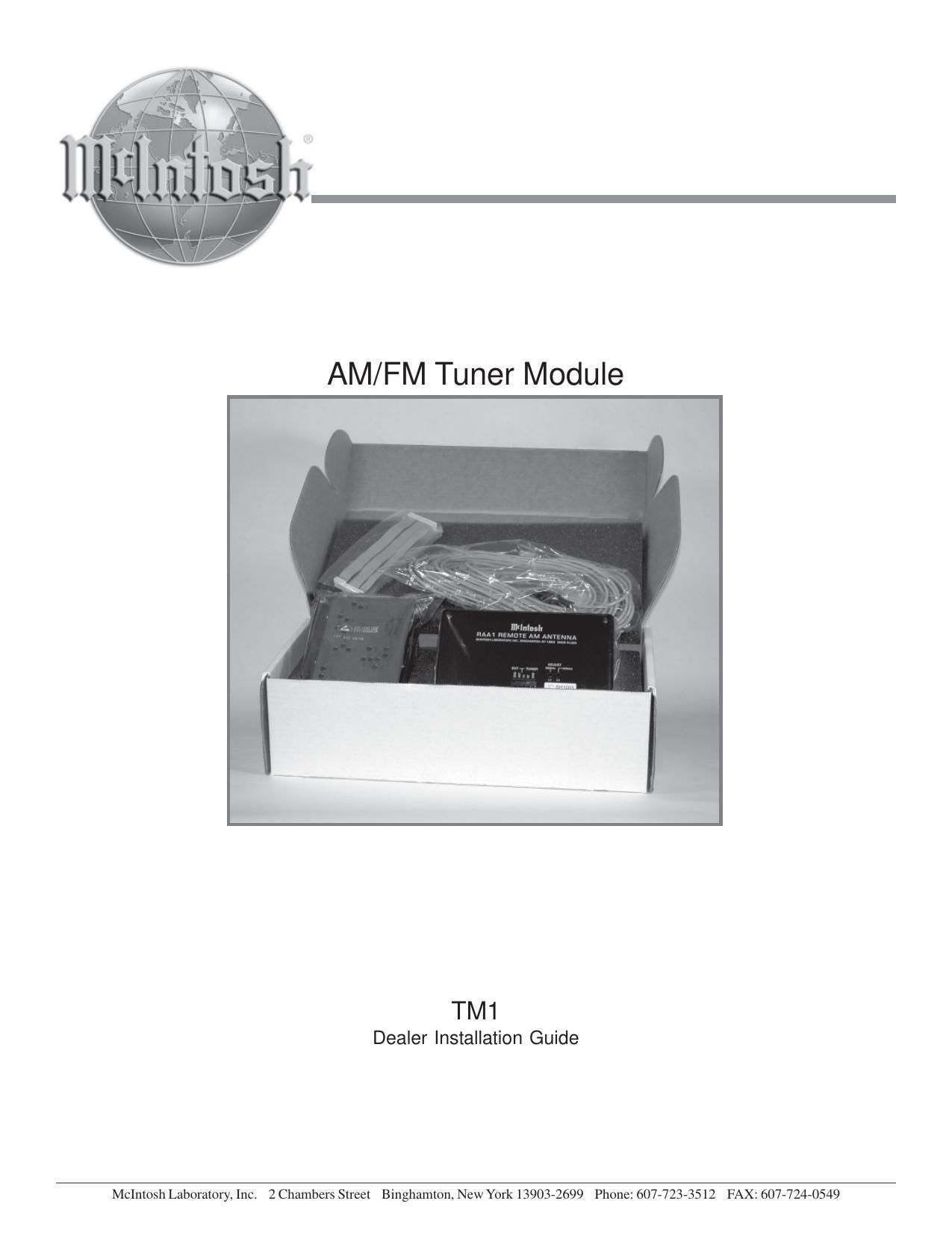

McIntosh TM 1 Owners Manual
This is the 12 pages manual for McIntosh TM 1 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh TM 1 Owners Manual (Ocr-read)
Page 1
2 Important Information 1. Caution: To prevent the risk of electric shock, first remove the AC Power Cord from the back of the MX119, MX134, MX135, MHT Series, C45, MR85 or other McIntosh Component before removing the top cover. 2. Some of the semiconductor devices (CMOS and NMOS) used in the TM1 Module, MX119, MX134, MX135, MHT Series, C45, MR85 and other McIntosh Components are inherently sensitive to static electricity even when connected in a circuit, and can be permanently damaged by a static electricity discharge. When handling the TM1 and working inside the MX119, MX134, MX135, MHT Series, C45, MR85 or other McIntosh Components, follow the procedures below to insure against static electricity damage. A. Make sure the MX119, MX134, MX135, MHT Series, C45, MR85 or other McIntosh Components are properly grounded. B. Use an approved wrist strap that is grounded. C. Remove the TM1 from the Anti-Static Bag and work with it only after the above conditions have been met. D. The RAA1 Remote AM Antenna contains the Tuned AM RF Amplifier First Stage Circuitry and is matched to the specific AM/FM Tuner Module. 3. Some of the Installation Instructions in this Dealer Installation Guide are also used for other McIntosh Components. To identify the appropriate Installation Instructions, refer to the label located on the Connector Cover metal plate inside the McIntosh Component. During the installation process this cover is removed, allowing for the AM and FM Antenna Connections. Overview The McIntosh TM1 AM/FM Tuner Module adds AM/FM Broadcast Reception to the MX119, MX134 or MX135 A/V Control Centers; the MHT Series A/V System Control- lers, C45 Audio Control Center and other McIntosh Com- ponents. It also adds functionality of a second Tuner to the MR85 AM/FM Tuner. Follow the instructions in this guide for installing the TM1 into the MX119, MX134, MX135, MHT Series, C45, MR85 and other McIntosh Components. The TM1 Tuner Module is not a user installable product. It must be installed by the Technical Professionals at your McIntosh Dealer. Table of Contents Overview........................................................................... 2 Please Take a Moment ...................................................... 2 Technical Assistance and Customer Service ..................... 2 Important Information....................................................... 2 Table of Contents .............................................................. 2 Parts List ........................................................................... 3 Connector Information...................................................... 3 MX119, MX134 or MX135 Installation Instructions ....... 4 MHT Series Installation Instructions ................................ 6 C45 Installation Instructions ............................................. 8 MR85 Installation Instructions ....................................... 10 Technical Assistance If at any time you have questions about installing and/or operating the TM1 AM/FM Tuner Module, contact McIn- tosh for technical assistance at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-1545 Fax: 607-772-3308 Copyright 2005 © by McIntosh Laboratory, Inc. Customer Service If it is determined that your McIntosh product is in need of repair, you can return it to your Dealer. You can also return it to the McIntosh Laboratory Service Department. For as- sistance on factory repair return procedure, contact the McIntosh Service Department at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3515 Fax: 607-723-1917 Please Take A Moment The serial number, installation date and Dealer name are important to you for possible insurance claim or future ser- vice. The spaces below have been provided for you to record that information: Serial Number: Installation Date: Dealer Name:
Page 2
3 RAA1 Connectors Connect the shield and two leads of a shielded 2 conductor cable to the supplied 5 Pin Terminal Connector Plug. Refer to the connection information on the top cover of the RAA1. If there is need to make-up a longer cable, use a two con- ductor shielded wire and the connectors below. 5 PinTerminal Connector 1. N/C 2. N/C 3. Red Wiire 4. Black Wire 5. Green Wire (Shield) 7 Pin DIN Connector 1. Red Wire 2. Black Wire 3. N/C 4. N/C 5. N/C 6. Jumper from Pin 7 7. Green Wire (Shield) and Jumper to Pin 6 Parts List Part Number Description Figure Number 049084 AM/FM Tuner Module 1 034134 Anti-Static Bag 1 049192 RAA1 Remote AM Antenna 2 049443 RAA1 Connection Cable Complete 2 171404 Seven conductor ribbon cable 1 171405 Six conductor ribbon cable 1 171406 Four conductor ribbon cable 1 TM1 Serial Number Label 1 Connector Information Parts List and Connector Information Figure 2 RAA1 Remote AM Antenna RAA1 Connection Cable Figure 1 AM/FM Tuner Module Anti-Static Bag Tuner Module Connecting Cables TM1 Serial Number Label RedBlack Green 15
