McIntosh ST 27 Owners Manual

Page 1

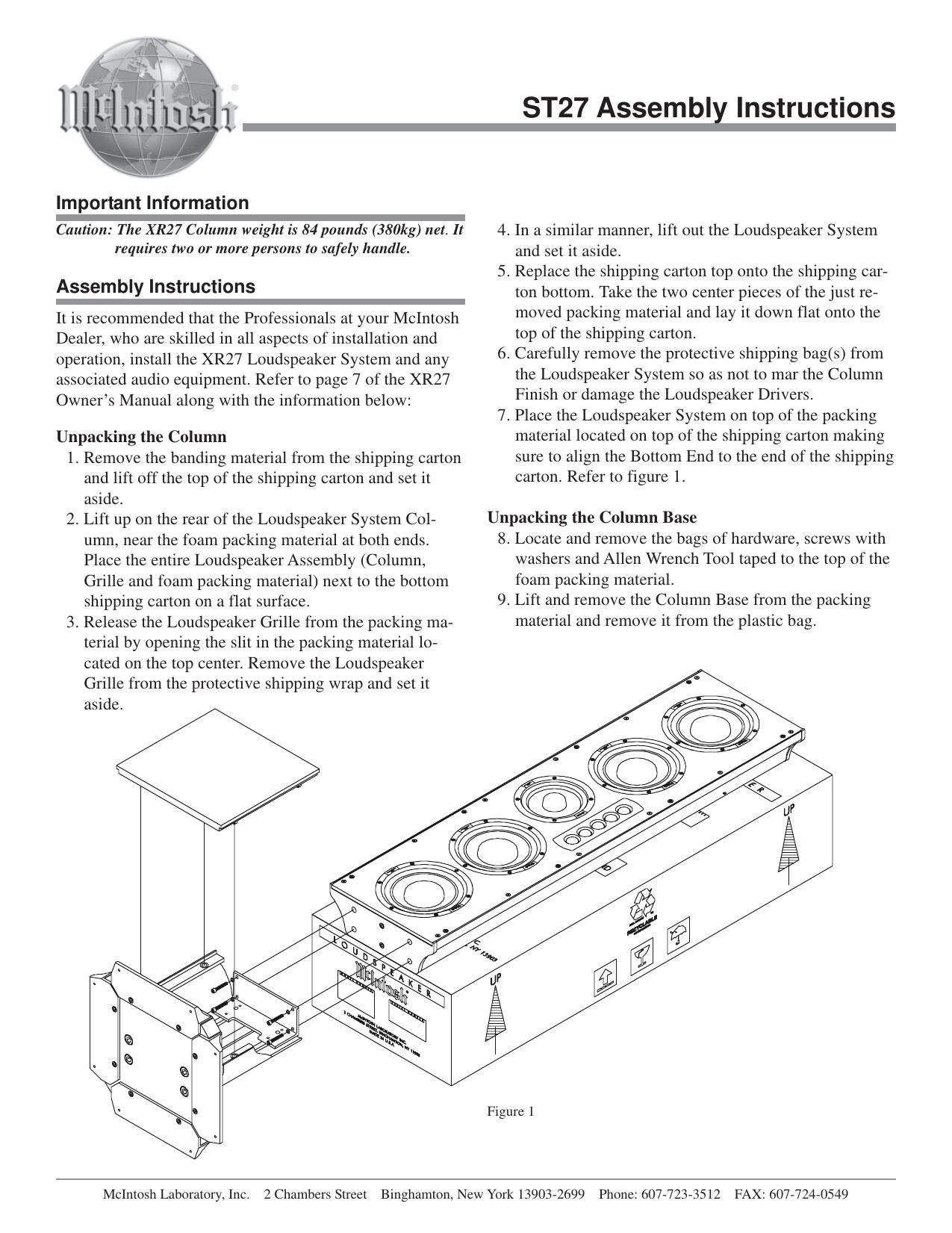

TiptoesGlides Figure 2 Assembling the Column 10. Using the supplied Allen Wrench, remove two screws from each side of the Loudspeaker Bottom. Refer to figure 1. 11. Remove the Front Cover from the Column Base and set it aside. 12. Orient the Column Base so the metal extrusion lines up with the Loudspeaker System extrusion. 13. Attach the Column Base to the Loudspeaker System using the four supplied machine bolts and washers. Refer to figure 1. 14. Align the Grille fastening pins to the Column Grom- mets (there are four pins on each side). Carefully push down to secure the Grille to the Loudspeaker. 15. Reattach the previously removed Front Cover to the Column Base. Optional Feet 16. One set of optional feet (eight Tiptoes and eight Glides) are supplied with the ST27 Column Base. To prevent crushing carpet use the Tiptoe Spikes; to protect non-carpeted flooring use the Chrome Glides. Both the Glides and Tiptoes have a threaded shaft and locking nut that screw into the tapped holes in the bottom of the ST27s base rails. The feet can be independently adjusted to compensate for uneven flooring. Refer to figure 2. 17. Stand the Column upright. 18. Proceed to page 10 of the XR27 Owners Manual for placing the XR27 Loudspeaker System in a room. McIntosh Part No. 040886McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, NY 13903
