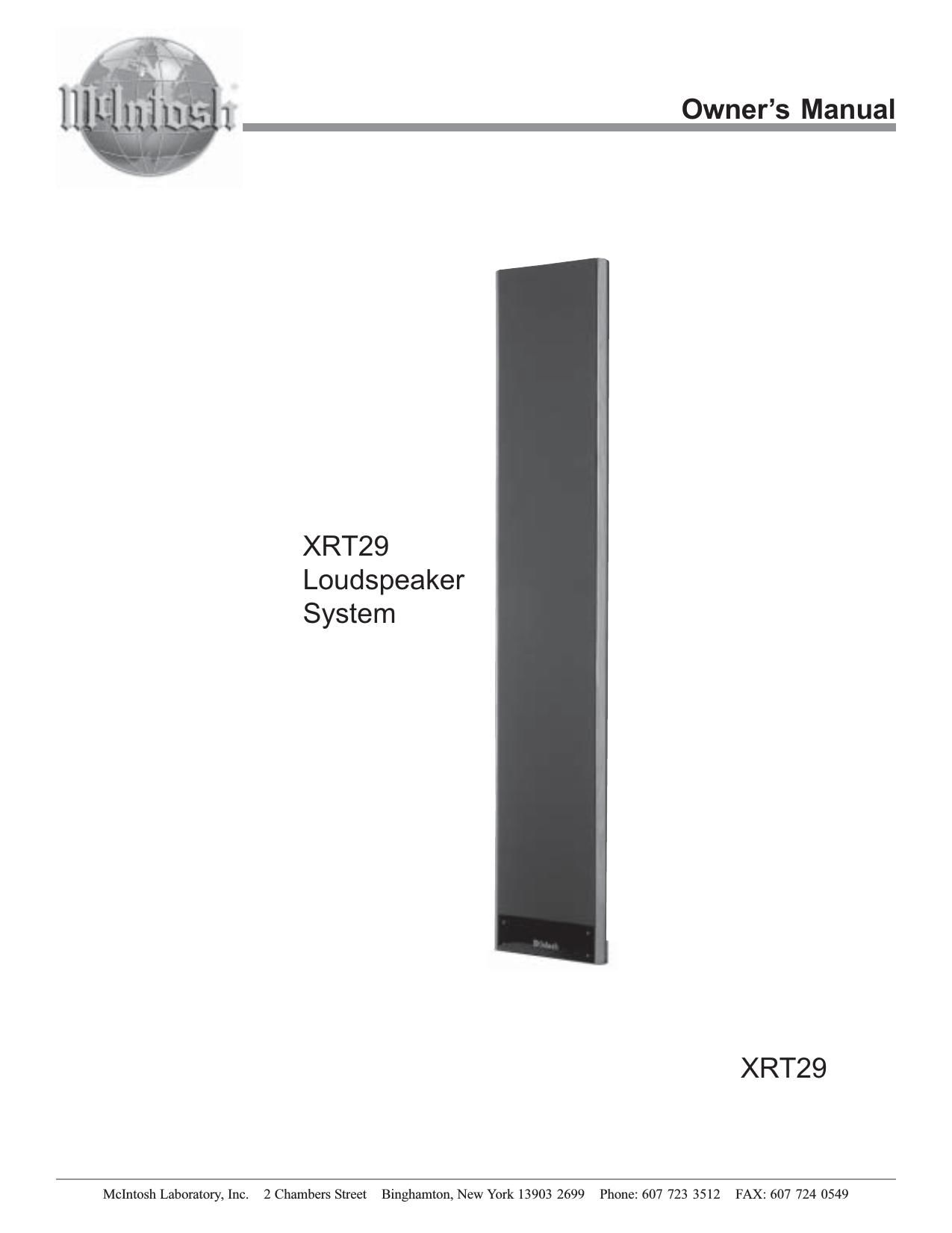

McIntosh RT 29 Owners Manual
This is the 16 pages manual for McIntosh RT 29 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh RT 29 Owners Manual (Ocr-read)
Page 1
2 IMPOR T ANT SAFETY INSTRUCTIONS! PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT.WARNING - TO REDUCE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. General: 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Warning: To reduce risk of fire or electrical shock, do not expose this equipment to rain or moisture. This unit is capable of producing high sound pres- sure levels. Continued exposure to high sound pres- sure levels can cause permanent hearing impair- ment or loss. User caution is advised and ear pro- tection is recommended when playing at high vol- umes. 6. Only use attachments/accessories specified by the manufacturer. Installation: 7. Install in accordance with the manufacturers instruc- tions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other equipment (including amplifiers) that produce heat. 9. Do not use this equipment near water. 10. Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment. 11. Use only with the cart, stand, tripod, bracket, or table specified by the manufac- turer, or sold with the equipment. When a cart is used, use caution when moving the cart/equipment combination to avoid in- jury from tip-over. Care of Equipment: 12. Clean only with a dry cloth. 13. Do not permit objects or liquids of any kind to be pushed, spilled and/or fall into the equipment through enclosure openings. Repair of Equipment: 14. Refer all servicing to qualified service personnel. Ser- vicing is required when the equipment has been dam- aged in any way, liquid has been spilled or objects have fallen into the equipment, the equipment has been ex- posed to rain or moisture, does not operate normally, or has been dropped. 15. Do not attempt to service beyond that described in the operating instructions. All other service should be re- ferred to qualified service personnel. 16. When replacement parts are required, be sure the ser- vice technician has used replacement parts specified by McIntosh or have the same characteristics as the origi- nal part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 17. Upon completion of any service or repairs to this prod- uct, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
Page 2
3 Customer Service Technical Assistance Please Take A Moment Thank You Copyright 2003 by McIntosh Laboratory, Inc. The serial number, purchase date and McIntosh Dealer name are important to you for possible insurance claim or future service. The spaces below have been provided for you to record that information: Your decision to own this McIntosh XRT29 Loudspeaker System ranks you at the very top among discriminating music listeners. You now have The Best. The McIntosh dedication to Quality, is assurance that you will receive many years of musical enjoyment from this unit. Please take a short time to read the information in this manual. We want you to be as familiar as possible with all the features and functions of your new McIntosh. Serial Number: Purchase Date: Dealer Name: If it is determined that your McIntosh product is in need of repair, you can return it to your Dealer. You can also return it to the McIntosh Laboratory Service Department. For as- sistance on factory repair return procedure, contact the McIntosh Service Department at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3515 Fax: 607-723-1917 If at any time you have questions about your McIntosh product, contact your McIntosh Dealer who is familiar with your McIntosh equipment and any other brands that may be part of your system. If you or your Dealer wish ad- ditional help concerning a suspected problem, you can re- ceive technical assistance for all McIntosh products at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-1545 Fax: 607-723-3636 Safety Instructions ............................................................. 2 Thank You and Please Take a Moment ............................. 3 Technical Assistance and Customer Service ..................... 3 Table of Contents and Important Information ................... 3 Introduction .................... ................................................... 4 Performance Features ........................................................ 5 Dimensions ........................................................................\ 6 Installation ........................................................................\ . 8 How to Connect using a single amplifier ........................ 10 How to Connect using two amplifiers ............................. 12 Specifications .................................................................. 14 Packing Instruction .......................................................... 15 Table of Contents Important Information Caution: The XRT29 High Frequency Column weight is 82 pounds (37.20kg) net . It requires two or more persons to safely handle the column. 1. Loudspeaker Cables of adequate size are important to ensure that there will be no significant power loss or heating. Cable size is specified in Gauge numbers or AWG (American Wire Gauge). The smaller the Gauge number, the larger the wire size: If the Loudspeaker Cables are 25 feet (7.62m) or less, use at least 18 Gauge (AWG) wire size or larger. If the Loudspeaker Cables are 50 feet (38.1m) or less, use at least 14 Gauge (AWG) wire size or larger. If the Loudspeaker Cables are 100 feet (76.2m) or less, use at least 12 Gauge (AWG) wire size or larger. The Loudspeaker Connection Terminals can accept up to 12 Gauge (AWG) wire. 2. For additional connection information, refer to the owner smanual(s) for any component(s) connected to the XRT29 Loudspeaker. 3. The XRT29 has built in speaker protection in the form of three automatic resetting solid state devices as part of the crossover networks. Two protect the tweeters and one for the midranges drivers. The characteristics of this protection are that a certain amount of overdrive is allowed but extended periods of overdrive will trigger protection. If an obvious lack of high or mid frequencies is noticed, the Loudspeaker Protection Device may have activated. The protection devices will automatically reset when the volume control is reduced significantly and kept low until the output of the affected Loudspeaker Element returns to normal. 4. When the XRT29 Loudspeaker System is driven by more than one amplifier, the output levels of the different amplifiers connected to the Loudspeaker System must be adjusted to achieve a proper balance between the midrange and high frequencies reproduced. This adjustment is best achieved through the use of audio test equipment operated by a qualified installer. 5. The XRT29 is designed to be used with a Subwoofer, like a McIntosh PS112, in order to hear the entire audible range of sound.
