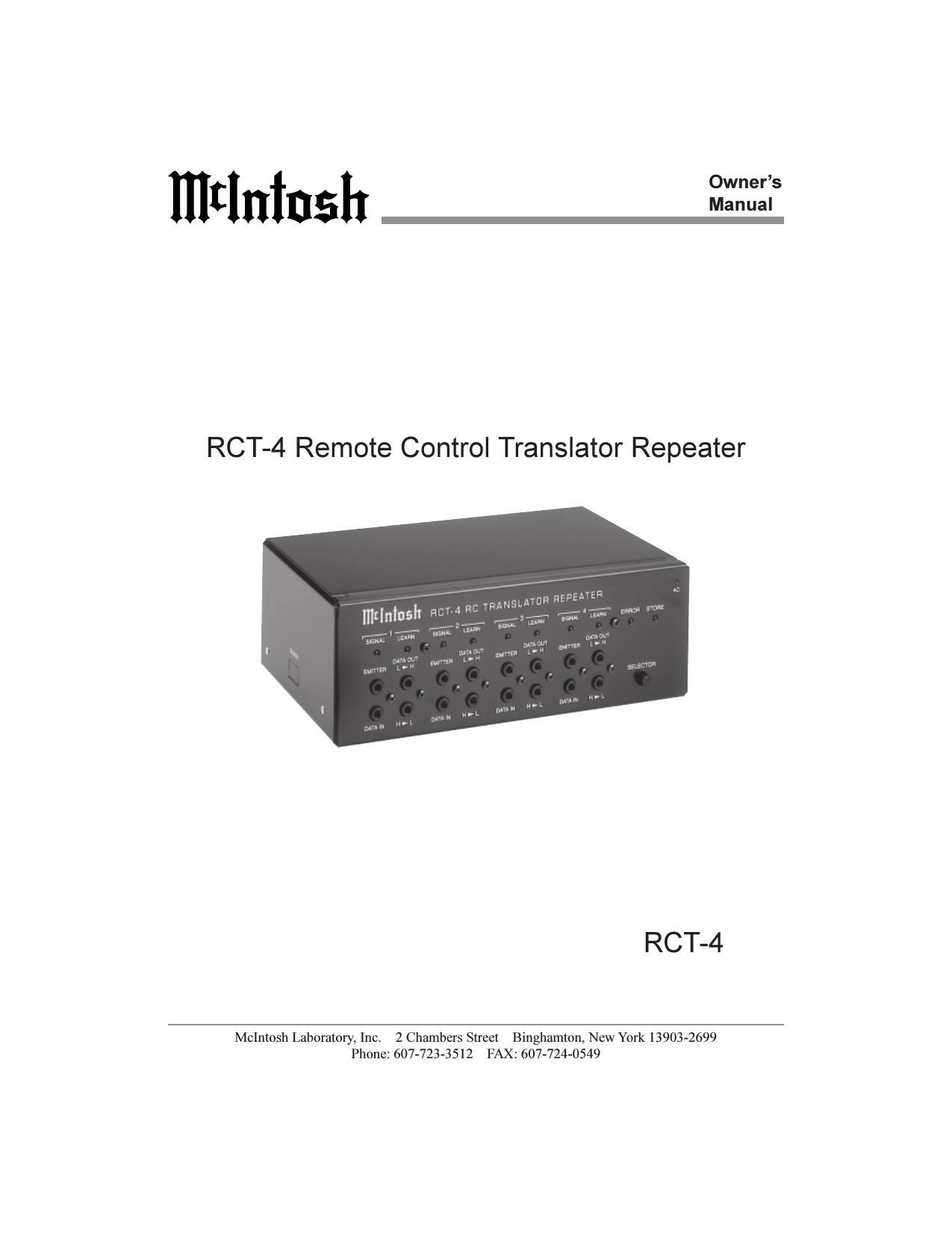

RCT-4 Remote Control Translator Repeater

RCT-4

McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699
Phone: 607-723-35 12 FAX: 607-724-0549

Page 2

IIItInins-II

Thank You

Thank you for your decision to own this
McIntosh RCT»4 Remote Control Transla-
tor Repeater. The Mclntosh dedication to
Quality, is assurance that it will provide
you with many years of enjoyment.

Please take time to read this manual, as
it will help you to become more familiar
with your new McIntosh.

Please Take A Moment

The serial number, purchase date and
dealer name are important for possible in-
surance claim or future service. The spaces
below have been provided to record that
information:

Serial Number:

Purchase Date:
Dealer Name:

Technical Assistance

If you have questions about this product,
contact your McIntosh Dealer who is more
familiar with your component system. If
additional help is needed, you can receive
technical assistance at:

McIntosh Laboratory, Inc.

2 Chambers Street
Binghamton, New York 13903
Phone: 607-723-3512

Fax: 607-723-3636

Customer Service

-
If your McIntosh product is in need of re-
pair, it can returned to your dealer or the
McIntosh Service Department. For assis-

tance on repair return procedure, contact
the McIntosh Service Department at:

McIntosh Laboratory, Inc.

2 Chambers Street
Binghamton, New York 13903
Phone: 607-723-3515

Fax: 607-723-1917

Table of Contents

Thank You, Please Take a Moment,
Technical Assistance and

Customer Service .................................. 2
Table of Contents and General Notes 2
Safety Instructions ................................ 3
Introduction ................... 5
Performance Features .. 5
Dimensions and Installation ................. 6
Front and Rear Panel Connections ....... 7

Front Panel Connections... 9
Rear Panel Connections. 11
Front Panel Display and Push-Button 12
How to Operate. .. 13
Specifications and Packing

Instructions

General Notes

I. The Data Control Cable is available from
the McIntosh Parts Department:

Data Control Cable Part No. 1 70-202
Six foot, 2 conductor Shielded, with two
1/8 inch stereo mini phone plugs.

2. Additional IR Emitters, Item No. R826, are
available from the McIntosh Sales
Department.

3. For additional connection information,
refer to the owner Is manual (s) for any
component(s) connected to the RC T-4.

Copyright 2000 © by McIntosh Laboratory, Inc.

Page 19

Specifications and Packing Instructions

Specifications

Power Requirements
12 Volts, D.C. @lOOmA

Dimensions

8-9/16 inches (21.74cm) Wide, 3-1/16
inches (7.78cm) High, 5-5/16 inches
(13.49cm) Depth

Weight
3.8 pounds (1.7 Kg) net, 4.5 pounds (2 Kg)
shipping

Packing Instructions
-

In the event it is necessary to repack the
equipment for shipment, use the original
shipping carton and interior parts only if
they are all in good serviceable condition.
If a shipping carton or the interior bubble
pack is needed, please call or write Cus-
tomer Service Department of McIntosh
Laboratory. Please see the Part List for the
correct part numbers.

Quantity Part Number Description
1 033719 Shipping carton
1 033085 Bubble Pack
