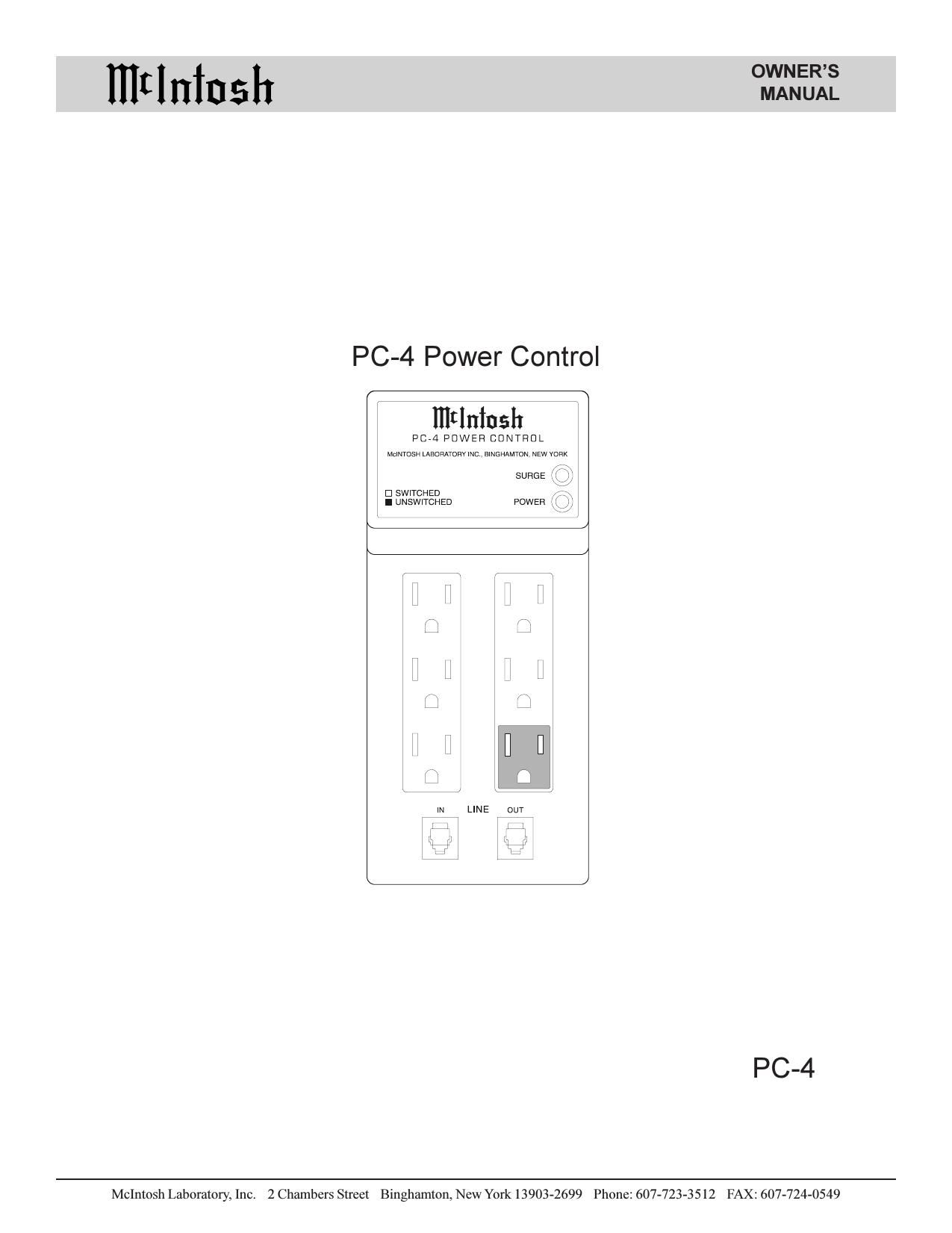

McIntosh PC 4 Owners Manual
This is the 8 pages manual for McIntosh PC 4 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh PC 4 Owners Manual (Ocr-read)
Page 1
2 Thank You .......................................................................... 2 Please Take a Moment ....................................................... 2 Customer Service ............................................................... 2 Table of Contents ............................................................... 2 Notes .................................................................................. 2 Safety Instructions ............................................................. 3 Introduction ....................................................................... 4 Performance Features ........................................................ 4 Installation ......................................................................... 4 Front Panel Connections, End Panel Push-Button and Connections .......................... 5 How to Connect ................................................................. 6 Important Operating Instructions ...................................... 7 Specifications .................................................................... 7 Thank You, Please Take A Moment, Technical Assistance, Customer Service, Table of Contents and Notes Thank You Table of Contents 1. Connecting Cables are available from the McIntosh Parts Department: Power Control Cable Part No. 170-202 Six foot, shielded 2 conductor, with 1/8 inch stereo mini phone plugs on each end. 2. For additional connection information, refer to the owners manual(s) for any component(s) connected to the PC-4 Power Control. Notes Technical Assistance Customer Service Copyright 1998 ã by McIntosh Laboratory, Inc. Please Take A Moment The purchase date and McIntosh dealer name are important to you for possible insurance claim or future service. The spaces below have been provided for you to record that in- formation: Your decision to own this McIntosh PC-4 Power Control ranks you at the very top among discriminating music lis- teners. You now have The Best. The McIntosh dedication to Quality, is assurance that you will receive many years of enjoyment from this unit. Please take a short time to read the information in this manual. We want you to be as familiar as possible with all the features and functions of your new McIntosh. Purchase Date: Dealer Name: If at any time you have questions about your McIntosh product, contact your McIntosh dealer who is familiar with your McIntosh equipment and any other brands that may be part of your system. If you or your dealer wish addi- tional help concerning a suspected problem, you can re- ceive technical assistance for all McIntosh products at: McIntosh Sales Corporation 661 W. Redondo Beach Blvd. Gardena, CA 90247 Phone: 888-979-3737 Fax: 310-217-9288 If it is determined that your McIntosh product is in need of repair, you can return it to your dealer. You can also return it to the McIntosh Laboratory Service Repair department. For assistance on factory repair return procedure, contact the McIntosh Repair Department at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3515 Fax: 607-723-1917
Page 2
3 IMPOR TANT SAFETY INSTRUCTIONS! PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT. Safety Instructions General: 1. Read all the safety and operating instructions, con- tained in this owners manual, before operating this equipment. 2. Retain this owners manual for future reference about safety and operating instructions. 3. Adhere to all warnings and operating instructions. 4. Follow all operating and use instructions. 5. Warning: To reduce risk of fire or electrical shock, do not expose this equipment to rain or moisture. 6. Caution: to prevent electrical shock do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully in- serted to prevent blade exposure. Attention: pour pevenir les chocs elecriques pas utiliser cette fiche polarisee avec un prolongateur, une prise de courant ou un autre sortie de courant, sauf si les lames peuvent etre inserees afond ans en laisser aucune partie a decouvert.Installation: 7. Locate the equipment away from heat sources such as radiators, heat registers, stoves, or other appliance that produce heat. 8. Mount the equipment in a wall or cabinet only as de- scribed in this owners manual 9. Do not use this equipment near water; for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc. Connection: 10. Connect this equipment only to the type of AC power source as marked on the unit. 11. Route AC power cords so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, con- venience receptacles, and the point where they exit from the instrument. 12. Do not defeat the inherent design features of the polar- ized plug. Non-polarized line cord adapters will defeat the safety provided by the polarized AC plug. If the plug should fail to fit, contact your electrician to re- place your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug. 13. Do not overload wall outlets, extension cords or inte- gral convenience receptacles as this can result in a risk of fire or electric shock. Care of Equipment: 14. Clean the instrument by dusting with a dry cloth. Un- plug this equipment from the wall outlet and clean the panel with a cloth moistened with a window cleaner. Do not use liquid cleaners or aerosol cleaners. 15. Do not permit objects of any kind to be pushed and/or fall into the equipment through enclosure openings. Never spill liquids into the equipment through enclo- sure openings. 16. Unplug the power cord from the AC power outlet when left unused for a long period of time. Repair of Equipment: 17. Unplug this equipment from the wall outlet and refer servicing to a qualified service personnel under the fol- lowing conditions: A. The AC power cord or the plug has been damaged. B. Objects have fallen, or liquid has been spilled into the equipment. WARNING SHOCK HAZARD - DO NOT OPEN. The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to consti- tute a risk of electric shock to persons . AVIS RISQUE DE CHOC - NE PAS OUVRIR. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL To prevent the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified personnel.
