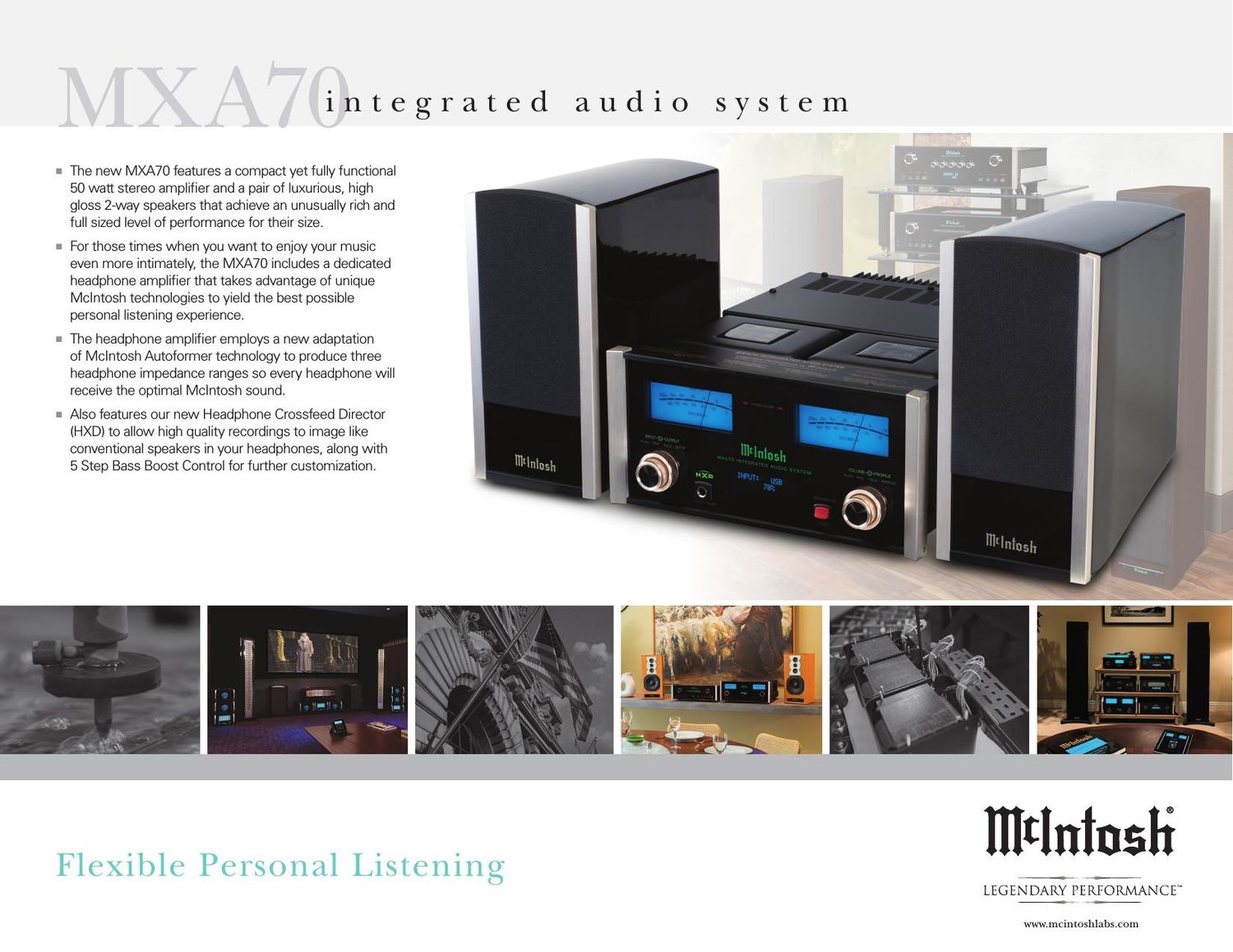

Page 1
www.mcintoshlabs.com Companion ProductsYour Authorized Dealer can provide additional information on other McIntosh products. To learn more, please call us at 1.800.538.6576. 35101900 M X A70 integrated audio system AMPLIFIER SPECIFICATIONS Amplifier Power Output:50 watts per channel with both channels operating into 8 Ohms Total Harmonic Distortion:0.005% maximum from 20Hz to 20kHz Inputs:One high level unbalanced (stereo)One high level balanced (stereo)Four digital (see Digital Section) Outputs:One set of stereo speaker terminals (8 Ohms) One headphone (1/4)One preamplifier (stereo) Digital Section:One dedicated USBOne coax and one optical PCMOne AES/EBUMcIntosh Digital Engine is 32 bit 192kHz, USB 2.0 asynchronous Tone Controls:5 Step Bass Boost Control Headphone Power Output:High Selection: 1WNormal Selection: 250mW Headphone Output Impedance:8-40, 40-150 and 150-600 Ohms LOUDSPEAKER SPECIFICATIONS Driver Complement (per speaker):One 4 inch Woofer/MidrangeOne 3/4 inch Dome Tweeter Frequency Response:60Hz - 45kHz Crossover Frequency:2,000Hz GENERAL SPECIFICATIONS Overall Dimensions (W x H x D):22 (55.9cm) x 10-7/8 (27.62cm) x 18 (45.7cm) including knobs, connectors and cables Weight:51 lbs (23.2 kg) net,67 lbs (30.4 kg) in shipping carton For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
