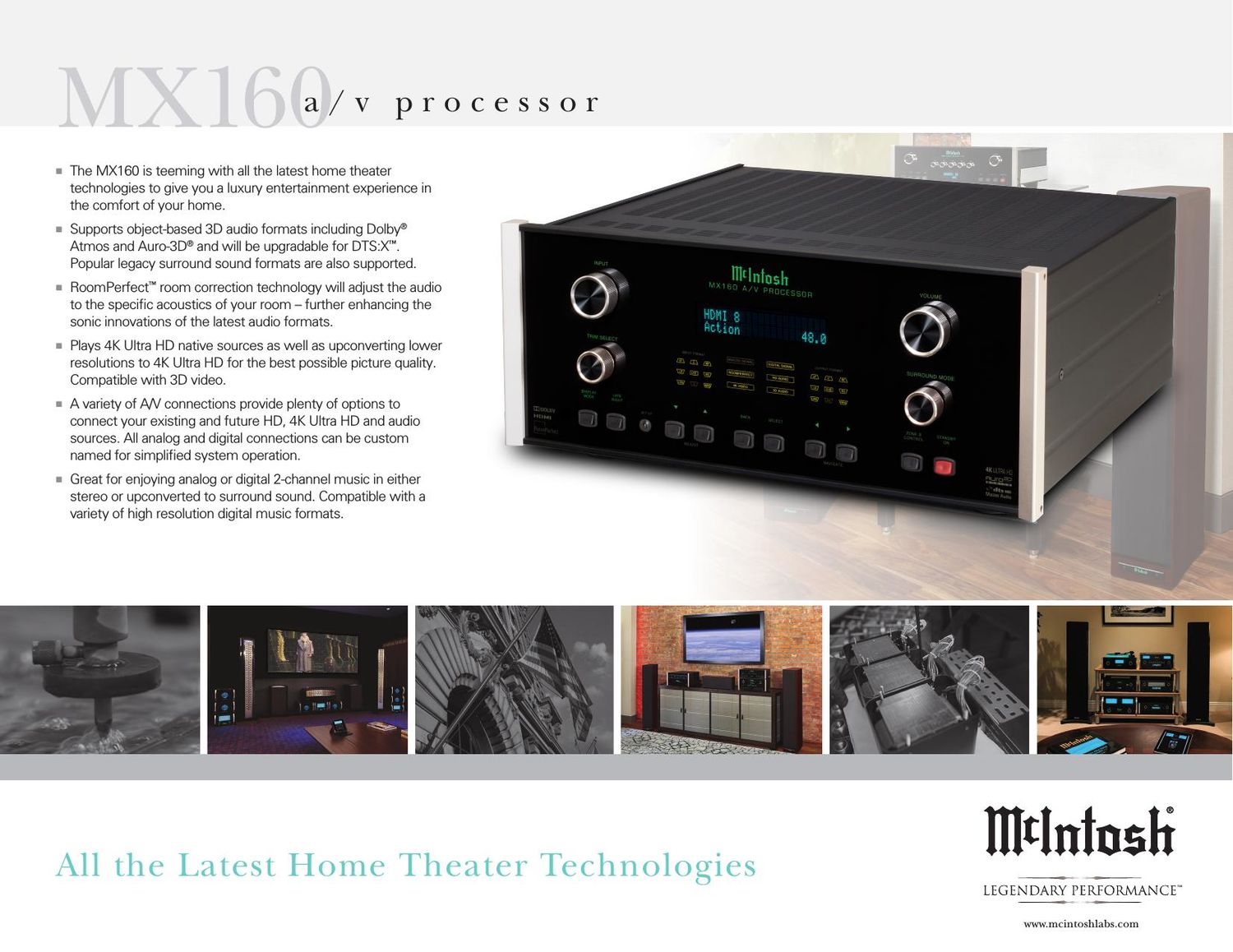

McIntosh MX 160 Brochure

Page 1

www.mcintoshlabs.com Companion ProductsThe MC205, MC207 and MC8207 Power Amplifiers, XRT1K or XR200 Left and Right Channel Speakers, XCS1K or XCS200 Center Channel Speakers, CS100 Surround Speakers and MPC1500 Power Conditioner are logical companions for the MX160 A/V Processor. Your Authorized Dealer can provide additional information on other McIntosh products. To learn more, please call us at 1.800.538.6576. 35103600 Frequency Response:±0.5dB from 20Hz-20kHz Total Harmonic Distortion:0.005% maximum from 20Hz to 20kHz Rated Output Voltage:2.5 Vrms Unbalanced5.0 Vrms Balanced Inputs:8 HDMI (HDCP 2.2)7 Stereo (5 unbalanced + 2 balanced)4 Optical3 Coax1 Multi-channel 7.1 (unbalanced)1 AES/EBU Digital1 USB for digital audio Outputs:16 Balanced (configured for 11.1 plus 4 auxiliary)4 HDMI (HDCP 2.2)1 Coax (for zone B)1 Stereo Analog (unbalanced for zone B)1 HDBaseT Audio Processing:Dolby: Atmos, TrueHD plus legacy formatsDTS: HD Master Audio plus legacy formatsAuro: 3D, Auro-Matic, 9.1, 10.1, 11. 1 Video Processing:4K Ultra HD native sources, upconverting lower resolutions to 4K Ultra HD Control:Remote control (included), network, RS232 Overall Dimensions (W x H x D):17-1/2 (44.45cm) x 7-5/8 (19.37cm) including feet x 19-1/2 (49.53cm) including the front panel, knobs and cables Weight:32 lbs (14.5 kg) net, 56 lbs (25.4 kg) in shipping carton For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased from an Authorized McIntosh Dealer; and, with certain limited exceptions may only be purchased over-the-counter or delivered and installed by the Authorized McIntosh Dealer. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized McIntosh Dealer, or that have had their serial numbers altered or defaced. M X16 0 a/v processor Dolby is a registered trademark of Dolby Laboratories.Auro-3D is a registered trademark of Auro Technologies.DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.RoomPerfect is a registered trademark of Lyngdorf Audio A/S.
