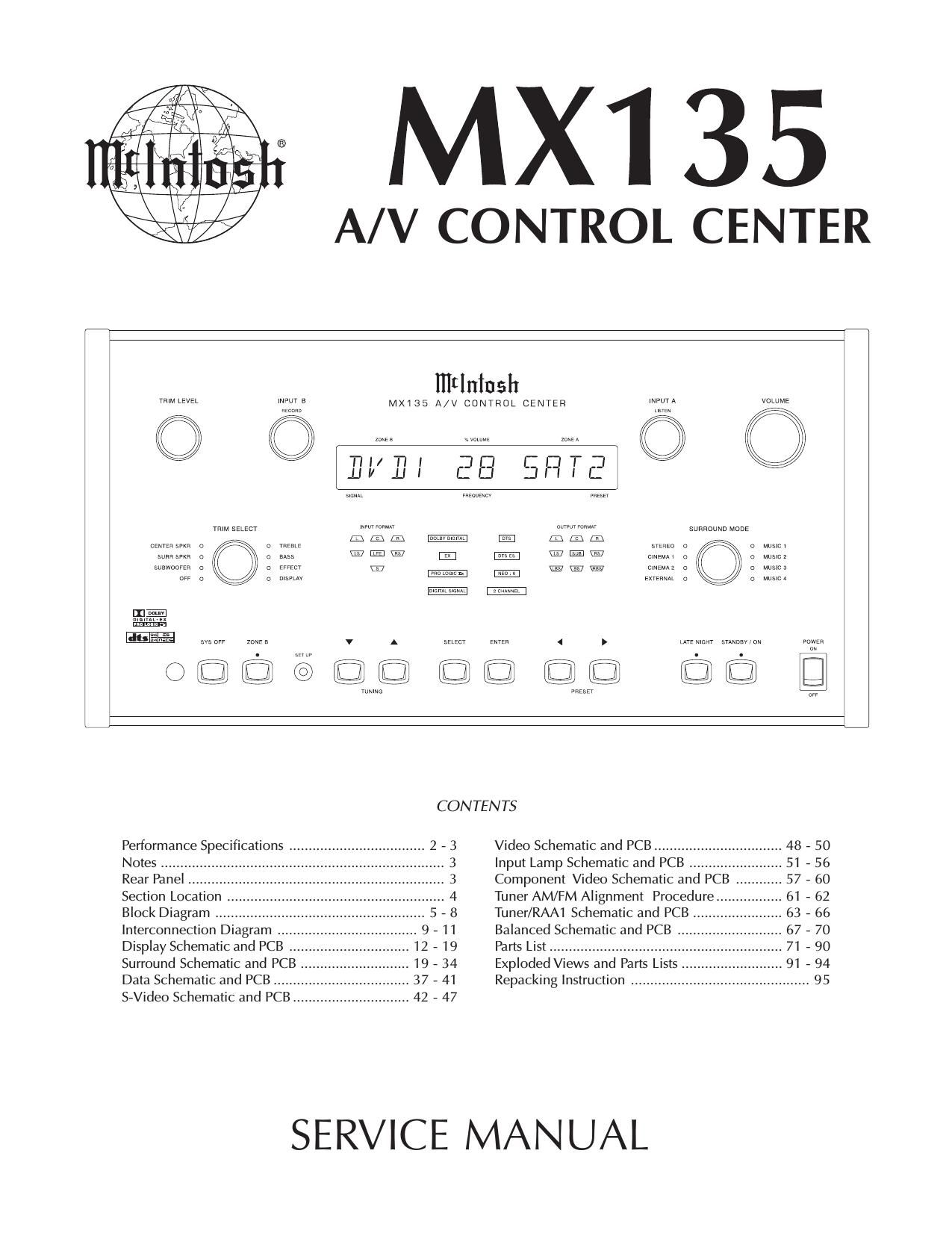

McIntosh MX 135 Service Manual
This is the 44 pages manual for McIntosh MX 135 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh MX 135 Service Manual (Ocr-read)
Page 1
PERFORMANCE SPECIFICATIONS Audio Frequency Response Stereo: Left and Right Small speakers: 80Hz-20,000Hz Subwoofer: 20Hz-80Hz Left and Right Large speakers: 20Hz-20,000Hz Subwoofer: OFF Pro-Logic IIx: (Movie Processing Mode) Left, Center, Right, Small speakers: 80Hz-20,000Hz Surround Small speakers: 80Hz-20kHz Subwoofer: 20Hz-80Hz (Music Processing Mode) Left, Center, Right, Large speakers: 20Hz-20,000Hz Surround Large speakers: 20Hz-20,000Hz Subwoofer: OFF Dolby Digital and DTS: Left, Center, Right, Small speakers: 80Hz-20,000Hz Surround Small speakers: 80Hz-20,000Hz Subwoofer: 20Hz-80Hz Left, Center, Right Large speakers: 20Hz-20,000Hz Surround Large speakers: 20Hz-20,000Hz Subwoofer: 20Hz-80Hz External Input Left, Center, Right, Left Surround, Right Surround: 20Hz-20,000Hz Subwoofer: 20Hz-20kHz (no LP filtering) Rated Output All Modes: 2.0Vrms for full bit digital input Input Impedance 22k ohms Output Impedance 47 ohms at all outputs Maximum Output Voltage 9.5 Vrms Total Harmonic Distortion 0.005% at all outputs Sensitivity Analog Input: 400mV for 2.0V output Signal To Noise Ratio – All Outputs Greater than 90dB un-weighted. Greater than 100dB A weighted. Greater than 98dB CCIR. Maximum Input Signal Analog Input: 6Vrms Voltage Gain Analog Input to Output: 14dB Frequency Response +0, -0.5dB from 20Hz to 20,000Hz Tone Controls +12dB, -12dB from flat setting FM Tuner (TM1 option) Useable Sensitivity 14dBF which is 1.4uV across 75 ohms 50dB Quieting Sensitivity Mono: 19dBF which is 2.4uV across 75 ohms Stereo: 35dBF which is 15uV across 75 ohms Signal To Noise Ratio Mono: 75dB Stereo: 70dB Frequency Response Mono: +0, -1dB from 20 to 15,000Hz Stereo: +0, -1dB from 20 to 15,000Hz Harmonic Distortion Mono: 0.3% at 100Hz, 0.3% at 1,000Hz, 0.3% at 10,000Hz Stereo: 0.45% at 100Hz, 0.45% at 1,000Hz, 0.65% at 10,000Hz Intermodulaton Distortion Mono: 0.25% Stereo: 0.45% Capture Ratio 1.2dB Alternate Channel Selectivity 75dB Spurious Response 100dB Image Response 75dB RF Intermodulation 65dB Stereo Separation 45dB at 100Hz, 45dB at 1,000Hz, 35dB at 10,000Hz SCA Rejection 65dB 2
Page 2
General Specifications Power Requirements 100 Volts, 50/60Hz at 65 watts 110 Volts, 50/60Hz at 65 watts 120 Volts, 50/60Hz at 65 watts 220 Volts, 50/60Hz at 65 watts 230 Volts, 50/60Hz at 65 watts 240 Volts, 50/60Hz at 65 watts NOTE: Refer to the rear panel of the MX135 for the correct voltage. Overall Dimensions Front Panel: 17-1/2 inches (44.5cm) wide, 9-7/16 inches (23.97cm) high. Depth behind front mounting panel is 19 inches (48.26cm) including clearance for connectors. Panel clearance required in front of mounting panel is 1-1/8 inches (2.9cm). Weight 31.5 pounds (14.3kg) net, 55 pounds (25kg) shipping weight PERFORMANCE SPECIFICATIONS cont MX135 AM Tuner (TM1 option) Sensitivity 20uV external antenna input Signal To Noise Ratio 48dB at 30% modulation 58dB at 100% modulation Harmonic Distortion 0.5% maximum at 50% modulation Frequency Response 50Hz to 6kHz NRSC Adjacent Channel Selectivity 45dB minimum IHF Image Rejection 65dB minimum from 540 to 1600kHz IF Rejection 80dB minimum 1. The heavy lines on the schematic denote the primarysignal path. 2. Unless otherwise noted, all voltages indicated on the schematics are measured under the following conditions: a. AC input at 120 volts, 50/60Hz. b. All voltages are +/-10% with respect to ground. A high impedance (10 megaohm) voltmeter must be used. 3. On PC board drawings, Square pad indicates: a. Polarized Capacitors - Positive b. Diodes - Cathode c. Others - Pin 1 4. WARNING Parts marked with the symbol have critical characteristics. Use only replacement parts recom- mended by the manufacturer. NOTES REAR PANEL 3
Page 30
7172 PARTS LIST Ref No.Description Part No. 2B 2A MX135 INTERCONNECT F1 FUSE, 1A SLO-BLO 5 X 20 089107 T B 1 AC TERMINAL BLOCK 074091 T 1 POWER TRANSFORMER 159302 DISPLAY PCB 050036 C1 CAP MONO .01UF 50V 20% X7R 061304 C4 CAP MONO .1uF 50V 20% Z5U 061305 C5 CAP MONO .1uF 50V 20% Z5U 061305 C6 CAP MONO .1uF 50V 20% Z5U 061305 C9 CAP ELECT 47UF 35V 066446 C10 CAP ELECT 47UF 35V 066446 C14 CAP MONO 33PF 200V 5%NPO T&R 061307 C15 CAP MONO 33PF 200V 5%NPO T&R 061307 C21 CAP ELECT 10UF 16V 4X5 CASE 066382 C 2 5 CAP MONO .1uF 50V 20% Z5U 061305 C 2 6 CAP MONO .1uF 50V 20% Z5U 061305 C 2 7 CAP MONO .1uF 50V 20% Z5U 061305 C 2 9 CAP MONO .1uF 50V 20% Z5U 061305 C 3 1 CAP MONO .1uF 50V 20% Z5U 061305 C 3 2 CAP MONO .1uF 50V 20% Z5U 061305 C33 CAP ELECT 10UF 16V 4X5 CASE 066382 C50 CAP ELECT 10UF 16V 4X5 CASE 066382 C 5 1 CAP MONO .1uF 50V 20% Z5U 061305 C 5 6 CAP MONO .1uF 50V 20% Z5U 061305 C 5 7 CAP MONO .1uF 50V 20% Z5U 061305 C 5 8 CAP MONO .1uF 50V 20% Z5U 061305 C100 CAP MONO .1uF 50V 20% Z5U 061305 C170 CAP MONO 100PF 100V 10% NPO 061300 C200 CAP MONO .01UF 50V 20% X7R 061304 C201 CAP MONO .01UF 50V 20% X7R 061304 C202 CAP MONO .01UF 50V 20% X7R 061304 C203 CAP MONO .01UF 50V 20% X7R 061304 C204 CAP MONO .01UF 50V 20% X7R 061304 C205 CAP MONO .01UF 50V 20% X7R 061304 C206 CAP MONO .01UF 50V 20% X7R 061304 C207 CAP MONO .01UF 50V 20% X7R 061304 C208 CAP MONO .01UF 50V 20% X7R 061304 C209 CAP MONO .01UF 50V 20% X7R 061304 C210 CAP MONO .01UF 50V 20% X7R 061304 C211 CAP MONO .01UF 50V 20% X7R 061304 D 2 DIODE ZENER 15V 1W 070061 D300 DIODE SILICON 070047 D301 DIODE SILICON 070047 D302 DIODE SILICON 070047 DS1 DISPLAY 12 CHARACTER 058168 DS5 LED GREEN 5MM HI-INTENSITY 058165 DS6 LED GREEN 5MM HI-INTENSITY 058165 DS7 LED GREEN 5MM HI-INTENSITY 058165 DS8 LED GREEN 5MM HI-INTENSITY 058165 DS10 LED GREEN 5MM HI-INTENSITY 058165 DS11 LED GREEN 5MM HI-INTENSITY 058165 IC2 IC VF ALPHANUMERIC CONTROLLER 133347 IC4 IC PAGE MODE EEPROM 133348 IC5 IC PROGRAMMED VRSION OF 133343 133342 IC6 IC PROGRAMMED VRSION OF 133351 133349 IC7 IC PROGRAMMED VRSION OF 133351 133349 IC10 IC PROGRAMMED VRSION OF 133343 133342 IC11 SRAM 133227 IC13 IC OCT 3-STT NONINVERTING 133222 IC14 133350 BCMS 133517 AFTER PRGRMMNG 133350 IC15 IC MICRO ROMLESS 133386 IC16 IC PROGRAMMED VRSION OF 133266 133379 IC17 IC PROGRAMMED VRSION OF 133343 133342 IC20 133406 BCMS 133518 AFTER PRGRMMNG 133406IC30 IC NAND SCHMIT 2-IN X 4 133192 IC31 IC NAND SCHMIT 2-IN X 4 133192 IC32 IC NAND SCHMIT 2-IN X 4 133192 IC50 IC 8 BIT A/D SERIAL OUTPUT 133366 IC75 IC CPU SUPERVISOR 133424 J1 CONN MALE 10 POS 117219 J3 CONN MALE 7 PIN 117217 J5 SOCKET STRIP .025 SQ 20 PIN 117642 J8 CONN MALE 10 POS 117219 J 9 _ CONN MALE 5 PIN 0.1 POST ASSY 117216 J10 CONN MALE 10 POS 117219 J11 CONN FFC 18PIN 117765 J19 CONN MALE 10 POS 117219 J21_ CONN 9 PIN FEMALE 117694 J25_ CONN MALE 7 PIN 117217 J26_ CONN 4 PIN 117215 Q 1 TRANSISTOR NPN SILICON 132171 Q 2 TRANSISTOR PNP 132224 Q 5 0 TRANSISTOR NPN 132223 R1 RES MF 47.5K 1% 1/4W 144108 R5 RES NETWORK 8X330 ISO 144263 R6 RES MF 47.5K 1% 1/4W 144108 R7 RES MF 1.74K 1% 1/4W 144351 R8 RES MF 10 OHM 1% 1/4W 144157 R9 RES NET 2 X 22K ISOLATED 144366 R 1 0 RES NETWORK 5X47K BUSSED 144254 R 1 2 RES NETWORK 9 X 47K BUS 144250 R 1 3 RES NETWORK 9 X 47K BUS 144250 R 1 4 RES NETWORK 9 X 47K BUS 144250 R 1 8 RES MF 100 OHM 1/4W 144196 R 1 9 RES MF 100 OHM 1/4W 144196 R 2 0 RES MF 100 OHM 1/4W 144196 R 2 1 RES MF 100 OHM 1/4W 144196 R 2 2 RES MF 100 OHM 1/4W 144196 R 2 3 RES MF 100 OHM 1/4W 144196 R24 RES NET 2 X 22K ISOLATED 144366 R 2 5 RES FP 47 OHM 5% 1/4W 137042 R26 RES NET 2 X 22K ISOLATED 144366 R27 RES NET 2 X 22K ISOLATED 144366 R28 RES NET 2 X 22K ISOLATED 144366 R29 RES NET 2 X 22K ISOLATED 144366 R 3 0 RES MF 10 OHM 1% 1/4W 144157 R31 RES MF 4.99K 1/4W 144098 R 3 2 RES MF 100 OHM 1/4W 144196 R45 RES NET 2 X 22K ISOLATED 144366 R50 RES NETWORK 9X1K ISO 144280 R51 RES NETWORK 9X1K ISO 144280 R52 RES NETWORK 9X1K ISO 144280 R 8 3 RES FP 10 OHM 5% 1/4W 137025 R100 RES MF 10K 1% 1/4W 144053 R101 RES MF 10K 1% 1/4W 144053 R102 RES NETWORK 4 X 22K BUS 144234 R105 RES MF 10K 1% 1/4W 144053 R131 RES NET 10K X8 RES B 144253 R150 RES NETWORK 4X1K ISO 144276 R151 RES NETWORK 4X1K ISO 144276 R170 RES MF 4.99K 1% 1/4W 144098 R171 RES MF 4.99K 1% 1/4W 144098 R200 RES NET 2 X 22K ISOLATED 144366 R201 RES MF 47.5K 1% 1/4W 144108 R202 RES NET 2 X 22K ISOLATED 144366 R203 RES NET 2 X 22K ISOLATED 144366 R204 RES NET 2 X 22K ISOLATED 144366 R205 RES NET 2 X 22K ISOLATED 144366 R206 RES NET 2 X 22K ISOLATED 144366 R300 RES MF 47.5K 1% 1/4W 144108 S3 ENCODER OPTICAL ROTARY 146246 S20 POT ROTARY SWITCH QUADRATURE 146255 S21 POT ROTARY SWITCH QUADRATURE 146255 S22 POT ROTARY SWITCH QUADRATURE 146255S23 POT ROTARY SWITCH QUADRATURE 146255 S24 POT ROTARY SWITCH QUADRATURE 146255 S25 POT ROTARY SWITCH QUADRATURE 146256 TEST1 CONN 4 PIN 117215 U3 PROGRAMMED 133336 (OPTION) 133469 Y1 Crystal 11.0592MHz 180051 LED PCB 050054 C11 CAP MONO 1000PF 50V 10% NPO 061303 C 1 2 CAP MONO .1uF 50V 20% Z5U 061305 C 1 6 CAP MONO .1uF 50V 20% Z5U 061305 C17 CAP MONO 1000PF 50V 10% NPO 061303 C19 CAP ELECT 47UF 35V 066446 C20 CAP ELECT 47UF 35V 066446 DS2 LED SQUARE RED 058109 DS3 LED SQUARE RED 058109 DS4 LED SQUARE RED 058109 DS5 LED SQUARE RED 058109 DS6 LED SQUARE RED 058109 DS7 LED SQUARE RED 058109 DS8 LED SQUARE RED 058109 DS9 LED SQUARE RED 058109 DS10 LED SQUARE RED 058109 DS11 LED SQUARE RED 058109 DS12 LED SQUARE RED 058109 DS13 LED SQUARE RED 058109 DS14 LED SQUARE RED 058109 DS15 LED SQUARE RED 058109 DS16 LED SQUARE RED 058109 DS17 LED SQUARE RED 058109 DS18 LED 2 SEGMENT YELLOW BAR 058146 DS19 LED 2 SEGMENT YELLOW BAR 058146 DS20 LED 2 SEGMENT YELLOW BAR 058146 DS21 LED 2 SEGMENT YELLOW BAR 058146 DS22 LED 2 SEGMENT YELLOW BAR 058146 DS23 LED 2 SEGMENT YELLOW BAR 058146 DS24 LED 2 SEGMENT YELLOW BAR 058146 DS25 LED 2 SEGMENT YELLOW BAR 058146 DS26 LED 2 SEGMENT YELLOW BAR 058146 DS27 LED 2 SEGMENT YELLOW BAR 058146 DS29 LED 2 SEGMENT YELLOW BAR 058146 DS30 LED 2 SEGMENT YELLOW BAR 058146 DS34 LED ARRAY(5) YELLOW RECTANGLE 058127 DS37 LED 2 SEGMENT YELLOW BAR 058146 DS38 LED ARRAY(5) YELLOW RECTANGLE 058127 DS40 LED 2 SEGMENT YELLOW BAR 058146 DS41 LED ARRAY(5) YELLOW RECTANGLE 058127 DS42 LED ARRAY(5) YELLOW RECTANGLE 058127 DS43 LED ARRAY(5) YELLOW RECTANGLE 058127 DS44 LED ARRAY(5) YELLOW RECTANGLE 058127 DS45 LED ARRAY(5) YELLOW RECTANGLE 058127 DS46 LED ARRAY(5) YELLOW RECTANGLE 058127 DS47 LED 2 SEGMENT YELLOW BAR 058146 DS48 LED 2 SEGMENT YELLOW BAR 058146 IC3 IC DISPLAY DRIVER 4 DIGIT LED 133268 IC12 IC DISPLAY DRIVER 4 DIGIT LED 133268 J20_ CONN 9 PIN MALE 117695 MOLD1 FUNCTION LED MOLD 017948 MOLD2 FUNCTION LED MOLD 017714 MOLD3 INDICATOR LED MOLD 017715 MOLD4 FUNCTION LED MOLD 017948 MOLD5 FUNCTION LED MOLD 017948 MOLD6 FUNCTION LED MOLD 017948 MOLD7 FUNCTION LED MOLD 017948 MOLD8 FUNCTION LED MOLD 017948 MOLD9 FUNCTION LED MOLD 017948 MOLD10 FUNCTION LED MOLD 017948 MOLD11 INDICATOR LED MOLD 017715 MOLD12 INDICATOR LED MOLD 017715 1
Page 32
PARTS LIST cont MX135 7576 C263CAP ELECT 10UF 16V 4X5 CASE 066382 C264 CAP ELECT 10UF 16V 4X5 CASE 066382 C265 CAP ELECT 10UF 16V 4X5 CASE 066382 C278 CAP ELECT 10UF 16V 4X5 CASE 066382 C280 CAP MONO .1uF 50V 20% Z5U 061305 C281 CAP MONO .1uF 50V 20% Z5U 061305 C282 CAP MONO .1uF 50V 20% Z5U 061305 C284 CAP MONO .1uF 50V 20% Z5U 061305 C285 CAP MONO .1uF 50V 20% Z5U 061305 C286 CAP MONO .1uF 50V 20% Z5U 061305 C287 CAP MONO .1uF 50V 20% Z5U 061305 C288 CAP MONO .1uF 50V 20% Z5U 061305 C289 CAP MONO .1uF 50V 20% Z5U 061305 C290 CAP MONO .1uF 50V 20% Z5U 061305 C291 CAP ELECT 1000UF 25V 066404 C300 CAP MONO .1uF 50V 20% Z5U 061305 C335 CAP ELECT 10UF 16V 4X5 CASE 066382 C336 CAP ELECT 10UF 16V 4X5 CASE 066382 C337 CAP ELECT 10UF 16V 4X5 CASE 066382 C338 CAP ELECT 10UF 16V 4X5 CASE 066382 C340 CAP ELECT 47UF 50V 066215 C341 CAP MONO 1000PF 50V 10% NPO 061303 C342 CAP MONO 1000PF 50V 10% NPO 061303 C343 CAP MONO 1000PF 50V 10% NPO 061303 C344 CAP MONO 1000PF 50V 10% NPO 061303 C350 CAP ELECT 22UF 100V 066506 C351 CAP ELECT 47UF 50V 066215 C390 CAP ELECT 470UF 50V 066469 C393 CAP MONO .1uF 50V 20% Z5U 061305 C394 CAP MONO .1uF 50V 20% Z5U 061305 C395 CAP MONO 220PF 200V 10% NPO 061301 C396 CAP MONO .1uF 50V 20% Z5U 061305 C397 CAP MONO 220PF 200V 10% NPO 061301 C398 CAP MONO .1uF 50V 20% Z5U 061305 C399 CAP MONO .1uF 50V 20% Z5U 061305 C450 CAP ELECT 10UF 16V 4X5 CASE 066382 D 1 DIODE ZENER 33V 5% 1/2W 070121 D 2 DIODE ZENER 5V 070132 D 3 DIODE ZENER 6.2V 5% 500MW 070085 D 5 DIODE SILICON 070047 D 6 DIODE SILICON 070047 D 7 DIODE SILICON 070047 D 8 DIODE SILICON 070047 D 9 DIODE SILICON 070047 D 1 0 DIODE SILICON 070047 D 1 1 DIODE SILICON 070047 D 1 9 DIODE SILICON 070047 D27 DIODE RECTIFIER 070131 D28 DIODE RECTIFIER 070131 D 2 9 DIODE RECT SI 3A 100V 070041 D 3 0 DIODE RECT SI 3A 100V 070041 D 3 1 DIODE RECT SI 3A 100V 070041 D 3 2 DIODE RECT SI 3A 100V 070041 D34 DIODE RECTIFIER 070131 D35 DIODE RECTIFIER 070131 D36 DIODE RECTIFIER 070131 D37 DIODE RECTIFIER 070131 D40 DIODE RECTIFIER 070131 D41 DIODE RECTIFIER 070131 D100 DIODE RECTIFIER 070131 D101 DIODE RECTIFIER 070131 D210 DIODE SILICON 070047 DSP1 6 POS CABLE ASSY P603 320045 F 1 3.15A 5x20 fuse IEC 089098 F 2 3.15A 5x20 fuse IEC 089098 F3 500ma 5x20 fuse IEC 089090HS1 HEATSINK TO-220 080016 IC1 IC VOLUME CONTROL 133187 IC3 IC QUAD OPERATIONAL AMPLIFIER 133238 IC4 IC REGULATOR 3.3V LOW DROPOUT 133393 IC5 IC VOLUME CONTROL 133187 IC7 IC VOLUME CONTROL 133187 IC8 IC VOLUME CONTROL 133187 IC9 IC VOLUME CONTROL 133187 IC10 IC VOLUME CONTROL 133187 IC11 IC VOLUME CONTROL 133187 IC16 IC VOLUME CONTROL 133187 IC17 IC VOLUME CONTROL 133187 IC18 IC VOLUME CONTROL 133187 IC19 IC VOLUME CONTROL 133187 IC20 IC VOLUME CONTROL 133187 IC21 IC VOLUME CONTROL 133187 IC22 IC VOLUME CONTROL 133187 IC23 IC VOLUME CONTROL 133187 IC24 IC VOLUME CONTROL 133187 IC25 IC QUAD OPERATIONAL AMPLIFIER 133238 IC26 IC QUAD OPERATIONAL AMPLIFIER 133238 IC27 IC QUAD OPERATIONAL AMPLIFIER 133238 IC28 IC QUAD OPERATIONAL AMPLIFIER 133238 IC30 IC RS232 LINE DRIVER 133380 IC31 IC REGULATOR 12V 133119 IC32 IC NEG 24V REGULATOR 133306 IC33 IC REGULATOR +15 VOLT 133086 IC34 IC VOLT AGE REGULATOR -15V 133087 IC35 IC MONOSTB MULTIVIB X 2 133182 IC36 IC REGULATOR +5V 133108 IC37 IC REGULATOR 5V 1.5A LOW DROP133365 IC38 COUPLER OPTICAL SCHMITT OUTPUT 131023 IC40 IC BIFET OP AMP 133310 IC41 IC BIFET OP AMP 133310 IC42 IC BIFET OP AMP 133310 IC44 IC BIFET OP AMP 133310 IC45 IC BIFET OP AMP 133310 IC46 IC BIFET OP AMP 133310 IC48 IC 2 INPUT X 4 133167 IC49 IC 2 INPUT X 4 133167 IC51 IC 2 INPUT X 4 133167 IC52 IC 2 INPUT X 4 133167 IC55 IC QUAD OPERATIONAL AMPLIFIER 133238 IC56 IC QUAD OPERATIONAL AMPLIFIER 133238 IC59 COUPLER OPTICAL SCHMITT OUTPUT 131023 IC66 IC SPST QUAD FET SWITCHES N O 133426 IC69 IC OPERATIONAL AMPLIFIER 133189 IC70 IC OCTAL DAR TRNS ARRY W/DIODE 133360 IC71 IC SPST QUAD FET SWITCHES N O 133426 IC73 IC QUAD OPERATIONAL AMPLIFIER 133238 IC80 IC REGULATOR 5V 1.5A LOW DROP133365 IC91 IC VOLUME CONTROL 133187 IC92 IC VOLUME CONTROL 133187 IC93 IC BIFET OP AMP 133310 IC94 IC BIFET OP AMP 133310 IC150 IC HEX INVERTER 133193 J1 CONN MALE 10 POS 117219 J2 CONN 12 PIN FFC 117720 J3 CONN 12 PIN FFC 117720 J 7 _ CONN MALE 5 PIN 0.1 POST ASSY 117216 J8 CONN MALE 10 POS 117219 J9_ CONN SUB-D 25 PIN 117818 J10 CONN MALE 10 POS 117219 J15_ CONN MALE 9 POS FRICTION LOCK 117244 J16 CONN MALE 10 POS 117219 J17_ CONN 3 POS MALE MTS100 NORMAL 117214 J19 CONN MALE 10 POS 117219 J20 CONN SUB-D 9-PIN 117507 J20_ CONN 4 PIN 117215 J21 JACK HEADPHONE DUAL BLACK 1/8 117549J22 BLADE FASTON W/FEET 117708 J23 BLADE FASTON W/FEET 117708 J24 BLADE FASTON W/FEET 117708 J26 BLADE FASTON W/FEET 117708 J27 BLADE FASTON W/FEET 117708 J28 BLADE FASTON W/FEET 117708 J29 BLADE FASTON W/FEET 117708 J30 BLADE FASTON W/FEET 117708 J31 CONN 4 PIN 117215 J32 CONN 12 PIN FFC 117720 J33 JACK HEADPHONE DUAL BLACK 1/8 117549 J34 JACK HEADPHONE DUAL BLACK 1/8 117549 J40 JACK RCA 4X2 WHT/RED 14MM 117791 J41 JACK RCA 4X2 WHT/RED 14MM 117791 J41_ CONN 4 PIN 117215 J45 JACK RJ45 117780 J46 JACK RJ45 117780 J93 JACK RCA 1X2 WHT/RED 14MM 117788 K 4 RELAY REED FORM 1A 5V 500 OHMS 087050 K 5 RELAY REED FORM 1A 5V 500 OHMS 087050 K 6 RELAY REED FORM 1A 5V 500 OHMS 087050 K 7 RELAY REED FORM 1A 5V 500 OHMS 087050 K 8 RELAY REED FORM 1A 5V 500 OHMS 087050 K 9 RELAY REED FORM 1A 5V 500 OHMS 087050 K 1 0 RELAY REED FORM 1A 5V 500 OHMS 087050 K 1 1 RELAY REED FORM 1A 5V 500 OHMS 087050 K 1 2 RELAY POWER TV5 24V 087069 K 1 3 RELAY 24VDC 5A 087057 K 1 5 RELAY REED FORM 1A 5V 500 OHMS 087050 K 2 0 RELAY REED FORM 1A 5V 500 OHMS 087050 K 2 1 RELAY REED FORM 1A 5V 500 OHMS 087050 L 1 0 BEADS FERRITE LEADED 076019 L 1 1 BEADS FERRITE LEADED 076019 L 1 2 BEADS FERRITE LEADED 076019 L 1 7 BEADS FERRITE LEADED 076019 Q 3 TRANSISTOR NPN 132223 Q 4 IC VOLTAGE REGULATOR -5.2V 133088 Q 9 TRANSISTOR NPN 132223 Q 1 0 TRANSISTOR NPN DAR 132090 Q 1 1 TRANSISTOR NPN 132223 Q 1 4 TRANSISTOR NPN DAR 132090 R1 RES MF 1.1K 1% 1/4W 144091 R2 RES MF 20K 1% 1/4W 144104 R3 RES WW 100 OHM 10% 2W BWH 139134 R4 RES MF 8.25K 1% 1/4W 144153 R5 RES FP 1.1 OHM 1/4W 5% 137002 R6 RES MF 20K 1% 1/4W 144104 R7 RES MF 10K 1% 1/4W 144053 R8 RES NETWORK 2X100 OHM ISOLATED 144266 R9 RES MF 100 OHM 1/4W 144196 R11 RES NETWORK 2X100 OHM ISOLATED 144266 R12 RES 1.37K 1% 1/4W 144092 R14 RES 1.37K 1% 1/4W 144092 R15 RES 1.37K 1% 1/4W 144092 R16 RES 1.37K 1% 1/4W 144092 R 1 7 RES MF 1.65K 1% 1/4W 144093 R22 RES NETWORK 470KX6 144453 R23 RES NETWORK 4X1K ISO 144276 R25 RES NETWORK 4X1K ISO 144276 R 2 7 RES MF 1.1K 1% 1/4W 144091 R28 RES POLYSWITCH RXE030 144240 R29 RES POLYSWITCH RXE030 144240 R 3 0 RES MF 10K 1% 1/4W 144053 R 3 1 RES MF 1.21K 1% 1/4W 144191 R 3 9 RES MF 100K 1% 1/4W 144113 R 4 0 RES MF 8.25K 1% 1/4W 144153 R 4 2 RES MF 10K 1% 1/4W 144053 R43 RES NET 2 X 22K ISOLATED 144366 R44 RES NET 2 X 22K ISOLATED 144366 R 4 5 RES MF 20K 1% 1/4W 144104
Page 42
95 MX135 REPACKING INSTRUCTION
