McIntosh MX 135 Brochure

Page 1

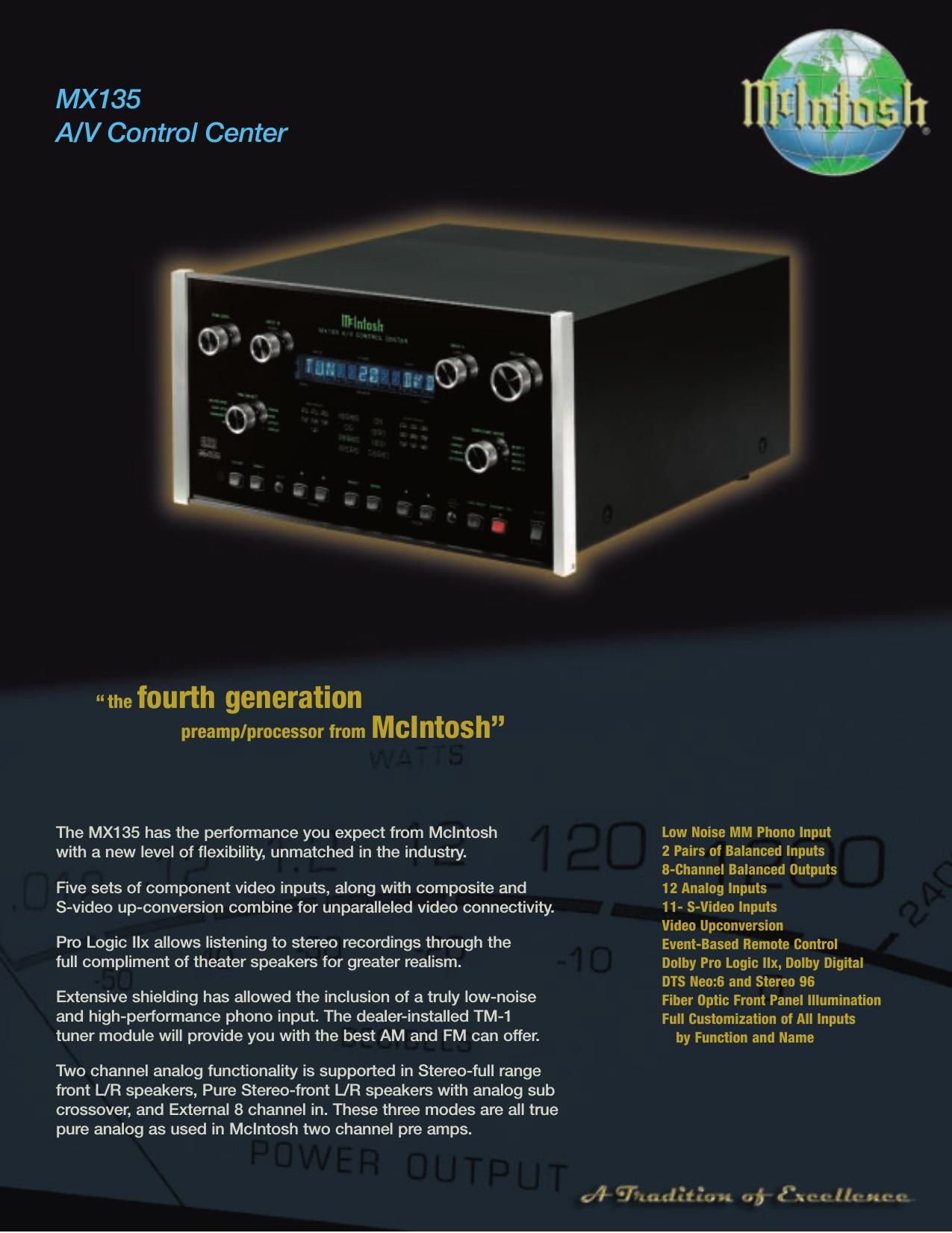

11.04.MX135.20K 35006300 MX135 A/V Control Center FLEXIBLE SETUP Set up can be achieved with an on-screen menu or with a PC and downloaded via an RS232 cable. Easy adjustment from front panel or remote without layered menus. Separate bass and treble settings for each source. Input renaming. A full compliment of balanced XLR outputs. 2 sets of balanced inputs. EASIER TO OPERATE Ergonomic knob-action operation from the front panel. Easy on-the-fly fine-tuning from front panel or remote possible. YOU CAN ADD MORE ZONES Built-In second zone is controllable from front panel or with remote sensor/keypads. Extendable up to 24 more zones for larger installations. NEW PANEL ILLUMINATION Long-life, cool running fiber optic lighting makes operation in low light easier. Printing the lettering on the rear of the glass prevents wear of the nomenclature, ensuring lasting beauty and highest resale value… a McIntosh hallmark feature. MAXIMUM INPUT SIGNAL:Phono: 50mV High Level: 5V unbalanced, 10V balanced VOLTAGE GAIN:Phono to Tape/VCR Out: 40dB Phono to Output (Main): 54dB High Level to Tape/VCR Out: 0dB High Level to Output (Main): 14dB TONE CONTROLS:Bass Control: ±12dB at 30hz Treble Control ±12dB at 10kHz POWER REQUIREMENTS:100V, 50/60Hz at 65W 110V, 50/60Hz at 65W 120V, 50/60Hz at 65W 220V, 50/60Hz at 65W 230V, 50/60Hz at 65W 240V, 50/60Hz at 65W OVERALL DIMENSIONS (H x W x D including knobs and feet) 9-7/16" (24cm) x 17-3/4" (45cm) x 18-3/4" (48cm) WEIGHT:31 lbs. (14kg) net, 45 lbs (20.5kg) boxed FREQUENCY RESPONSE: L/C/R/LS/RS/LB/RB: ±0.5dB from 20Hz – 20kHz Sub: ±0.5dB from 20Hz – 140Hz TOTAL HARMONIC DISTORTION:0.005% Maximum from 20Hz to 20kHz at rated output SIGNAL-TO-NOISE RATIO (A-Weighted): Phono: 86dB below 10mV input High Level: 96dB below rated output RATED OUTPUT VOLTAGE:2.5V unbalanced outputs (Main) 5.0V balanced outputs (Main) MAXIMUM VOLTAGE OUTPUT:9.5V unbalanced 19V balanced OUTPUT IMPEDANCE:100 ohms unbalanced 200 ohms balanced INPUT IMPEDANCE:Phono: 47k ohms, 65pf High Level: 22k ohms unbalanced, 50k ohms balanced SENSITIVITY FOR RATED OUTPUT:Phono: 5mV High Level: 500mV unbalanced, 1V balanced. For the Consumers Protection: In order to ensure the highest level of customer satisfaction, newMcIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be usedand do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699 Tel (607) 723-3512 - US Toll-Free (800) 538-6576 - Fax: (607) 724-0549 - www.mcintoshlabs.com
