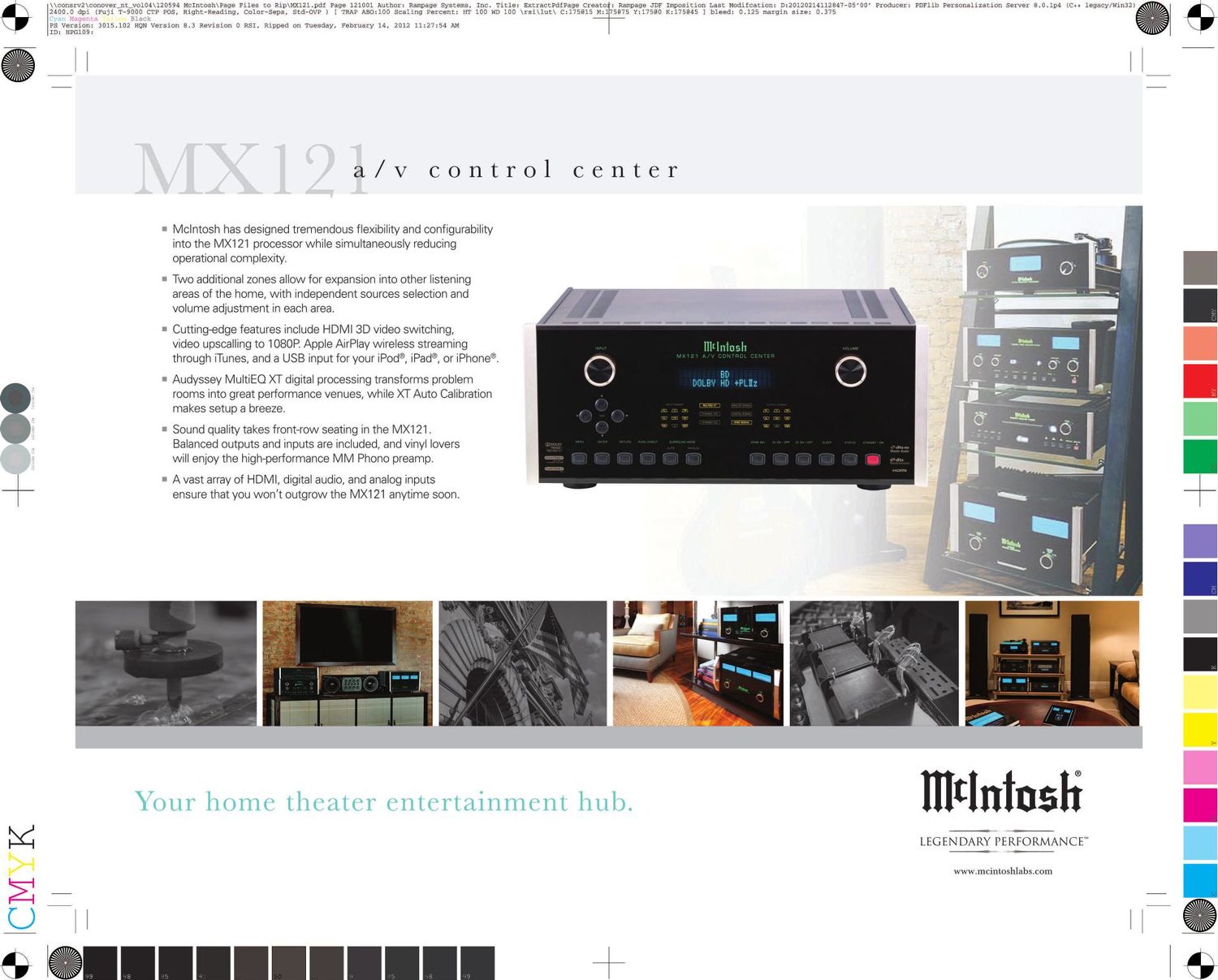

a/V control center

I McIntosh has designed tremendous flexibility and configurability
into the MXl 21 processor while simultaneously reducing
operational complexity.

Two additional zones allow for expansion into other listening
areas of the home, with independent sources selection and
volume adjustment in each area.

Cutting-edge features include HDMI 3D video switching,
video upscalling to lO80P. Apple AirPlay wireless streaming
through iTunes, and a USB input for your iPod®, iPad®, or iPhone®.

Audyssey MultiEQ XT digital processing transforms problem
rooms into great performance venues, while XT Auto Calibration
makes setup a breeze.

Sound quality takes front-row seating in the lvl><1 21.
Balanced outputs and inputs are included, and vinyl lovers
will enjoy the high-performance MM Phono preamp.

A vast array of HDMl, digital audio, and analog inputs
ensure that you wont outgrow the MX121 anytime soon.

+

LEGENDARY PERFORMANCE

www.mcintoshlabs.com

e

Page 2

24mm dpi iFuji T-QDUD cw Poe, Rxght-Readxng, scrapseps, stdAOVP i r TRAP Aaonna Scaling Percent: in Joe no mo \rsi\1ut\ cmsms

es Verslon: 3015.1u2 HON Verslon 3.3 Revlszion 0 R51, Ripped on Tuesday, February 14, 2012 11:29:05 m

m; Hecms,

350i 3300

i\conszvzieonoveLnLvmmuzusaq McIntosh\Paqe Fxles Lo mpimxrzn.par Page 121002 Author: Rampage syszems. Inc. cums: ExtracLPdfPaqe Czea Rampage mp Imposition Last Modiicatxon: D:2D120214001029A05'0D' Producer:
B75 Y237SQU imrsms i bleed: 0.125 margin sue: 0.375

a/V control center

General Specifications

A/V Connections

7 1 Channels, 7 stereo unbalanced analog
inputs plus MM phono, one stereo balanced
in and one set 7.1 analog in

3 Optical, 2 CoaXial SPDIF digital inputs,
l optical output, 24 bit 192 kHz resolution

6 HDMl inputs, 2 HDMl outputs

4 Component Video inputs,
2 Component Video outputs,
5 Composite Video inputs, 3 out

Control Connections

Network RJ45, R8232, Data input/output and
2 Power Control Outputs Network Features.
DLNA1.5 Certified, lnternet Radio, Stream
audio and Video from network

Companion Products
The McIntosh MC8207 Power Amplifier, MVP891 Universal Player, lVlPClBOO Power Controller, LCRBO Center
Channel Loudspeaker and the XRlOO Loudspeakers are logical companions for the M><12l A/V Control Center.
Your Authorized Dealer can provide additional information,

Audio Specifications
Audyssey processing bypassed and manual
Tone/E0 set to flat setting

Signal-to-Noise Ratio:
Phono: 86dB,
High Level: 96dB below rated output

Total Harmonic Distortion
0.005% maXimunn from ZOHZ to 20 KHZ

Maximum Output Voltage:
6,5V Unbalanced Outputs,
13V Balanced Outputs

Weight.
30le H3 6i Kg) net, 54lbs l24.49l shipping carton

Overall Dimensions

Width is l7-l/2 inches (44.45cm)

Height is 7-5/8 inches ll9.37cml including feet
Depth is 194/2 inches l49.53cm) including
the Front Panel, Knobs, and Rear Panel
Connections

To experience the legendary performance of lvlclntosh, please call on us at 1.800.538.6576.

+

For the Consumer's Protection

comm Pexsonalrzatlon Sen/er 3.0.1 lC4~ Jegacy/Winlzi

In order to ensure the highest level of customer satisfaction, new" McIntosh products may only
be purchased over-the-counter or delivered and installed by an Authorized Mclntosh Dealer.
McIntosh products that are purchased over the Internet, by phone or mail order are presumed to
be used and do not qualify for any Mclntosh Warranty. Mclntosh does not warrant, in any way,
products that are purchased from anyone who is not an Authorized Dealer or products that have

had their serial number altered or defaced.
