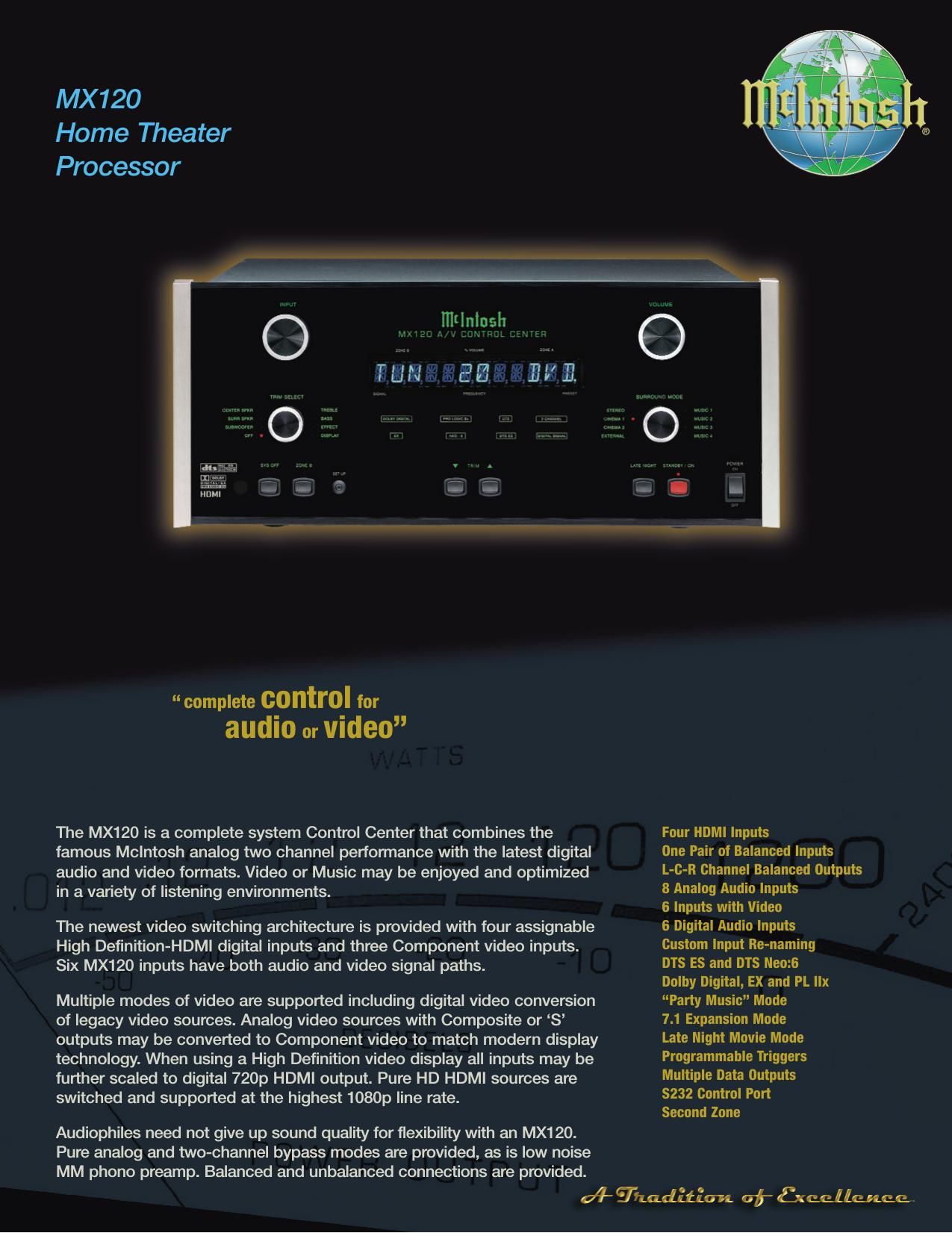

McIntosh MX 120 Brochure

Page 1

For the Consumers Protection: In order to ensure the highest level of customer satisfaction, newMcIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be usedand do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. 1.07.MX120.20K 35009000 McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699 Tel (607) 723-3512 - US Toll-Free (800) 538-6576 - Fax: (607) 724-0549 - www.mcintoshlabs.com MX120 Home Theater Processor FLEXIBLE SET UP Digital video upconversion to 720p from composite, S-video and component analog video sources. Preferred listening modes can be assigned to each input. Easy adjustment from front panel or remote without layered menus. Separate bass and treble settings for each source. Fully re-nameable inputs. Balanced XLR outputs for primary three channels. Balanced (XLR) stereo input. EASY TO OPERATE Simplified control layout and operating software. Ergonomic know-action operation from the front panel. Easy on-the-fly fine tuning from front panel or remote control. COMPANION PRODUCTS The MC205 Power Amplifier and the MVP871 DVD/CD Player are logical companions for the MX120. Your Authorized Dealer can provide additional information on other McIntosh product combinations. FREQUENCY RESPONSE STEREO MODE LEFT and RIGHT FRONT channels, +0, -0.5dB from 20Hz to 20kHz DOLBY PRO-LOGIC IIx MODE AND MUSIC MODES LEFT, CENTER and RIGHT FRONT, LEFT and RIGHT SURROUND and BACK channels, +0, -0.5dB from 20Hz to 20kHz If small speakers are programmed, the above channels employ high pass filters with a corner frequency of 80Hz and a 12dB per octave roll-off. DD, DTS, AND 8 CHANNEL EXTERNAL INPUT All Channels, +0, -0.5dB from 20Hz to 20kHz SUBWOOFERLow Pass filtered with an 80Hz corner frequency and 24dB per octave roll-off in all modes except external. RATED OUTPUT2V from all outputs OUTPUT IMPEDANCELess than 600 ohms all outputs MAXIMUM OUTPUT8V from all outputs TOTAL HARMONIC DISTORTIONAll Channels, 0.005% from 20Hz to 20kHz INPUT SENSITIVITYLine Level: 100mV for 500mV output Phono: 1mV for 500mV output Dolby Level: 200mV External processor reference level: 200mV SIGNAL-TO-NOISE RATIO98dB below rated output MAXIMUM INPUT SIGNALHigh Level: 6V INPUT IMPEDANCEHigh Level: 20K ohms; Phono: 47K ohms VOLTAGE GAINHigh Level to Tape Output: 0dB High Level to Preamp Output: 14dB Phono to Preamp Output: 54dB TONE CONTROLSBass and Treble variable 12dB boost to 12dB cut POWER REQUIREMENTS100V, 110V, 120V, 220V, 230V, 240V all 50/60Hz, 65 watts OVERALL DIMENSIONS (H x W x D)7-5/8" (19.63cm) x 17-1/2" (44.5cm) x 18-3/4" (47.63cm) WEIGHT27 lbs. (12.25kg) net, 46 lbs. (20.9kg) shipping
