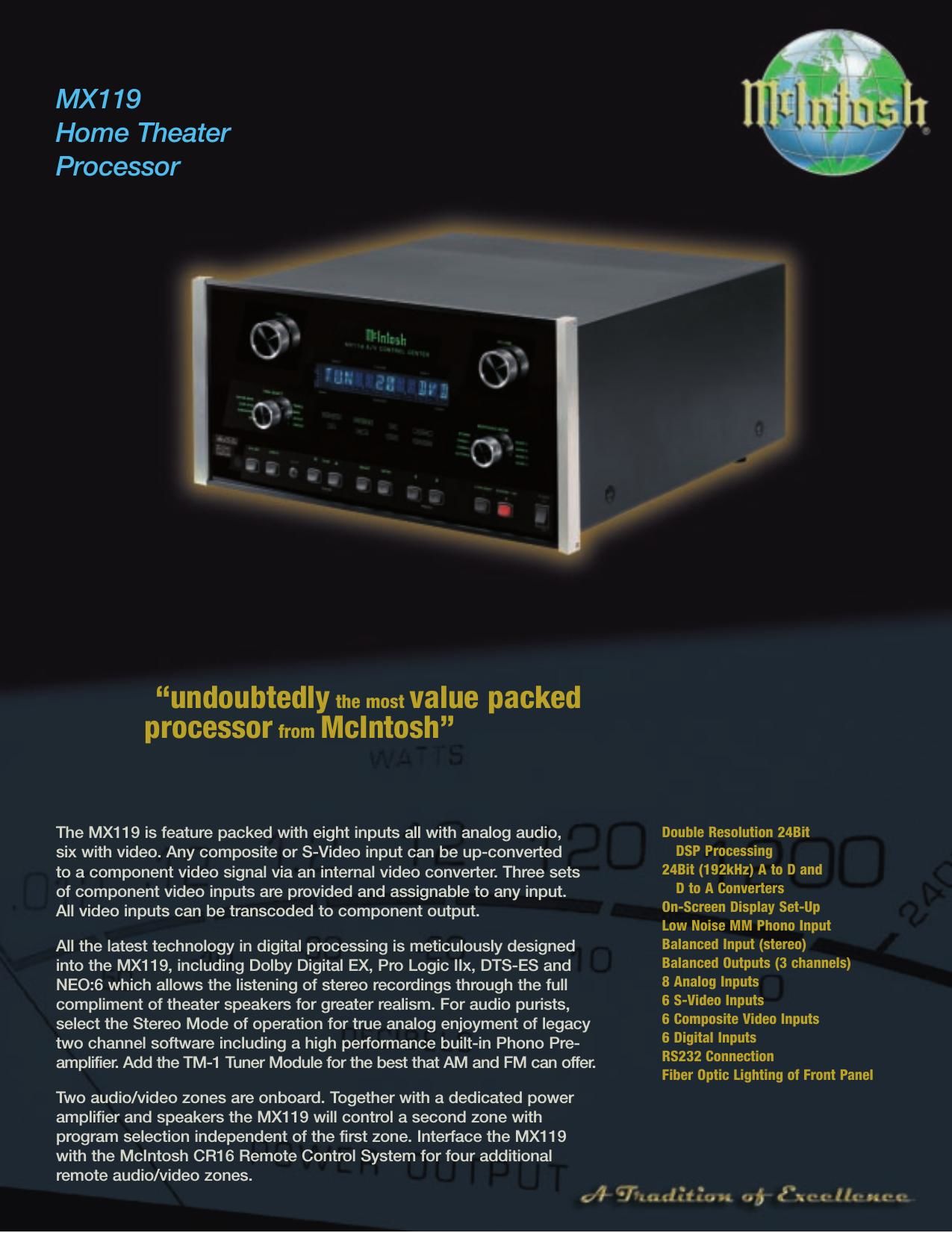

McIntosh MX 119 Brochure

Page 1

For the Consumers Protection: In order to ensure the highest level of customer satisfaction, newMcIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be usedand do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. 11.04.MX119.20K 35007300 McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699 Tel (607) 723-3512 - US Toll-Free (800) 538-6576 - Fax: (607) 724-0549 - www.mcintoshlabs.com MX119 Home Theater Processor FLEXIBLE SET-UP Set up can be customized with on-screen menus or downloaded from a PC via an RS232. Separate bass and treble settings for each source. Fully renamable inputs. Balanced outputs for the three front channels permit use of longer cables with freedom from noise pickup. EASE OF OPERATION Easy on-the-fly fine-tuning from the front panel or remote control is accomplished without the need for layered on-screen menus. MUSIC IN OTHER ROOMS A built-in second zone is controllable from the front panel or with remote sensors/keypads. Expandable up to 26 zones for larger installations. FRONT PANEL DESIGN McIntosh glass panels do more than look great. Long- life fiber-optic back-lighting makes operation easy in low light. Applying the lettering to the rear of the panel preserves both beauty and highest resale value… a McIntosh hallmark feature. FREQUENCY RESPONSE:L/C/R/LS/RS/LB/RB: ±0.5dB from 20Hz to 20kHz SUB: ±0.5dB from 20Hz – 140Hz TOTAL HARMONIC DISTORTION0.005% maximum from 20Hz to 20kHz at rated output SIGNAL-TO-NOISE RATIO (A-Weighted)Phono: 86dB below 10mV input High Level: 96dB below rated output RATED OUTPUT VOLTAGE:2.5V Unbalanced Outputs (Main) 5.0V Balanced Outputs (Main) MAXIMUM VOLTAGE OUTPUT:9.5V Unbalanced 19V Balanced OUTPUT IMPEDANCE:100 ohms Unbalanced 200 ohms Balanced INPUT IMPEDANCE:Phono: 47k ohms, 65pf High Level: 22k ohms Unbalanced, 1V Balanced SENSITIVITY FOR RATED OUTPUT:Phono: 5mV High Level: 500mV Unbalanced, 1V Balanced MAXIMUM INPUT SIGNAL:Phono: 50mV High Level: 5V Unbalanced, 10V Balanced VOLTAGE GAIN:Phono to REC Out: 40dB Phono to Output (Main): 54dB High Level to REC Out: 0dB High Level to Output (Main): 14dB TONE CONTROLS:Bass Control: ±12dB at 30Hz Treble Control: ±12dB at 10kHz POWER REQUIREMENTS:100 Volts, 50/60Hz at 65 watts 110 Volts, 50/60Hz at 65 watts 120 Volts, 50/60Hz at 65 watts 220 Volts, 50/60Hz at 65 watts 230 Volts, 50/60Hz at 65 watts 240 Volts, 50/60Hz at 65 watts OVERALL DIMENSIONS (H x W x D includes knobs and feet) 7-5/8" (19.4cm) x 17-1/2" (44.5cm) x 18-3/4" (47.6cm) WEIGHT:27 lbs. (12.25kg) net, 46 lbs. (20.9kg) boxed
