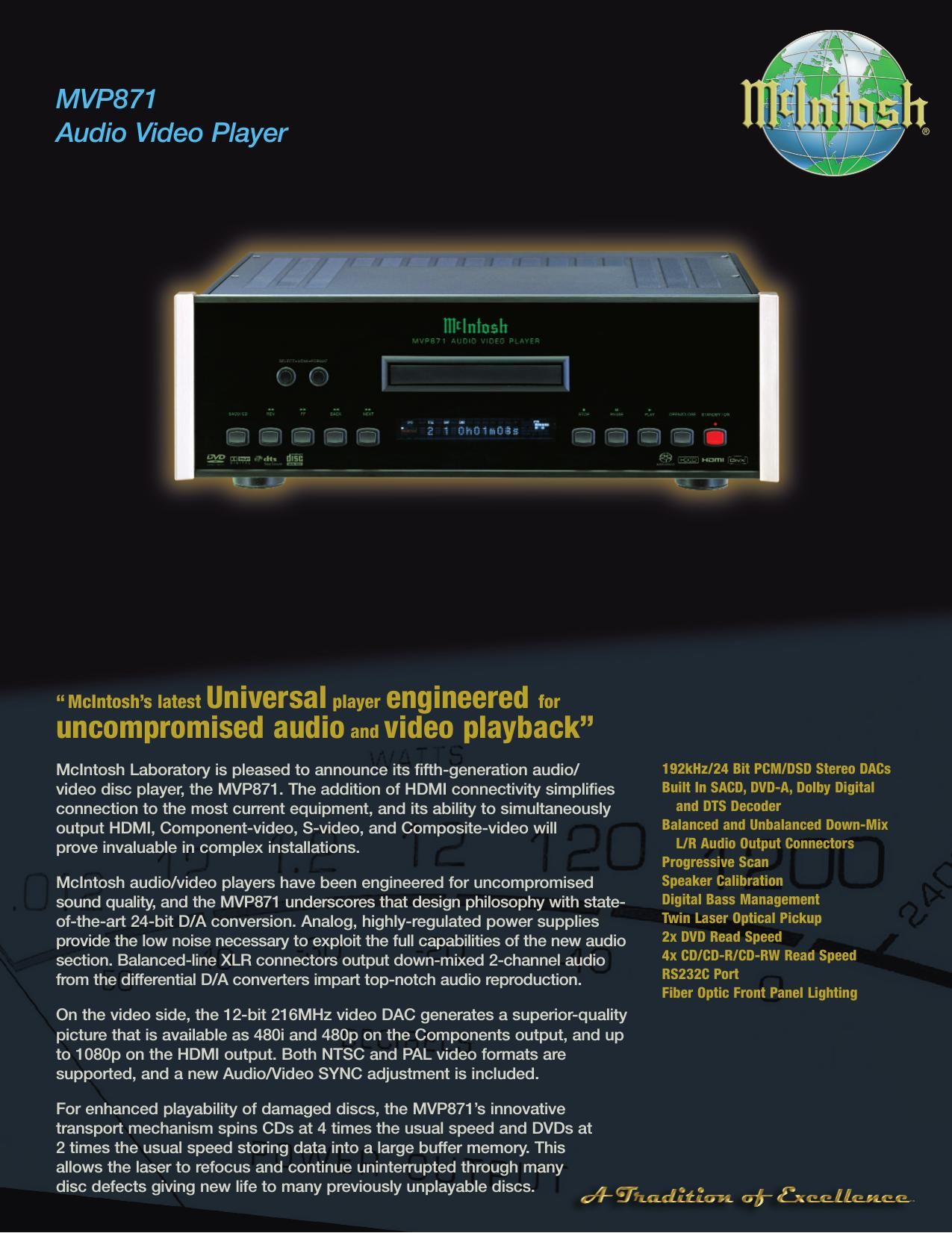

McIntosh MVP 871 Brochure

Page 1

For the Consumers Protection: In order to ensure the highest level of customer satisfaction, newMcIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be usedand do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. 1.07.MVP871.20K 35002100 McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699 Tel (607) 723-3512 - US Toll-Free (800) 538-6576 - Fax: (607) 724-0549 - www.mcintoshlabs.com MVP871 Audio Video Player FAST, QUIET MECHANISM WITH DIGITAL SERVO The MVP871s advanced digital servo is faster, and quieter with accurate operation. 12 BIT 216MHz VIDEO DAC A 12-bit high-speed video DAC allows video signal processing at an amazingly fast rate, minimizing digital artifact contaminants for enhanced DVD picture quality. 192KHz/24-BIT PCM/DSD STEREO DACS Four stereo DACs are on board for exceptional high fidelity sound. COMPANION PRODUCTS The MX136 A/V Control Center, MC205 Power Amplifier and XLS360 Loudspeakers are logical companions for the MVP871. Your Authorized Dealer can provide additional information on other McIntosh product combinations. SIGNAL SYSTEMNTSC/PAL Region Code 1 APPLICABLE DISCSSACD DVD-Audio/Video Compact Discs (CD-DA, Video CD) HDCD MP3 VIDEO OUTPUTS COMPOSITE OUTPUT Output Level: 1Vp-p (75 ohms) Output Connector: RCA Jack Number of Connectors: 1 S-VIDEO OUTPUTY Output Level: 1 Vp-p (75 ohms) C Output Level: 0.286 Vp-p (75 ohms) Output Connector: S Mini DIN Number of Connectors: 1 COMPONENT VIDEO OUTPUT (480P/480I)Y Output Level: 1Vp-p (75 ohms) Pb Output Level: 0.648 V-p-p (75 ohms) Pr Output Level: 0.7 Vp-p (75 ohms) Output Connectors: 3 RCA Jacks (1 set) HDMI VIDEO OUTPUT AUDIO OUTPUTS DOWN-MIX L/R Output Level: 2 Vms (1kHz, 0dB) Output Connectors: 2 RCA Jacks, 2 XLR Balanced 5.1 SURROUNDOutput Level: 2Vms (1kHz, 0dB) Output Connectors: 6 RCA Jacks HDMI AUDIO OUTPUT FREQUENCY RESPONSE DVD (Linear PCM): 4Hz-22kHZ (48kHz); 4Hz-44kHz (96kHz) DVD-Audio: 4Hz-88kHz (192kHz) SACD: 4Hz-100kHz CD Audio: 4Hz-20kHz S/N RATIO115dB DYNAMIC RANGE110dB TOTAL HARMONIC DISTORTION0.002% DIGITAL AUDIO OUTPUTSOptical: TOS Link Coaxial RCA Jack GENERAL SPECIFICATIONS POWER REQUIREMENTS 120VAC 50/60Hz POWER CONSUMPTION45W OVERALL DIMENSIONS (H x W x D)6"(15.24cm) x 17-1/2" (44.5cm) x 16-1/2" (41.9cm) Note when the disc tray is opened, the panel clearance required in front of mounting panel is 6-3/4" (17.2cm). WEIGHT27.5 lbs. (12.5kg) net, 43.9 lbs. (20kg) in shipping carton
