McIntosh MVP 861 Service Manual
This is the 20 pages manual for McIntosh MVP 861 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh MVP 861 Service Manual (Ocr-read)

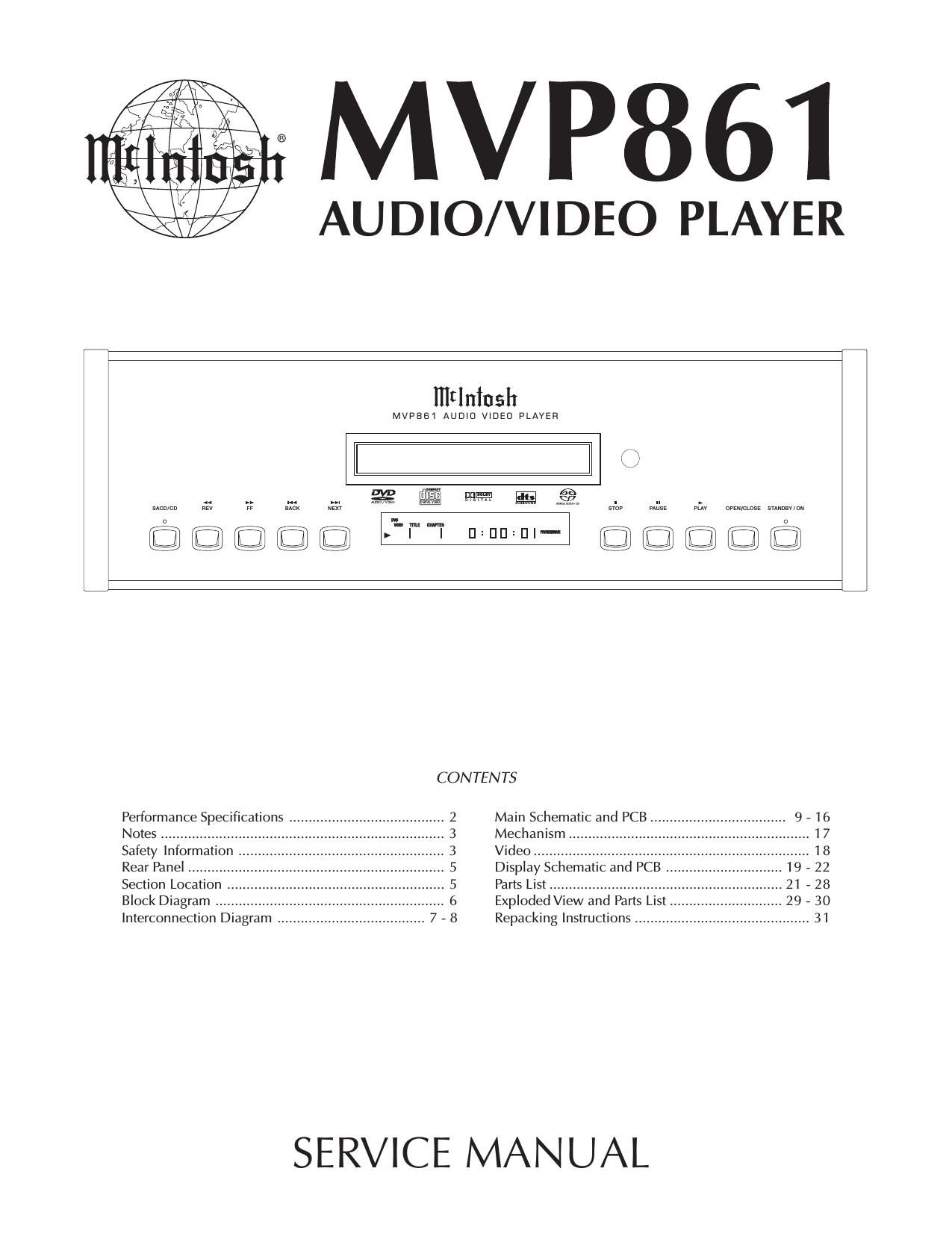

Page 1
IUIImush
MVPEEI AUDlD VlDEO PLAYER
awn/ch m 5; am New
Sm? Muss Puw oFEwcmsE stNDBv/ON
Performance Specifications ..
Notes .....................
Safety Information .
Rear Panel ..........
Section Location
Block Diagram
Interconnection Diagram .
CONTENTS
Main Schematic and PCB ..
Mechanism
Video ........
Display Schematic and PCB ..
Parts List ............................
Exploded View and Parts List.
Repacking instructions ..........
.9-16
..t.19-22
.21-28
.29-30
SERVICE MANUAL
Page 2
PERFORMANCE SPECIFICATIONS
Audio Specifications
Number of Channels
2 and 5.1
Output Level
2.0Vrms Balanced (2 Channel Output)
2.0Vrms Unbalanced (2 Channel Output and 5.1 Channels)
Output Impedance
600 ohms Balanced (2 Channel Output)
600 ohms Unbalanced (2 Channel Output and 5.1 Channels)
Audio Frequency Response (DVD-Video)
4Hz to 22,000Hz (48kHz Sampling, Linear Audio)
4H2 to 44,000Hz (96kHz Sampling, Linear Audio)
Audio Frequency Response (DVD-Audio)
4Hz to 88,000Hz (192kl-lz Sampling)
SACD Frequency Response
4Hz to 100,000Hz
CD Frequency Response
4Hz to 20,000Hz
Signal to Noise Ratio
115dB
Dynamic Range
Better than llOdB (Linear Audio)
Harmonic Distortion
0.002%
Channel Separation
Better than llOdB (1,000Hz)
Video Specifications
Signal System
NTSC/PAL Region Code 1
Component Video Output Level
Y Output Level 1.0Vp-p (75 ohm)
PB Output Level 0.648Vp-p (75 ohm)
PR Output Level 0.7VpAp (75 ohm)
S-Video Y Output Level
1Vp-p (75 ohm)
S-Video C Output Level
0.286Vp-p (75 ohm) (NTSC)
Video Output Level
1Vp-p (75 ohm)
General Specifications
Digital Output
Optical: A15dbm to A21dbm
Coaxial: 0.5V p-p/75 ohm
Digital Signal Format
Sampling Frequencies: 44,100Hz, 48,000Hz and 96,000Hz
Tiansport
Laser Beam Wavelength: 630nm-810nm
Laser Power: CLASS I
Power Requirements
100 Volts, 50/601-12 at 35 watts
110 Volts, 50/60Hz at 35 watts
120 Volts, 50/60Hz at 35 watts
220 Volts, 50/60Hz at 35 watts
230 Volts, 50/601-12 at 35 watts
240 Volts, 50/60Hz at 35 watts
Nate: Refer to the rear panel of the MVP861 for the carrert voltage.
Overall Dimensions
Front Panel: 17-1/2 inches (44.45cm) wide, 5-3/8 inches
(13.69cm) high. Depth is 131/8 inches (33.38cm).
Note: When the disc [my ix opened. the panel rlearzmce required in
from of mounting panel is 6-3/4 inchex (17.2cm).
Weight
21.5 pounds (9.8kg) net, 35.5 pounds (16.1kg) in shipping canon
