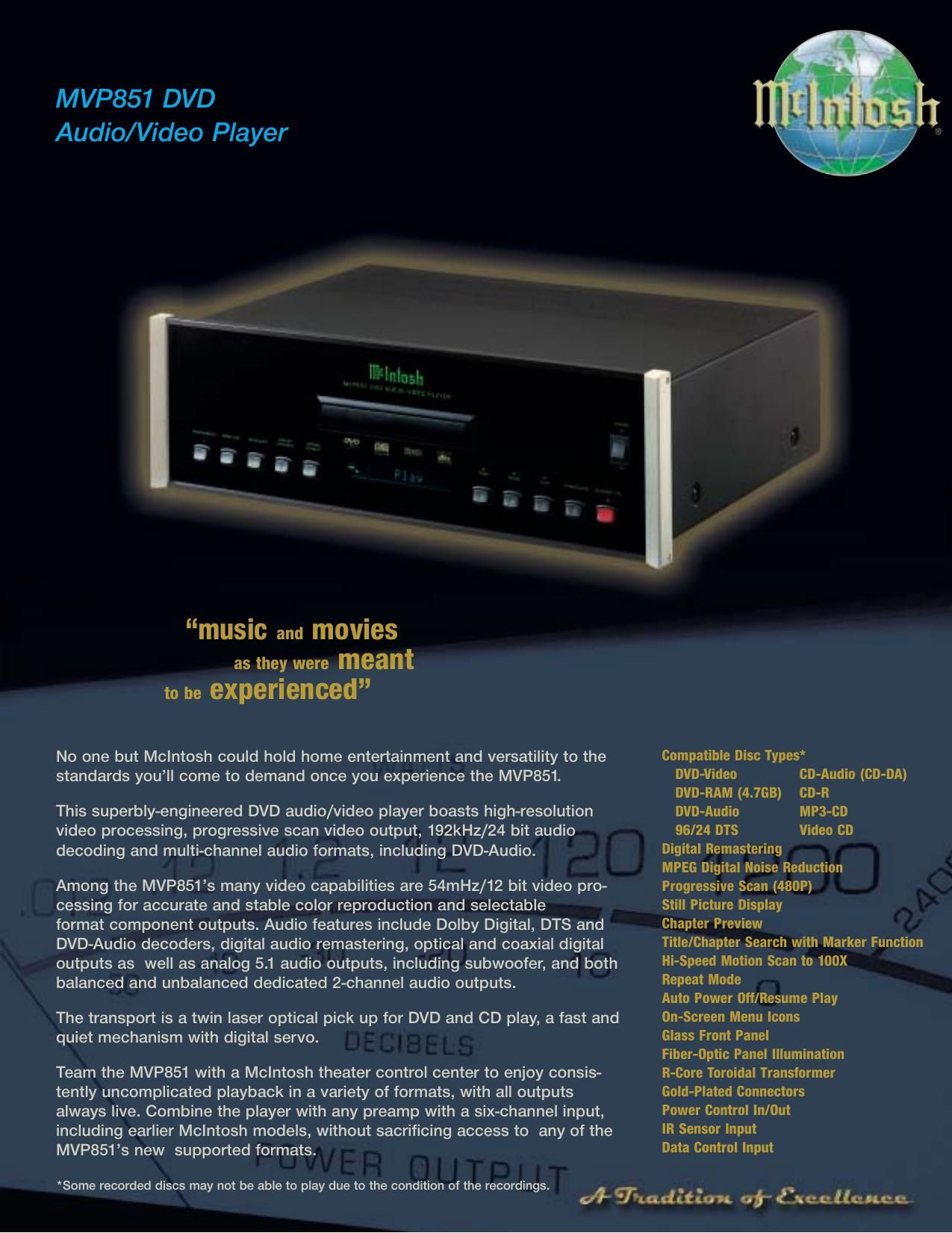

McIntosh MVP 851 Brochure

Page 1

McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699 Tel (607) 723-3512 - US Toll-Free (800) 538-6576 - Fax: (607) 724-0549- www.mcintoshlabs.com For the Consumers Protection: In order to ensure highest customer satisfaction, new McIntosh products may only be purchased over the counter at Authorized McIntosh Dealers and not by mail, telephone or via the inter- net. Products purchased by mail, telephone or via the internet are presumed to be used and are not covered by any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized McIntosh Dealer or products that have had their serial number altered or defaced. MVP851 DVD Audio/Video Player DIGITAL VIDEO NOISE REDUCTION During playback, advanced 3D-DNR circuitry effectively and selectively removes only the noise components from the video signal. REMASTERING WITH THE MVP851 Remastering improves the quality of standard CD recordings. Convert 44.1 kHz/16 bit to 88.2 kHz/24 bit with the MVP851s advanced digital signal processing. Enables use of the digital outputs with equipment that cannot process high data rates. In the set-up menu, simply adjust the digital out- puts to downconvert the 96 kHz high resolution format to 48 kHz or the CD remaster- ing 88.2 kHz to 44.1 kHz. AUDIO SPECIFICATIONS NUMBER OF CHANNELS 2 and 5.1 FREQUENCY RESPONSE DVD, 4 Hz to 22 kHz (48K sampling) DVD, 4 Hz to 44 kHz (96 kHz sampling) DVD-Audio, 4 Hz to 88 kHz (192 kHz sampling) CD Audio, 4 Hz to 20 kHz HARMONIC DISTORTION 0.003% (1,000Hz) CD SIGNAL-TO-NOISE RATIO Better than 110 dB (A-weighted) CONVERTERS One each 192kHz/24-bit Three each 96Hz/24bit AUDIO OUTPUTS Stereo Output Level: 2 Vms (1kHz, 0 dB) Output Connectors: 2 RCA jacks 2 XLR Balanced 5.1 Surround Output Level: 2 Vms (1khz, 0 dB) Output Connectors: 6 RCA jacks OUTPUT LEVEL 2.0 Vrms Balanced (2 channel output) 2.0 Vrms Unbalanced (2 channel output and 5.1 channels) OUTPUT IMPEDANCE 600 Ohms Balanced (2 channel output) 600 Ohms Unbalanced (2 channel output and 5.1 channels) DYNAMIC RANGE (DVD) Better than 100dB (linear audio) DYNAMIC RANGE (CD) Better than 98dB CHANNEL SEPARATION Better than 110dB (1,000Hz) VIDEO SPECIFICATIONS SIGNAL SYSTEM NTSC Region Code IVIDEO OUTPUTS Composite Output Output Level: 1Vp-p (75 ohms) Output Connector: RCA jack Number of Connectors: 2 S Video Output Y Output Level: 1 Vp-p (75 ohms) C Output Level: 0.286 Vp-p (75 ohms) Output Connector: S Mini DIN Number of Connectors: 1 Component Video Output (480P/480I) Y Output Level: 1 Vp-p (75 ohms) Pb Output Level: 0.7 Vp-p (75 ohms) Pr Output Level: 0.7 Vp-p (75 ohms) Output Connectors: 3 RCA jacks VIDEO PERFORMANCE Simultaneously active Composite, S, and component Video outs. 12 bit Video Processing for 5500- color resolution. Artifact-free Progressive Scan defeatable on the front panel. Black level control Contrast Brightness Sharpness Color Gamma 3D-NR Block NR Mosquito NR V Sharpness (vertical only) Edge Tint MPEG DNR Selectable Transfer Mode Progressive Scan: Auto- Film Auto 2- Film to 30 frames per second Auto 3- For animation played back at 30 frames per second Video-sourced materialVIDEO OUT ADJUSTMENTS TV Aspect Ratio: 4:3 Pan and Scan 4:3 Letterbox 16:9 TV Type: Direct View CRT Projector LCD/DLP Projector Rear Projection GENERAL SPECIFICATIONS DIGITAL OUTPUT Optical: –15dbmm to –21dbm Coaxial: 0.5V p-p/75 ohm DIGITAL SIGNAL FORMAT Sampling Frequencies: 44,100Hz, 48,000Hz & 96,000Hz TRANSPORT Laser Beam Wavelength: 658nm/790nm Laser Power: CLASS IIa/CLASS I Power requirements 120 Volts, 50/60Hz at 30 watts Dimensions: (H x W x D) inch: 5 3⁄8" x 17 1⁄2" x 15" cm: 13.7 x 44.5 x 38.1 Includes clearance for connectors. Panel clearance required in front of mounting panel is 3⁄4" (1.9cm) Note: when DVD/CD tray is opened, the panel clearance required in front of mounting panel is 6 3⁄4" (17.2cm) Weight 20 lbs. (9.1Kg) net 34 lbs. (15.4Kg) shipping 9.02.MCD205.20k.MSP 35001700 The MVP851 has balanced outputs for the left and right channels when playing an audio CD. When a multichannel DVD disc is playing, the balanced left and right outputs contains a mix-down of the multi- channel sound.
