McIntosh MSE 1 Brochure

Extracted text from McIntosh MSE 1 Brochure (Ocr-read)


Page 1

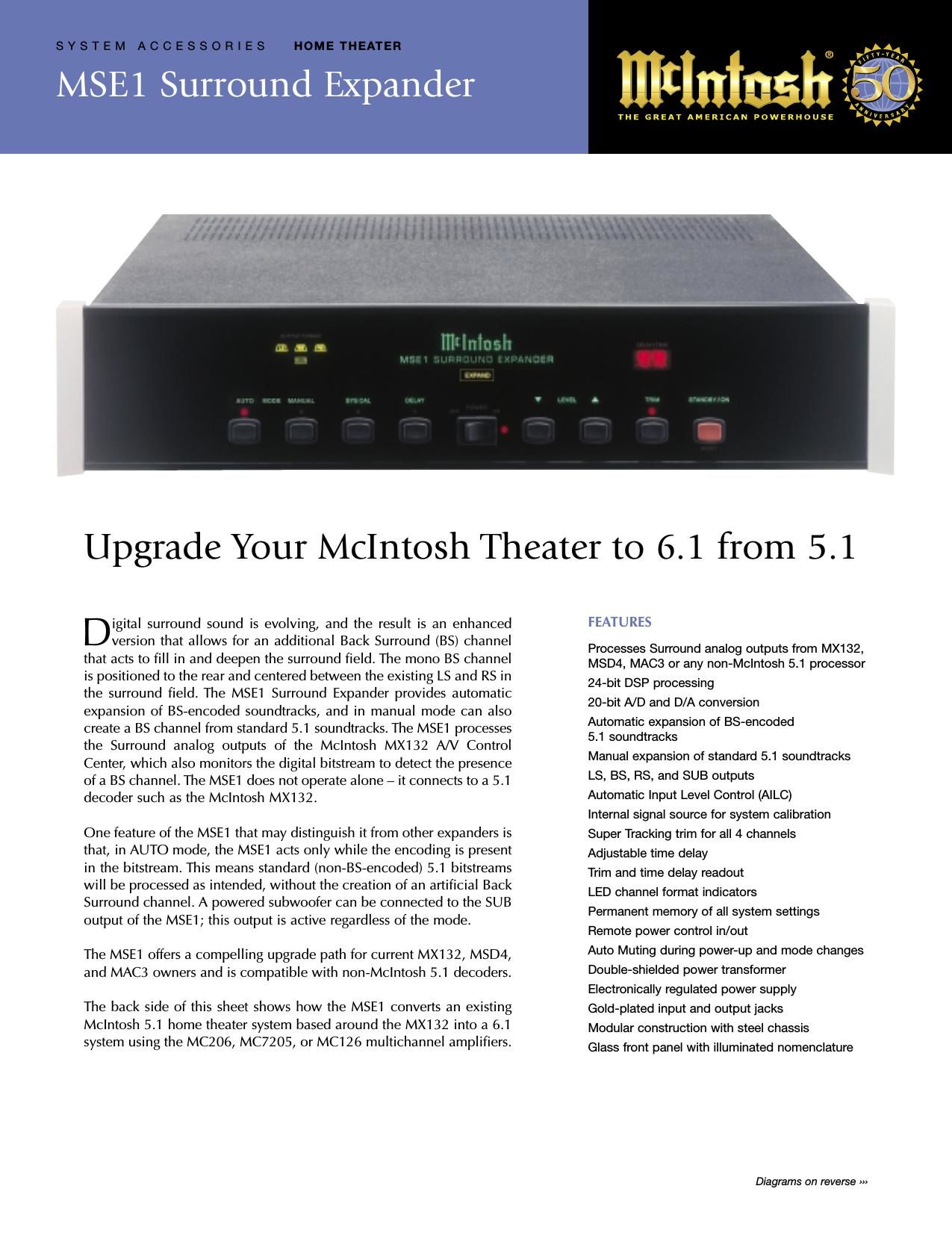

McIntosh Laboratory, Inc., 2 Chambers Street, Binghamton, NY 13903 tel (607) 723–3512 -toll-free (888) 979–3737 -fax (607) 772–3308 -www.mcintoshlabs.com MSE1 Surround Expander 1200.A-MSE1.15k.essecomm Related Products Operating Notes SYSTEM ACCESSORIESHOME THEATER BS-ENCODED 5.1 MSE1 AUTO or MANUAL Mode- decodes and outputs LS/BS/RS channels STANDARD 5.1 MSE1 AUTO Mode- no BS channel - LS/RS pass through unchanged STANDARD 5.1 MSE1 MANUAL Mode- creates artificial BS channel from LS + RS Using the MSE1 with the MX132 and MC206 or MC126 Using the MSE1 with the MX132 and MC7205 In this setup, the MC206 or MC126 powers the ALL channels. The MSE1 processes and outputs the LS and RS signals. When the BS channel is active, it is powered by the remaining sixth channel of the MC206 or MC126. A powered sub can be connected to the SUB output of the MSE1. This output, which is an option provided by McIntosh, is active regardless of the mode. In this setup, the MC7205 powers the L/C/R/LS/RS channels. The MSE1 processes and outputs the LS and RS signals. When the BS channel is active, it is powered by an additional amplifier, such as the McIntosh MC162. (Note: Its OK to use both channels of a stereo amp and therefore have two BS speakers.) A powered sub can be connected to the SUB output of the MSE1. This output, which is an option provided by McIntosh, is active regardless of the mode. POWERED SUB (MAIN) POWERED SUB (SURROUND) TO AN ADDITIONAL AMPLIFIER SUCH AS McINTOSH MC162 MX132 DATA CONTROL LCR LS LS RS BS RS MC7205 MSE1MX132 DATA OUTPUT POWERED SUB (MAIN) POWERED SUB (SURROUND) MX132 DATA CONTROL LCR LS LSBSRS RS MC206 or MC126 MSE1MX132 DATA OUTPUT MSD4 processor MX132 processor MC7205 5-ch amp MC206 6-ch amp MC126 6-ch amp MVP841 DVD player
