McIntosh MS 750 Service Manual
This is the 12 pages manual for McIntosh MS 750 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh MS 750 Service Manual (Ocr-read)

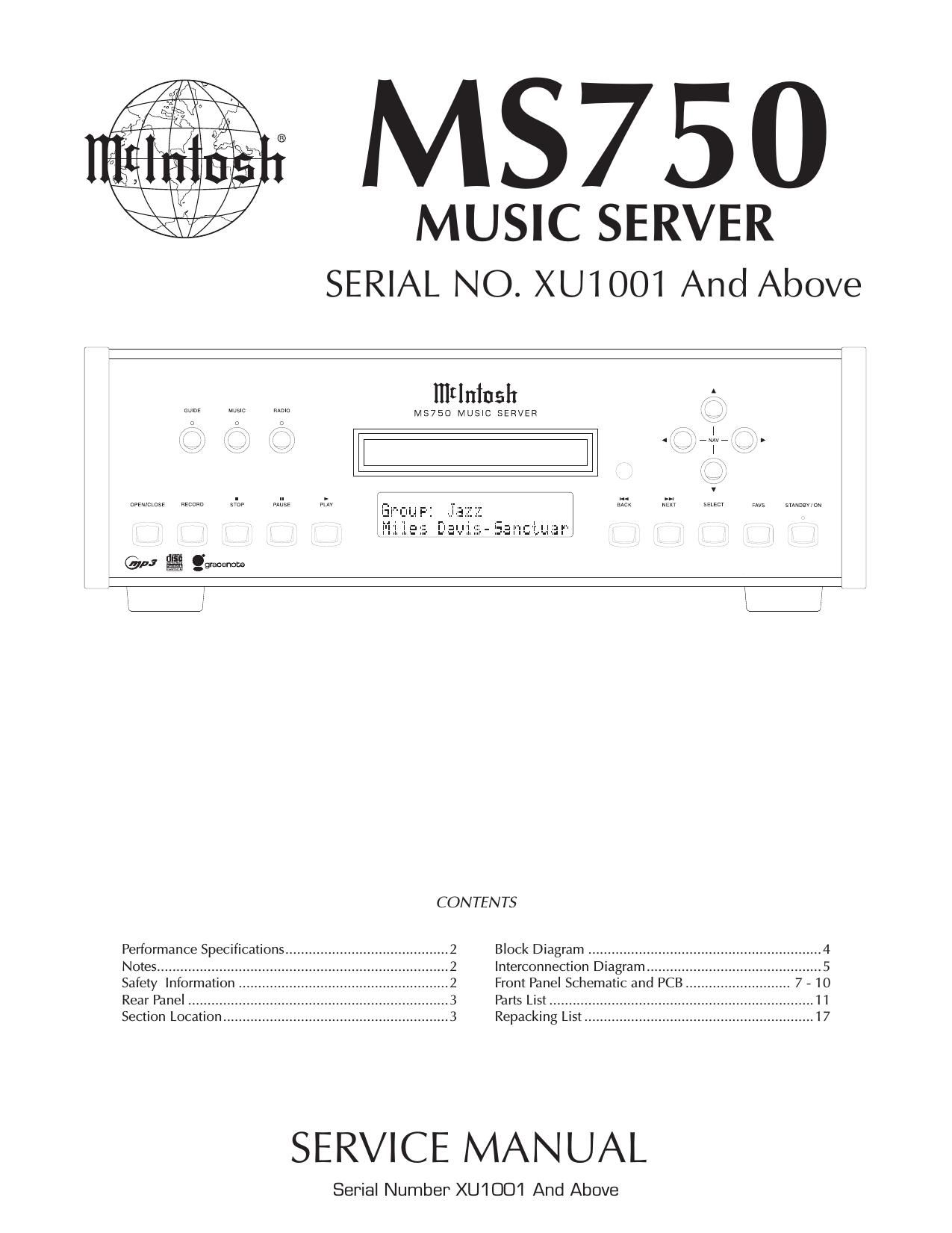

Page 1
2 1. Unless otherwise noted, all voltages indicated on the schematics are measured under the following conditions: a. AC input at 120 volts, 50/60Hz. b. All voltages are +/-10% with respect to ground. A high impedance (10 megaohm) voltmeter must be used. 2. Unless otherwise specifi ed: a. Resistor values are in ohms. b. Capacitor values are microfarads (uF). c. Inductor values are in microhenries (uH) 3. On PC board drawings, Square pad indicates: a. Polarized Capacitors - Positive b. Diodes - Cathode c. Others - Pin 1 4. WARNING Parts marked with the symbol have critical characteristics. Use only replacement parts recom- mended by the manufacturer. 5. Use McIntosh Remote Control Model HR063 with the MS750. NOTES SAFETY INFORMATION PERFORMANCE SPECIFICATIONS CAUTION: Invisible Laser Radiation when open. DO NOT stare into the beam or view directly with optical instruments. Use of controls or adjustments or performance of procedures other than those specifi ed in the Owners Manual may result in Hazardous Radiation Exposure. Servicing of laser mechanism is to be performed at the service facility at McIntosh Laboratory Inc. This product incorporates an embedded CLASS 3B Laser (IEC60825-1) . Digital Signal Format – Sa mpling Frequency: 44.1kHz Power Requirements 100 Volts, 50/60Hz at 60 watts 110 Volts, 50/60Hz at 60 watts 120 Volts, 50/60Hz at 60 watts 220 Volts, 50/60Hz at 60 watts 230 Volts, 50/60Hz at 60 watts 240 Volts, 50/60Hz at 60 watts Note Refer to the rear panel of the MS750 for the correct voltage. Overall Dimensions Width is 17-1/2 inches (44.45cm) Height is 6 inches (15.24cm) Depth is 15-7/8 inches (40.32cm) Note When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm). We i g ht 28.1 pounds (12.8Kg) net, 44.5 pounds (20.2Kg) in shipping carton Shipping Carton Dimensions Width is 26-1/2 inches (67.3cm) Depth is 24-1/4 inches (62.2cm) Height is 11-3/4 inches (29.9cm) Audio Speci fi cations Output Level – 2.0Vrms Output Impedance – 200 ohms Audio Frequency Response – 2Hz to 22,000Hz ±1dB Signal to Noise Ratio – 102dB (IHF A-Weighted) Dynamic Range – 96dB Harmonic Distortion – 0.01% Channel Separation – 95dB (1,000Hz) Video Specifi cations Signal System – NTSC/PAL Component Video Output Level Y Output Level 1.0Vp-p (75 OHM) P B/CB Output Level 0.648Vp-p (75 OHM) P R/CR Output Level 0.7Vp-p (75 OHM) S-Video Y Output Level – 1Vp-p (75 OHM) S-Video C Output Level – 0.286Vp-p (75 OHM) (NTSC) Composite Video Output Level – 1Vp-p (75 OHM) General Specifi cations Digital Output Optical: -15dbm to -21dbm Coaxial: 0.4V p-p to 0.6V p-p /75 ohm COMPLIES WITH DHHS RULES 21 CFR 1040.10 AND 1040.11
Page 2
REAR PANEL SECTION LOCATIONS TOP VIEW WITH COVER REMOVED MS750 3
