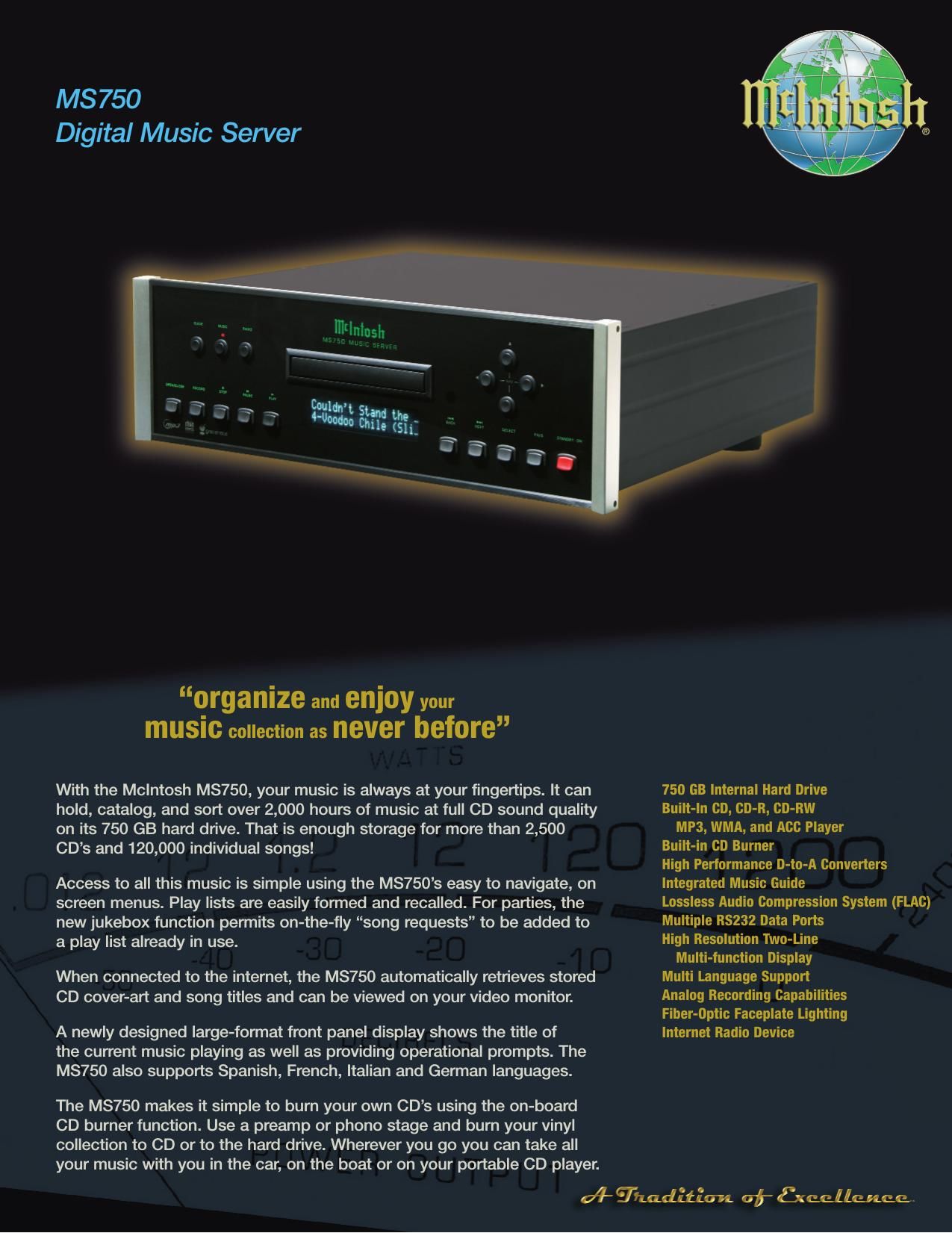

McIntosh MS 750 Brochure

Page 1

For the Consumers Protection: In order to ensure the highest level of customer satisfaction, newMcIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be usedand do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. 5.07.MS750.20K 35009400 McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699 Tel (607) 723-3512 - US Toll-Free (800) 538-6576 - Fax: (607) 724-0549 - www.mcintoshlabs.com MS750 Music Server HUGE 750GB HARD DRIVE AND INTEGRATED WEB INTERFACE CAPABILITIES Store over 2,500 CDs, more than 2,100 hours of music, with full Compact Disk audio quality. FREE LOSSLESS AUDIO COMPRESSION (FLAC) The FLAC encoding and decoding used by the MS750 eliminates the inherent loss of data common in MP3 compression. FLAC encoding yields CD-quality archival storage. MUSIC IN OTHER ROOMS Ethernet web interface for remote control and music streaming via any standard web browser equipped device. FRONT PANEL DESIGN McIntosh glass panels do more than look great. Long-life fiber- optic back-lighting makes operation easy in low light. The MS750 also features milled aluminum side panels and fully engineered steel chassis components for quiet, stable, long life operation. COMPANION PRODUCTS The C46 Audio Control Center and MC402 Power amplifier are logical companion products for the MS750. Your Authorized Dealer can provide additional information on other McIntosh product combinations. AUDIO SPECIFICATIONS FREQUENCY RESPONSE 2Hz – 22kHz + 1dB SIGNAL-T0-NOISE RATIO (IHF A-WEIGHTED) 102dB DYNAMIC RANGE 96dB HARMONIC DISTORTION 0.01% CHANNEL SEPARATION95dB (1kHz) OUTPUT LEVEL2.0 Vrms OUTPUT IMPEDANCE200 ohms VIDEO SPECIFICATIONS SIGNAL SYSTEM NTSC, PAL OUTPUT IMPEDANCE75 ohms SUPPORTED AUDIO FORMATSEncode: FLAC. MP3 Decode: PCM,FLAC, MP3,WMA,ACC SUPPORTED MUSIC CHANGERSSony DVD-CX777ES CD Changer HOURS OF MUSIC STORAGE FLAC- 2125 Hours MP3 @ 320KB- 5060 Hours MP3 @ 192KB- 8434 Hours MP3 @ 160KB- 10,121 Hours MP3 @ 128 KB- 12,651 GENERAL SPECIFICATIONS DIGITAL OUTPUT Optical: -15dbm to -21dbm Coaxial: 0.4V p-p to 0.6V p-p/75 ohms DIGITAL SIGNAL FORMATSampling Frequency: 44.1kHz POWER REQUIREMENTS100 – 240 Volts, 50/60Hz at 60 watts OVERALL DIMENSIONS (H x W x D)6" (15.2 cm) x 17-1/2" (44.5cm) x 15-3/8" (40.3cm) WEIGHT28 lbs. (12.8 kg) net, 44.5 lbs. (20.2kg) Navigation through menus is uncomplicated when using an optional 3rd party monitor interface that makes it simple to find and play any song, album, play list or artist in the collection.
