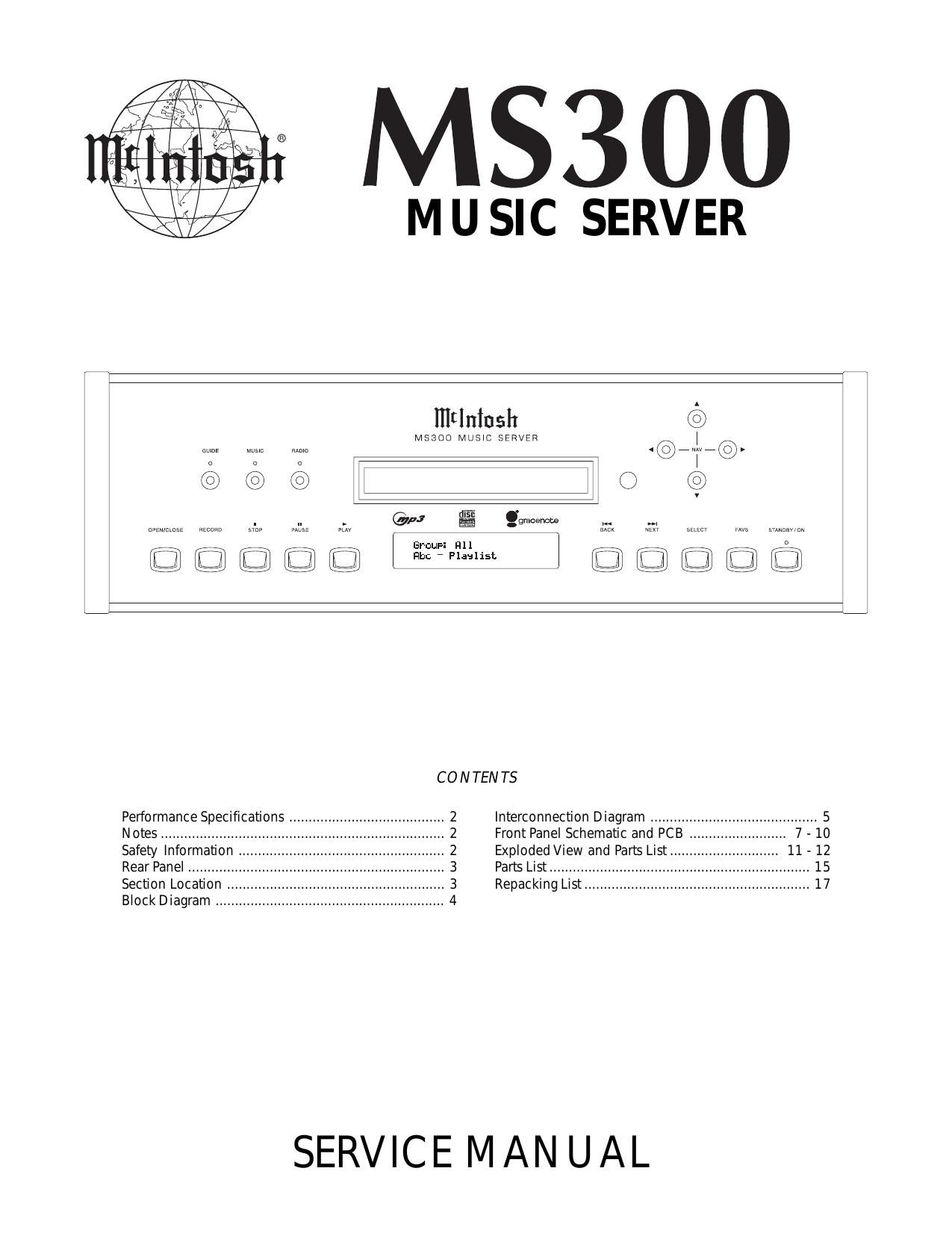

McIntosh MS 300 Service Manual
This is the 14 pages manual for McIntosh MS 300 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh MS 300 Service Manual (Ocr-read)
Page 1
2 Specifications are subject to change without notice. Please check the McIntosh web site for any changes to the specifications. Audio Specifications Frequency Response: 2 – 20,000Hz, +/-1 dB Signal to Noise Ratio: 102dB (IHF A-Weighted) Dynamic Range:96dB Harmonic Distortion:0.01% Channel Separation:95dB (1,000Hz) Output Level:2.0 Vrms Output Impedance:200 ohms Video Specifications Signal System: NTSC, PAL (Factory Option) Output Impedance: 75 ohm General Specifications Digital Output Optical: -15dbm to -21dbm Digital Output Coaxial: 0.4Vpp to 0.6Vpp/75 ohm Digital Signal Format: 44.1kHz Sampling Frequency Power Requirements: 100-240 Volts, 50-60Hz at 60 watts Overall Dimensions: Width is 17-1/2 inches (44.45cm) Height is 5-3/8 inches (13.69cm) Depth is 15 inches (38.1cm) Note: When the disc tray is Opened, the panel clearance required in front of mounting panel is 5-1/4 inches (13.3cm) Weight: 20.7 pounds (9.4Kg) net, 37.2 pounds (16.9Kg) in shipping carton 1. Unless otherwise noted, all voltages indicated on the schematics are measured under the following conditions: a. AC input at 120 volts, 50/60Hz. b. All voltages are +/-10% with respect to ground. A high impedance (10 megaohm) voltmeter must be used. 3. Unless otherwise specified: a. Resistor values are in ohms. b. Capacitor values are microfarads (uF). c. Inductor values are in microhenries (uH) . 4. On PC board drawings, Square pad indicates: a. Polarized Capacitors - Positiveb. Diodes - Cathode c. Others - Pin 1 5.WARNING Parts marked with the symbol have critical characteristics. Use only replacement parts recom- mended by the manufacturer. 6. Use McIntosh Remote Control Model HR053 with the MS300. 7. See Advanced Users Guide for Keyboard (050202) operation. NOTES SAFETY INFORMATION PERFORMANCE SPECIFICATIONS CAUTION: Invisible Laser Radiation when open. DO NOT stare into the beam or view directly with optical instruments. Use of controls or adjustments or performance of procedures other than those specified in the Owners Manual may result in Hazardous Radiation Exposure. This product incorporates an embedded CLASS 3B Laser (IEC60825-1).
Page 2
REAR PANEL SECTION LOCATIONS TOP VIEW WITH COVER REMOVED MS300 3
Page 6
7 MS300 FRONT PANEL 050177 11 8
