McIntosh MR 88 Brochure

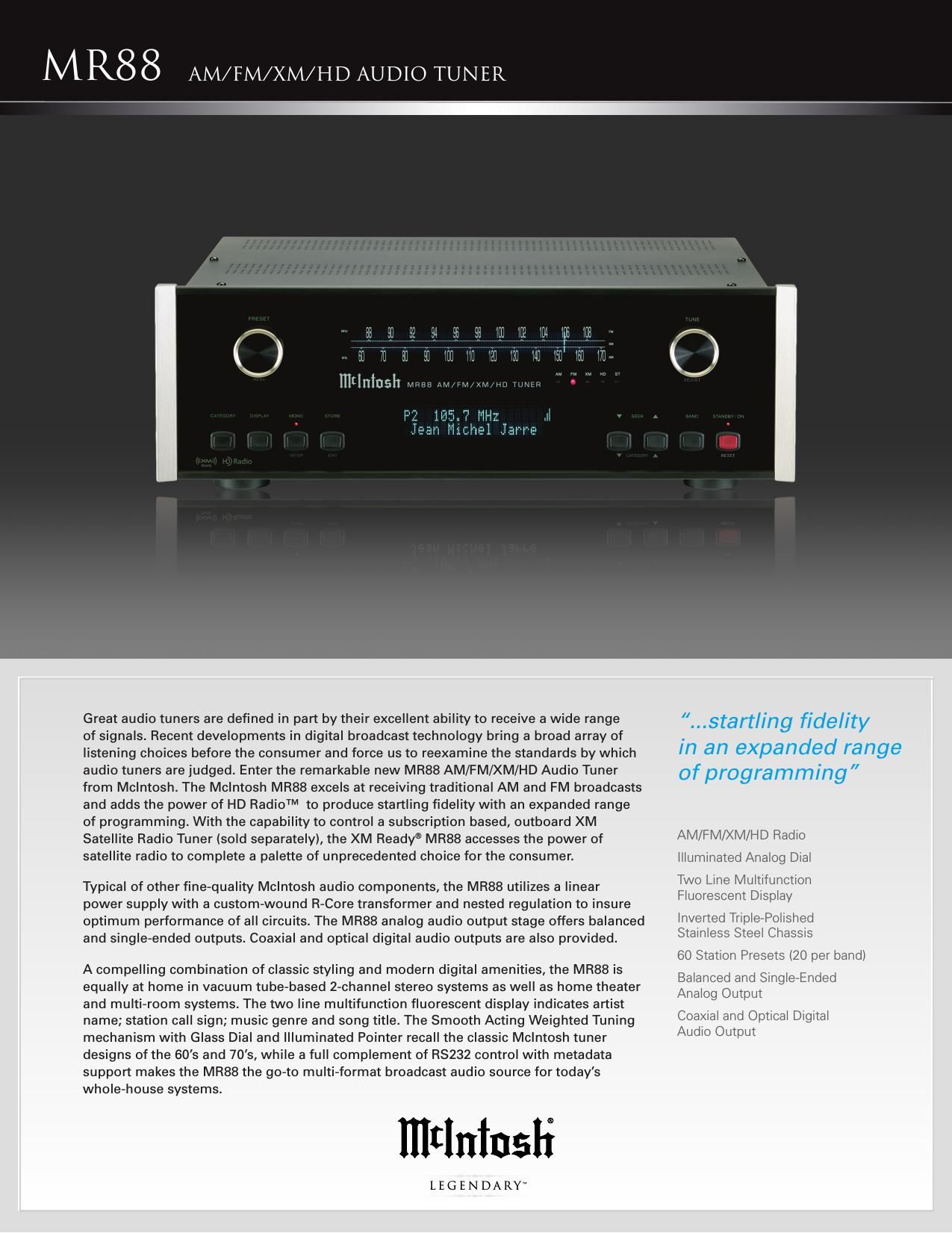

Page 1

www.mcintoshlabs.com 35011400 MR88 To experience the legendary performance of McIntosh, please call on us at\ 1-800-538-6576 MR88 AM/FM/XM/HD audio tuner FM HD RaDio SpeciFicationS SenSitivity-85dBm Signal to noiSe Ratio85dB FRequency ReSponSe20 to 20,000Hz HaRMonic DiStoRtion0.1% SteReo SepaRation80dB FM analog SpeciFicationS uSeable SenSitivity1.6uV (15.2dBf) 50Db quieting SenSitivity1.8uV (16.2dBf) Signal to noiSe RatioMono: 75dB; Stereo: 72dB FRequency ReSponSe20 to 13,000Hz HaRMonic DiStoRtionMono: 0.1%; Stereo: 0.4% cHannel Selectivity65dB Adjacent Channel 74dB Alternate Channel SteReo SepaRation35dB aM HD RaDio SpeciFicationS Signal to noiSe Ratio85dB FRequency ReSponSe20 to 15,000Hz HaRMonic DiStoRtion0.1% SteReo SepaRation75dB aM analog SpeciFicationS SenSitivity550uV/m Signal to noiSe Ratio45dB FRequency ReSponSe100 to 3,500Hz HaRMonic DiStoRtion0.25%, 80% Modulation Selectivity 50dB Adjacent Channel geneRal SpeciFicationS FM tuning Range anD cHannel Spacing87.5MHz - 107.9MHz; 200kHz FM antenna input75 ohms, Type F Coax connector aM tuning Range anD cHannel Spacing530kHz - 1710kHz; 10kHz SupeRb Digital aM/FM/XM/HD tuneR All-digital topology offers superior dynamic range for near-CD quality FM HD radio decoding. SMootH-acting, WeigHteD tuning MecHaniSM WitH aniMateD Dial pointeR The smooth flywheel spin of the tuning mechanism makes the MR88 fun to use. XM ReaDy ® The great satellite radio programming you enjoy in the car, now playing on your McIntosh system. (XM Satellite Tuner and subscription sold separately.) FoR tHe conSuMeRS pRotection In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the- counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. XM, SIRIUS and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All rights reserved. Service not available in alaska and Hawaii HD Radio™ and the HD Radio logo are proprietary trademarks of iBiquity Digital Corp. RateD output1Vrms Unbalanced, 2Vrms Balanced output iMpeDance100 ohms Unbalanced or Balanced Digital outputOptical: - 15dbm to -21dbm (PCM Coaxial: 0.5V p-p/75 ohm (PCM) Sampling Frequency: 48kHz (PCM) aM antenna inputBalanced, RJ45 connector (for use only with supplied McIntosh RAA2 Remote AM Antenna) Raa2 ReMote aM antenna oveRall DiMenSionSWidth is 6" (15.24cm) Height is 2-1/2" (6.35cm) Depth is 1-1/2" (3.81cm) poWeR RequiReMentS110V ~ 50/60Hz at 30 watts 120V ~ 50/60Hz at 30 watts 220V ~ 50/60Hz at 30 watts Standby, less than 0.5 watt Note: Refer to the rear panel of the MR88 for the correct voltage. oveRall DiMenSionSWidth is 17-1/2" (44.45cm) Height is 6" (15.24cm) including feet Depth is 18" (45.72cm) including the Front Panel, Knobs and Cables WeigHt25.5 lbs. (11.6 kg) net, 40 lbs. (18.1 kg) in shipping carton SHipping caRton DiMenSionSWidth is 26-1/2" (67.3cm) Depth is 24-1/4" (62.2cm) Height is 11-3/4" (29.9cm)
