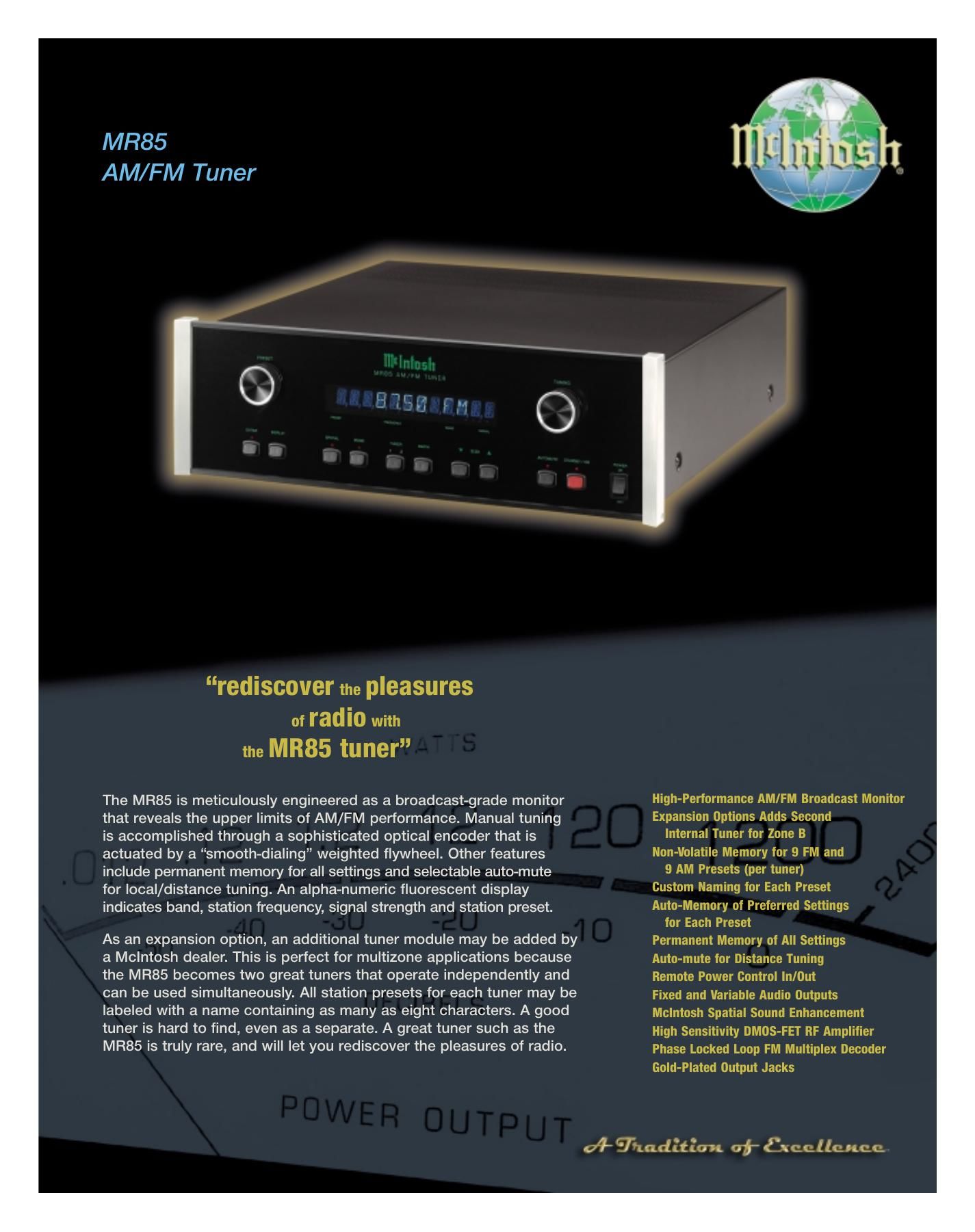

McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699 Tel (607) 723-3512 - US Toll-Free (800) 538-6576 - Fax: (607) 724-0549- www.mcintoshlabs.com For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced. MR85 AM/FM Tuner Dual-Tuner Operation As an expansion option, a McIntosh Dealer may add an additional tuner module. This is ideal for multizone systems, because it creates two tuners that can be used simultaneously. Weighted Flywheel For Manual Tuning An optically encoded weighted flywheel for dialing in stations, reminiscent of the smooth-acting flywheel found in classic McIntosh tuners. Custom Naming All station presets for each tuner may be labeled with a name containing as many as 8 characters. For example, FM preset 1 could be re- named JAZZ 1 or WHRW. Spatializer Enhancement This circuit can expand the sound field for FM stations that have poor separation, or it can provide a pseudo-stereo effect for AM stations. DMOS-FET RF Amplifier This circuit provides very high sensitivity with ultra-low distortion. Linear Phase, Piezoelectric If Filters Never requiring adjustment, these filters – together with the associated IF amplifier – provide more than 120dB of gain and selectivity greater than 90dB. FM TUNER SPECIFICATIONS USEABLE SENSITIVITY 14dBf (1.4uV across 75 ohms) 50dB QUIETING SENSITIVITY Mono: 19dBf (2.4uV across 75 ohms) Stereo: 35dBf (15uV across 75 ohms) SIGNAL-TO-NOISE RATIO Mono: 75dB Stereo: 70dB FREQUENCY RESPONSE Mono: 20Hz to 15kHz, +0/-1dB Stereo: 20Hz to 15kHz, +0/-1dB HARMONIC DISTORTION Mono: 0.3% at 100Hz, 1kHz and 10kHz Stereo: 0.45% at 100Hz and 1kHz; 0.65% at 10kHz INTERMODULATION DISTORTION Mono: 0.25% Stereo: 0.45% CAPTURE RATIO 1.2dB ALTERNATE CHANNEL SELECTIVITY 75dB SPURIOUS RESPONSE 100dB IMAGE RESPONSE 75dB RF INTERMODULATION 65dB STEREO SEPARATION 45dB at 100Hz and 1kHz 35dB at 10kHz SCA REJECTION 65dB 10.03.MR85.20k.JCP 35003700.RevA AM TUNER SPECIFICATIONS SENSITIVITY 20uV (external antenna input) SIGNAL-TO-NOISE RATIO 48dB at 30% modulation 58dB at 100% modulation FREQUENCY RESPONSE Mono: 20Hz to 15kHz, +0/-1dB Stereo: 20Hz to 15kHz, +0/-1dB HARMONIC DISTORTION 0.5% max at 50% modulation FREQUENCY RESPONSE 50Hz to 6kHz NRSC ADJACENT CHANNEL SELECTIVITY 45dB minimum IHF IMAGE REJECTION 65dB min, 540 kHz to 1600kHz IF REJECTION 80dB minimum GENERAL RATED OUTPUT 1.2V Fixed 0-1.2V Variable OUTPUT IMPEDANCE Less than 100 ohms POWER REQUIREMENTS 120V 50/60Hz, 20W OVERALL DIMENSIONS (H X W X D) 5 3/8" (13.8 cm) x 17 1/2" (44.5 cm) x 17 1/2" (44.5 cm) WEIGHT 25.5 lbs. (11.6 kg) net 43 lbs. (19.5 kg) boxed
