McIntosh MQ 102 Service Manual
This is the 8 pages manual for McIntosh MQ 102 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh MQ 102 Service Manual (Ocr-read)
Page 1

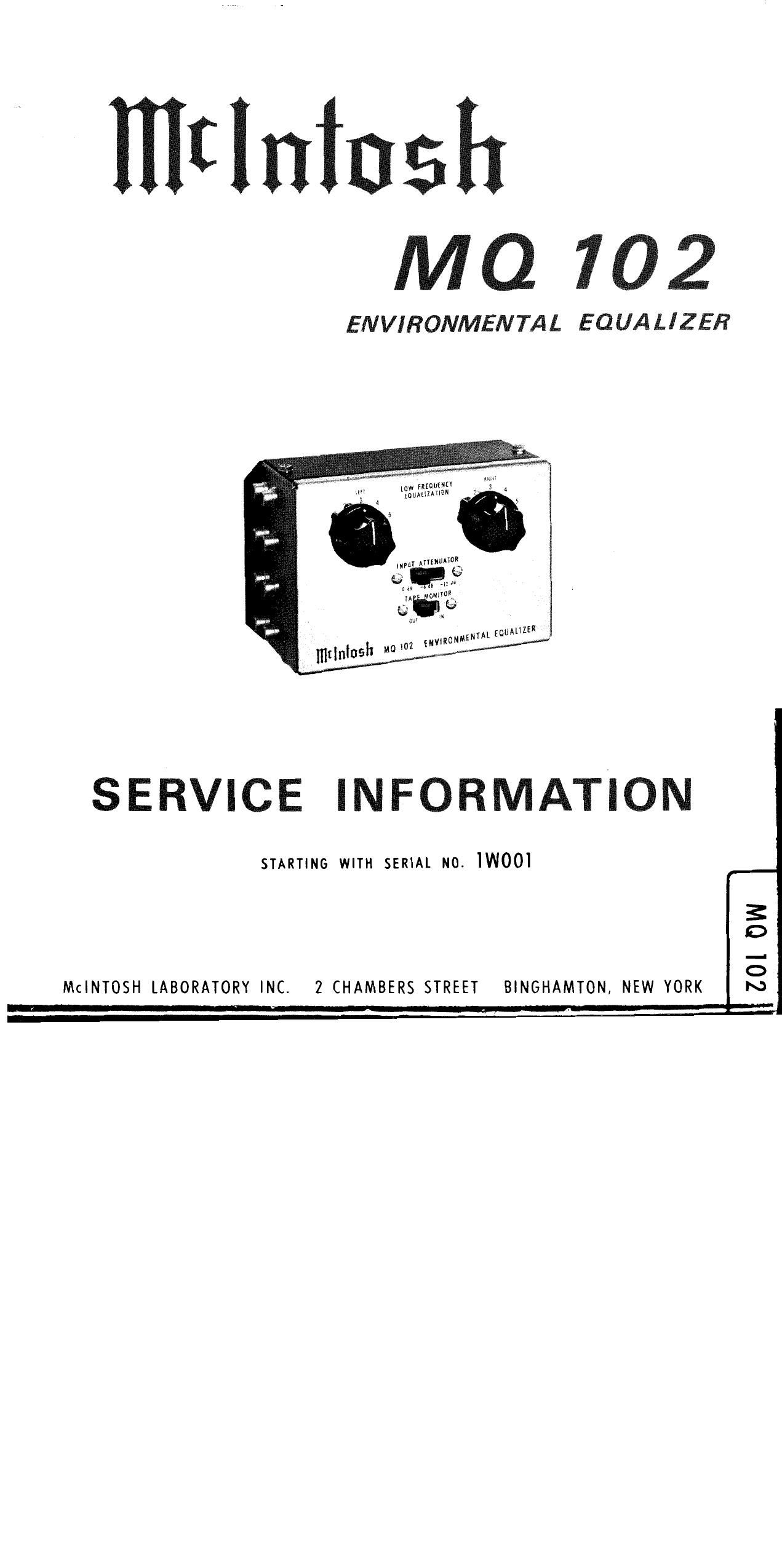

IIItInfush
MO 102
ENVIRONMENTAL EOUA LIZER
SERVICE INFORMATION
STARTING WITH SERIAL N0. IWOO]
McINTOSH LABORATORY INC. 2 CHAMBERS STREET BINGHAMTON, NEW YORK
Page 2
M0 I02 ELECTRICAL SPECWICATIONS
FREQUENCY RESPONSE
:O.5dB from 20Hz to Z0,000HZ (with equalization switches
in position I).
DISTORTION
Less than O.l% at rated output level, 20Hz to 20,000H2.
HUM AND NOISE
Less than 85dB below rated output (IkOuV).
INPUT SENSITIVITY AND IMPEDANCE
Main and tape input 2.5 volts at 75kQ for rated output at IOOOHz.
INPUT ATTENUATOR
Switched OdB, -6dB, or -l2dB. .
OUTPUT
Main: 2.5 volts Into h7kQ or greater load, 20Hz to 20,000Hz.
Tape: 2.5 volts with rated input.
LOW FREQUENCY EQUALIZATION
0 t0 +I7dB at ZOHZ in steps (0, +6, +10, +lh, +l7dB in positions
I: 2, 3, A, 5 respectively.)
POWER REQUIREMENT
I20 volts, SO/6OH2, h watts
