McIntosh MP 1100 Brochure

Page 1

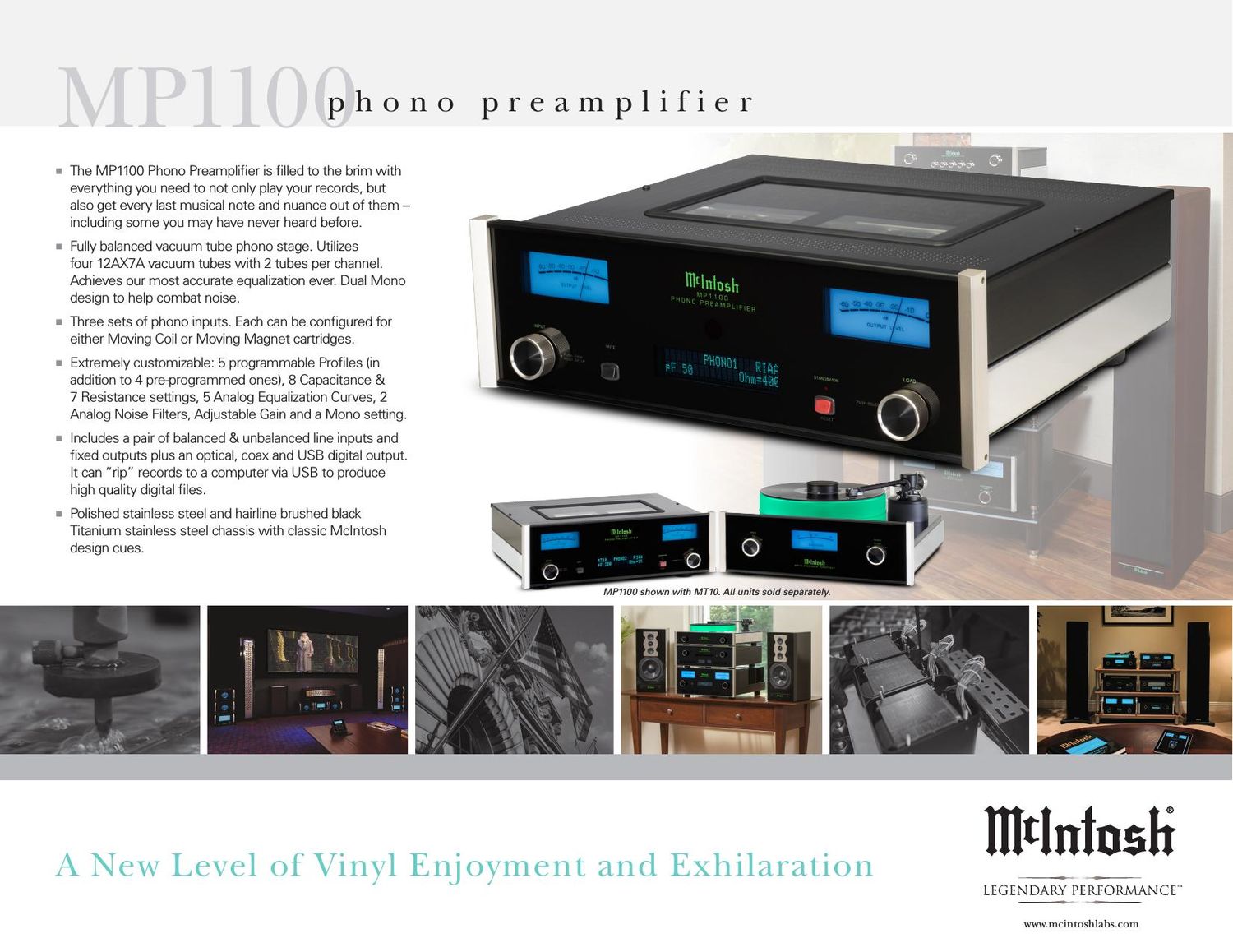

www.mcintoshlabs.com Companion Products The MT10 and MT5 Turntables, C1100 Vacuum Tube Preamplifier, MC275 and MC2301 Vacuum Tube Amplifiers and XR100 Loudspeakers are logical companions for the MP1100 Phono Preamplifier. Your Authorized Dealer can provide additional information on other McIntosh product combinations. To learn more, please call us at 1.800.538.6576. 35106100 M P110 0 phono preamplifier Frequency Response: +/-0.2dB from 20Hz to 20kHz+0.2, -3dB from 10Hz to 50kHz Total Harmonic Distortion: Phono: 0.02%High Level: 0.005% Signal to Noise Ratio: MC: 80dB below 0.5mV inputMM: 84dB below 5mV input High Level: 118dB below rated output Inputs:Phono: 3 (2 sets RCA only, 1 set RCA or XLR)High Level: 1 balanced, 1 unbalanced Input Impedance:Resistance: 25, 50, 100, 200, 400, 1k or 47k OhmsCapacitance: 50, 100, 150, 200, 250, 300, 350 or 400pF High Level: Unbalanced: 50k Ohms; Balanced: 100k Ohms Outputs:1 Balanced1 Unbalanced 1 Coax1 Optical1 USB Maximum Output Voltage: Balanced: 20 VrmsUnbalanced: 10 Vrms Overall Dimensions (W x H x D): 17-1/2 (44.5cm) x 6 (15.2m) x 18 (45.7cm) Weight: 26 lbs (11.8 kg) net,40 lbs (18.2 kg) in shipping carton For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased from an Authorized McIntosh Dealer; and, with certain limited exceptions may only be purchased over-the-counter or delivered and installed by the Authorized McIntosh Dealer. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized McIntosh Dealer, or that have had their serial numbers altered or defaced.
