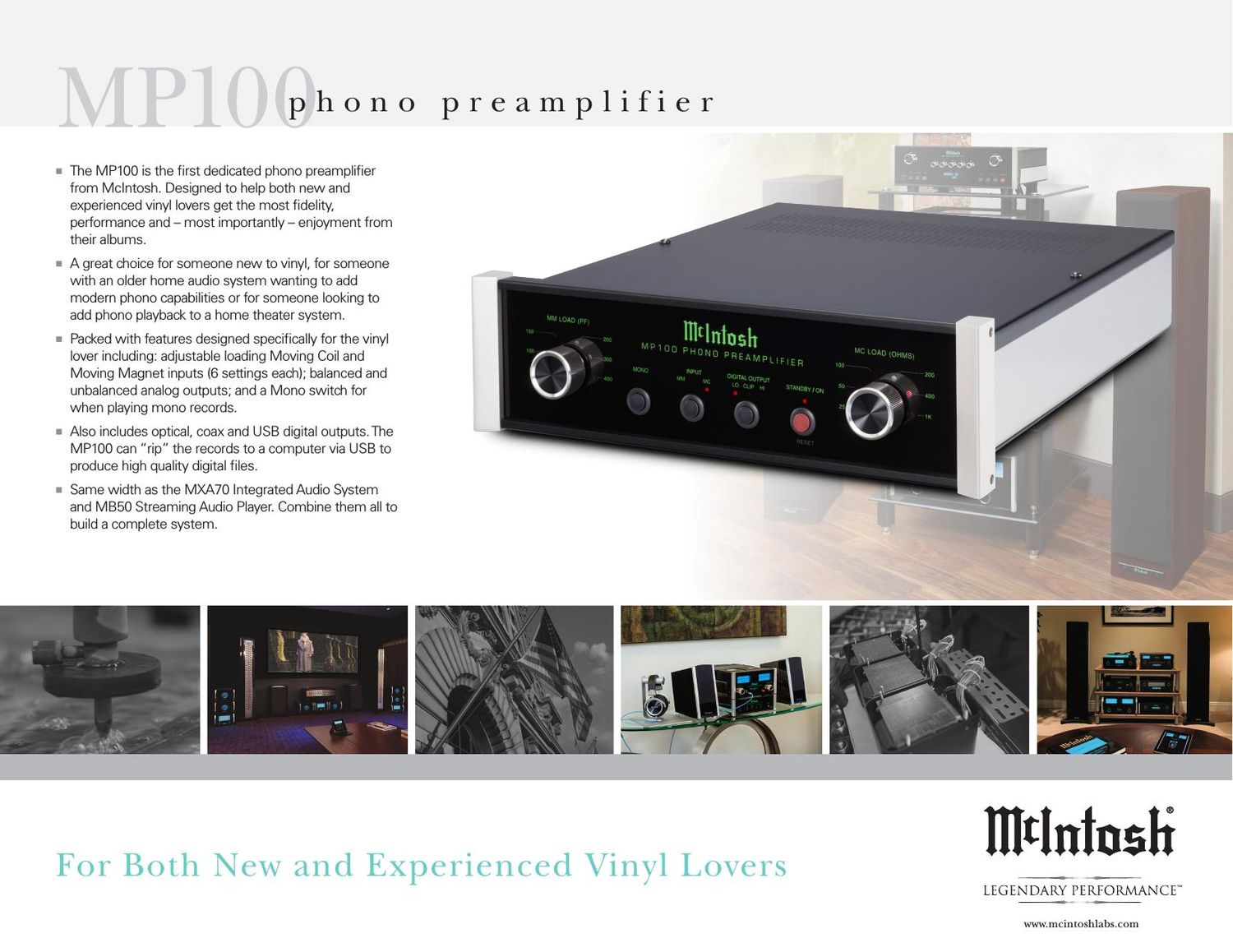

McIntosh MP 100 Brochure

Page 1

www.mcintoshlabs.com Companion Products The MT5 and MT10 Turntables, MXA70 Integrated Audio System and MB50 Streaming Audio Player are logical companions for the MP100 Phono Preamplifier. Your Authorized Dealer can provide additional information on other McIntosh product combinations. To learn more, please call us at 1.800.538.6576. 35104900 M P10 0 phono preamplifier Frequency Response:±0.3dB from 20Hz to 20kHz Total Harmonic Distortion:0.005% Maximum from 20Hz to 20kHz Inputs:1 Moving Coil (adjustable)1 Moving Magnet (adjustable) Input Impedance:Moving Coil: 25, 50, 100, 200, 400 or 1,000 ohms; 470pFMoving Magnet: 50, 100, 150, 200, 300, 400pF; 47K ohms Signal to Noise Ratio:Moving Coil: 78dBMoving Magnet: 80dB Outputs:1 Balanced1 Unbalanced1 Coax1 Optical1 USB Maximum Output Voltage:Balanced: 16 VrmsUnbalanced: 8 Vrms Overall Dimensions (W x H x D):11-1/2(29.2cm) x 3-25/32 (14.9cm) x 16-3/4 (42.5cm) Weight:8.6 lbs (3.9 kg) net,9.6 lbs (4.4 kg) in shipping carton For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased from an Authorized McIntosh Dealer; and, with certain limited exceptions may only be purchased over-the-counter or delivered and installed by the Authorized McIntosh Dealer. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized McIntosh Dealer, or that have had their serial numbers altered or defaced.
