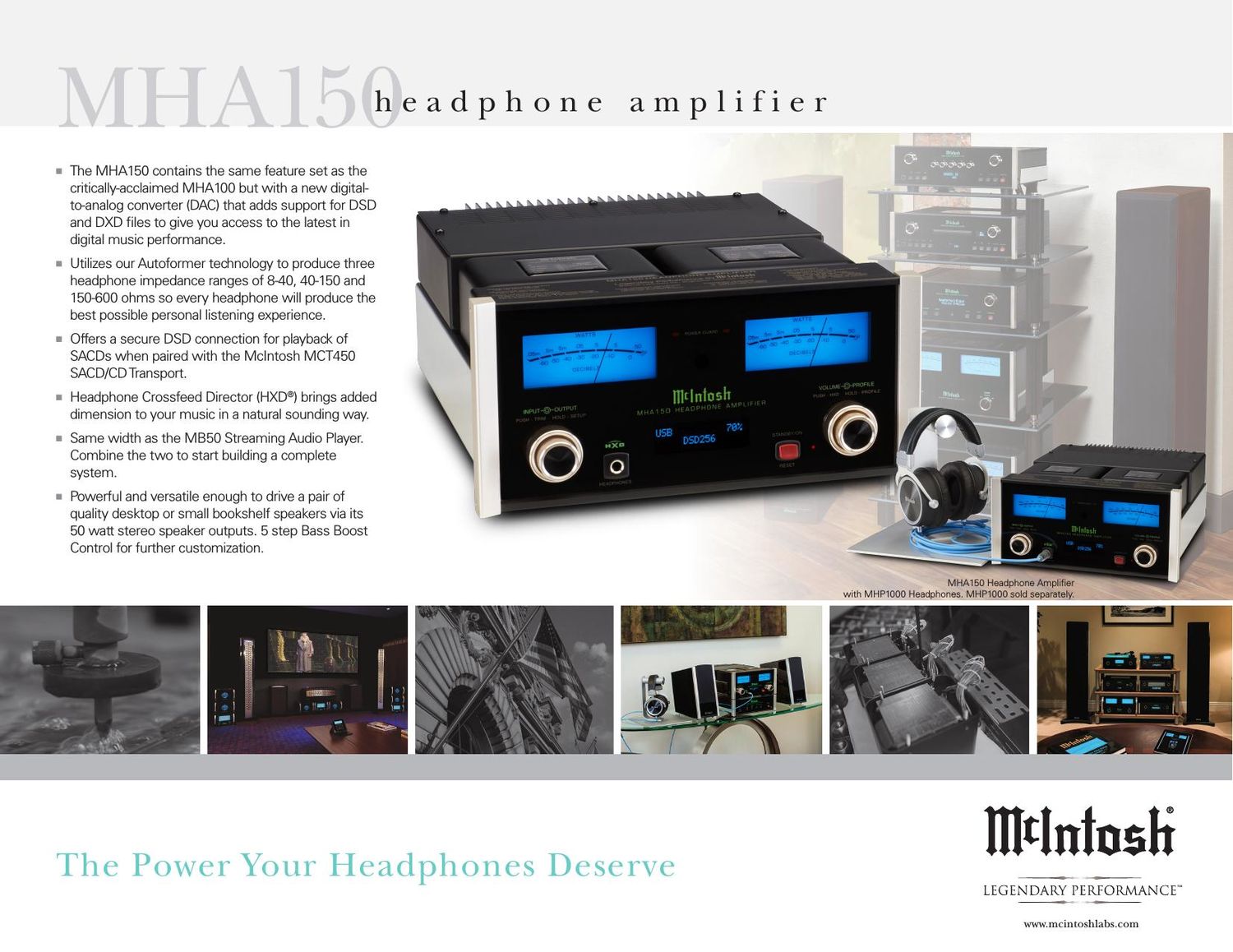

McIntosh MHA 150 Brochure

Page 1

www.mcintoshlabs.com Companion Products The MHP1000 Headphones, MB50 Streaming Audio Player and MCT450 SACD/CD Transport are logical companions for the MHA150 Headphone Amplifier. Your Authorized Dealer can provide additional information on other McIntosh product combinations. To learn more, please call us at 1.800.538.6576. 35104700 M H A150 headphone amplifier Headphone Power Output:High Selection: 1WNormal Selection: 250mW Headphone Output Impedance:8-40 Ohms, 40-150 Ohms, 150-600 Ohms Amplifier Power Output:50 watts per channel with both channels operating into 8 Ohms Total Harmonic Distortion:0.005% maximum from 20Hz to 20kHz Inputs:1 high level unbalanced (stereo)1 high level balanced (stereo)4 digital (see Digital Section) Outputs:1 headphone (1/4)1 preamplifier (stereo)1 set of stereo speaker terminals (8 Ohms) Digital Section:1 Coax1 Optical1 MCT1 USB input accepts PCM signals up to 32-bit/384kHz and supports DSD64, DSD128 and DSD256 plus DXD 352.8kHz and DXD 384kHzMcIntosh Digital Engine is 32-bit/384kHz, USB 2.0 asynchronous Tone Controls:5 Step Bass Boost Control Overall Dimensions (W x H x D):11-1/2(29.2cm) x 5-7/8 (14.9cm) x 18 (45.7cm) including knobs, connectors and cables Weight:26.5 lbs (12 kg) net,32.5 lbs (14.8 kg) in shipping carton For the Consumers Protection: In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased from an Authorized McIntosh Dealer; and, with certain limited exceptions may only be purchased over-the-counter or delivered and installed by the Authorized McIntosh Dealer. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized McIntosh Dealer, or that have had their serial numbers altered or defaced.
