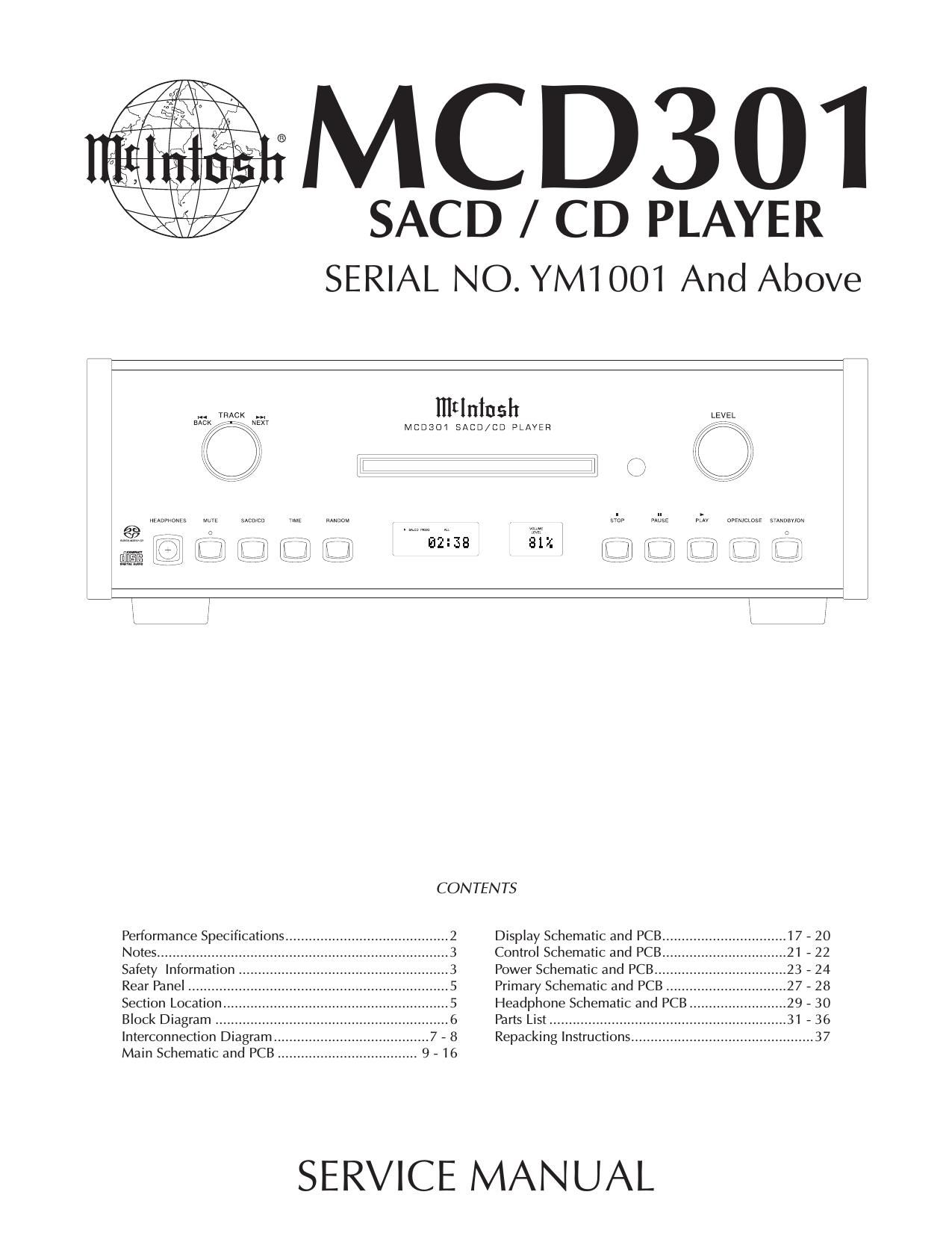

McIntosh MCD 301 Service Manual
This is the 26 pages manual for McIntosh MCD 301 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from McIntosh MCD 301 Service Manual (Ocr-read)
Page 2
PERFORMANCE SPECIFICATIONS
Audio Specifications
Fixed Output level
2.0Vrms Unbalanced
4.0Vrms Balanced
Variable Output level
0 - 6.0Vrms Unbalanced
0- 12.0Vrrns Balanced
Output Impedance
600 ohms Unbalanced and Balanced
Frequency Response
4H2 to 40,000Hz, +0.5, -3dB (SACD)
4H2 to 20,000Hz, i0.5dB (CD)
Signal to Noise Ratio
Better than llOdB (A-weighted)
Dynamic Range
Better than lOOdB
Harmonic Distortion
0.002% @ 1000Hz (SACD)
0.003% @ 1000Hz (CD)
Channel Separation
Better than 98dB (1,000Hz)
General Specifications
Digital Output
Optical: - 15dbm to -21dbm (PCM)
Coaxial: 0.5V p-p/75 ohm (PCM)
Sampling Frequencies: 44, lkHz (PCM)
Transport
Laser Type: Twin Beam
Laser Beam Wavelength: 650nm
(SACD)/790nm (CD)
Laser Power: CLASS Ila/CLASS I
Power Requirements
100 Volts, 50/60Hz at 35 watts
110 Volts, 50/60Hz at 35 watts
120 Volts, 50/60Hz at 35 watts
220 Volts, 50/60Hz at 35 watts
230 Volts, 50/60Hz at 35 watts
240 Volts, 50/60Hz at 35 watts
Standby: Less than 1 watt
Note: Refer to the rearpanel (thhe MCD301fiJr the
correct voltage.
Overall Dimensions
Width is 17-1/2 inches (44.45crn)
Height is 6 inches (15.24cm)
Depth is 16-1/2 inches (41 .91cm)
Note: When the Disc Tray is opened, the panel
L'Iearance required infrnnt ofmmmtirtgpanel is 6-3/4
inches (17.2cm).
Weight
28.2 pounds (12.8Kg) net, 44.6 pounds
(20.2Kg) in shipping carton
Shipping Carton Dimensions
Width is 26-1/2 inches (673cm)
Depth is 24-1/4 inches (62.20m)
Height is 11-3/4 inches (29.9cm)
